Single Line Scan Camera

7μm x 7μm 5.6μm x 5.6μm 3.5 μm x 3.5 μm Specifications Order Now!

Single Line Scan Camera With 7μm x 7μm Pixel Size

These single line scan cameras feature single line CMOS, and 7μm x 7μm pixel size .Our products have been applied to inspections of print,package,docment scanning,logistics sorting,lithium battery and solar panel.

Feature

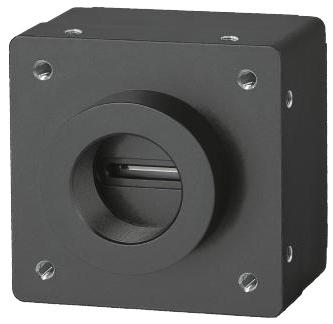

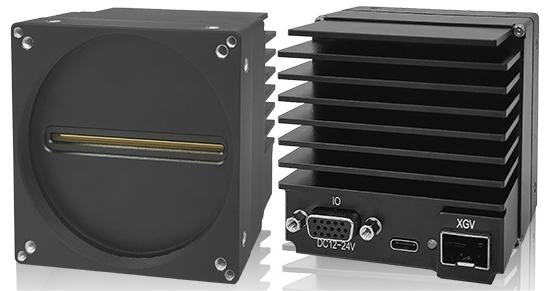

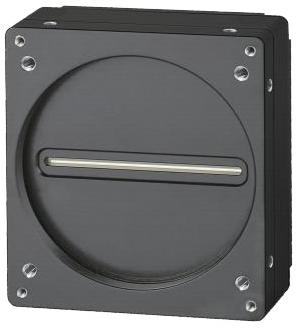

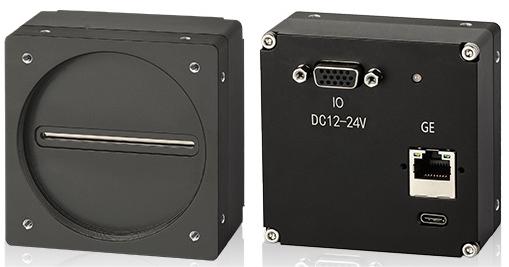

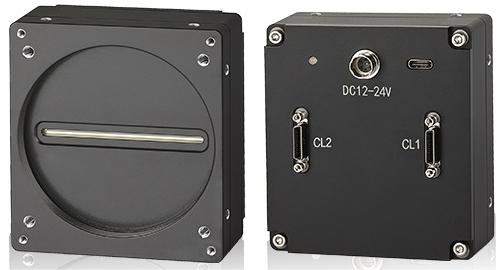

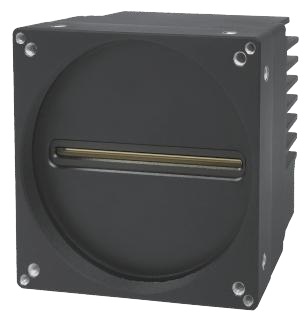

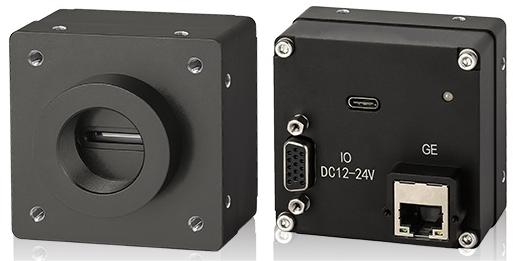

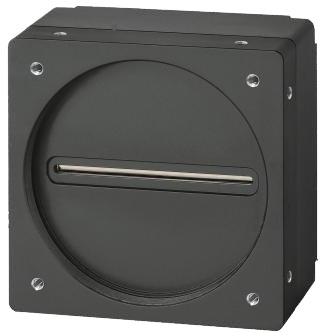

STA8KCL-80KM	STA8KXGV-80KM	STA2KGV-8OK STA8KGV-45KM
-Global shutter CMOS -Camera link interface and LUT -Horizontal binning:2x1 -High sensitivity and low noise -Serial port control/GUI configuration tool optional	-Global shutter CMOS -GigE vision interface -High sensitivity and low noise -Biming and GUI configuration tool -SFP+compatible with optical/electrical port	-Global shutter CMOS -GigE vision interface -High sensitivity and low noise -LUT/FFC

Application

STA2KGV-8OKM / STA8KGV-45KM / STA8KCL-80KM

-Print and package inspection

-Docment scanning/logistics sorting

-Food and medicine inspection

-Plate and web inspection

TA8KXGV-80KM

-Printed circuit board inspection

-Flat panel display inspection

-Lithium battery/Solar panel inspection

-Semiconductor inspection

-Plate and web inspection

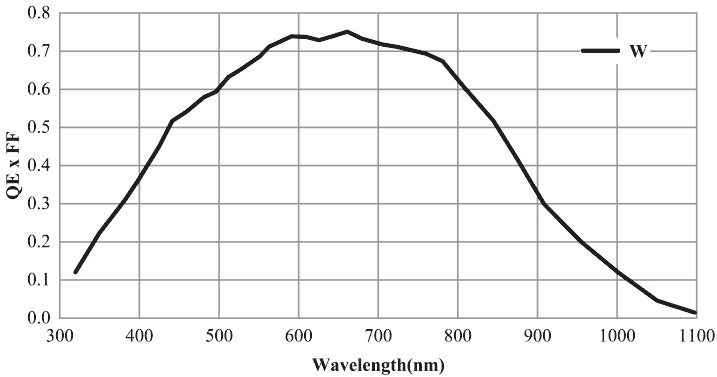

Spectral response

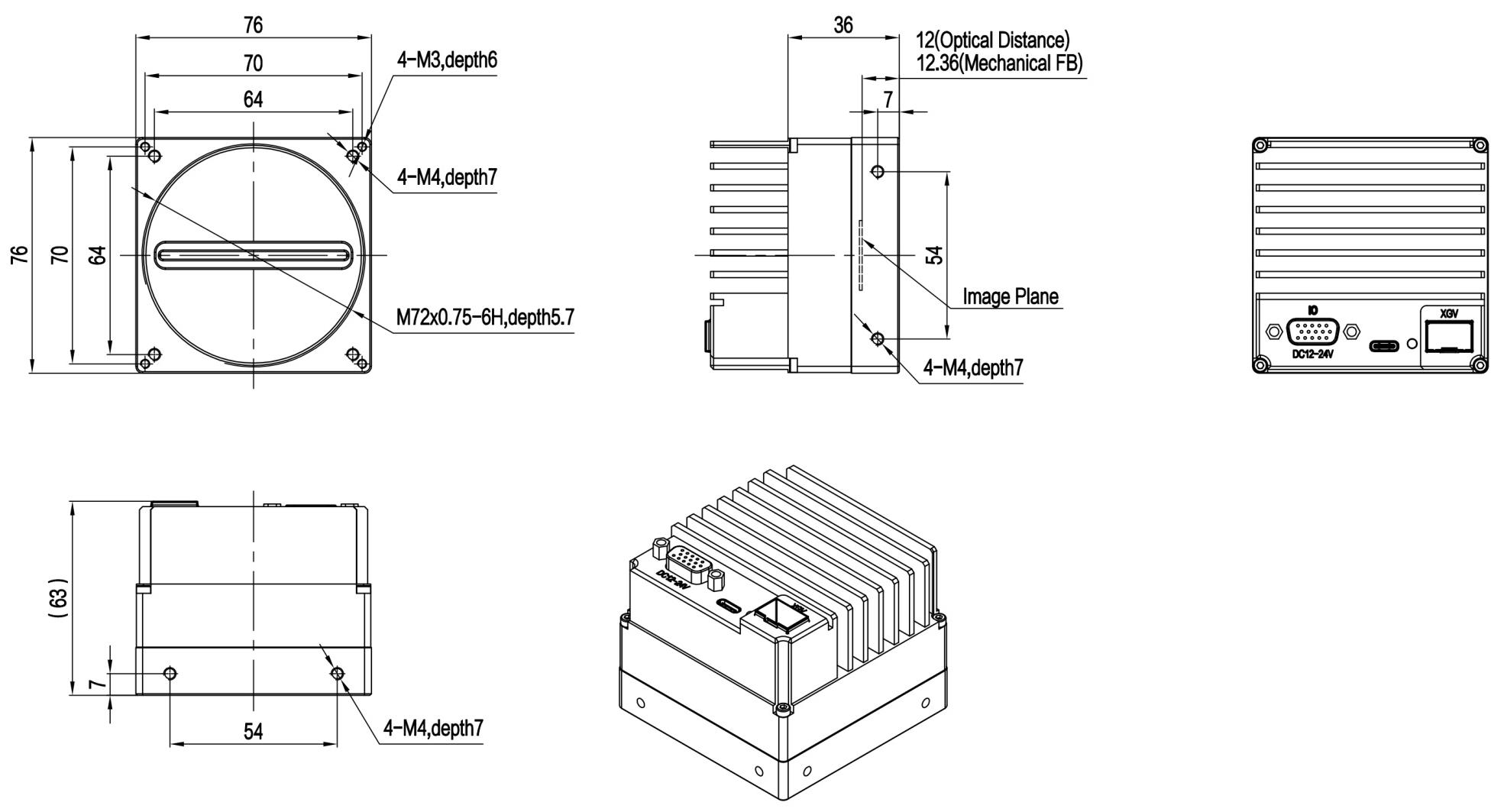

Drawings

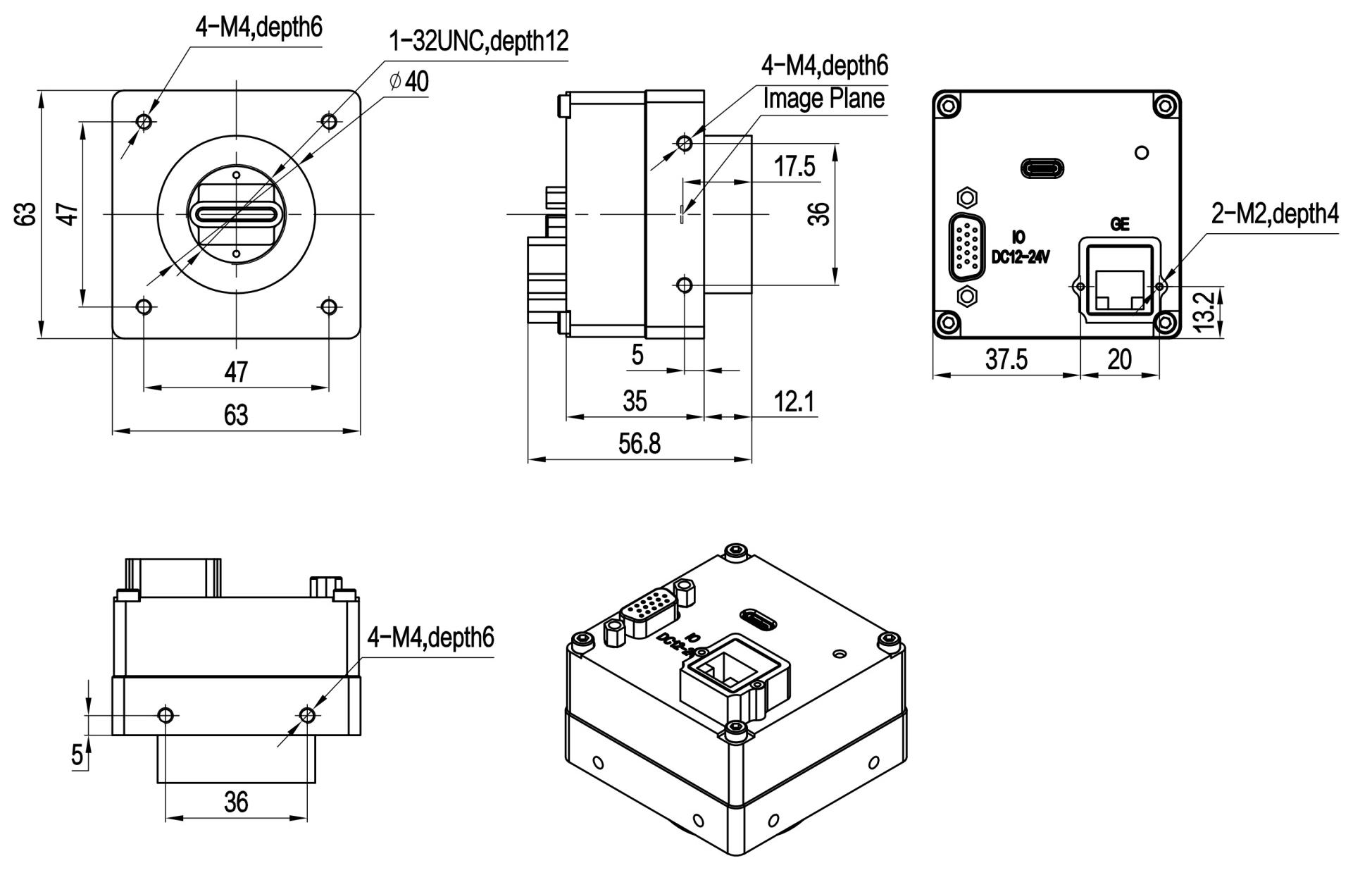

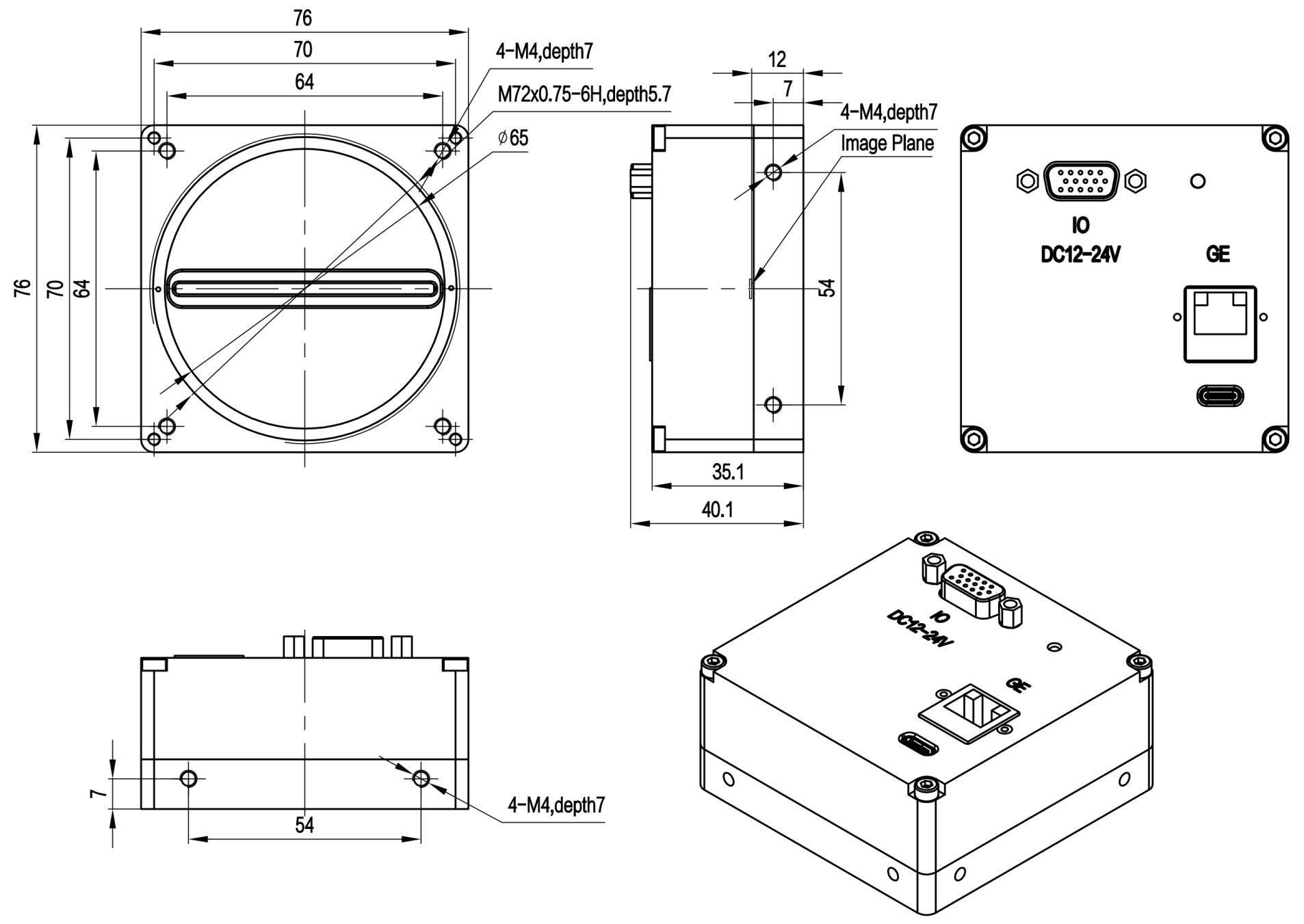

STA2KGV-8OKM	STA8KGV-45KM

STA8KCL-80KM	STA8KXGV-80KM

Single Line Scan Camera With 5.6μm x 5.6μm Pixel Size

This single line scan camera features single line CMOS, and 5.6μm x 5.6μm pixel size.Our products have been applied to inspections of printed circuit board,semiconductor,Print , package ,food and medicine.

Feature

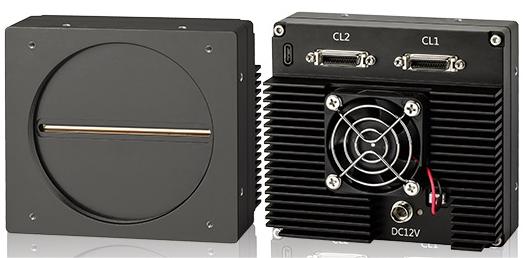

-Global shutter CMOS -Camera link interface -Bi-directional scanning -FFC/auto white balance -High sensitivity and low noise -Serial port control/GUI configuration tool optional -Internal trigger/external trigger optional	STA15KCL-18KC

Application
-Printed circuit board inspection -Semiconductor inspection -Print and package inspection -Food and medicine inspection

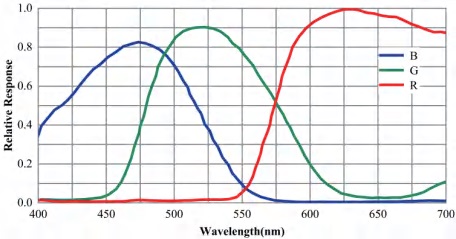

Spectral response

Single Line Scan Camera With 3.5 μm x 3.5 μm Pixel Size

These single line scan cameras feature single line CMOS, and 3.5 μm x 3.5 μm pixel size.Our products have been applied to inspections of print,package,docment scanning,logistics sorting and other industral inspections.

Feature

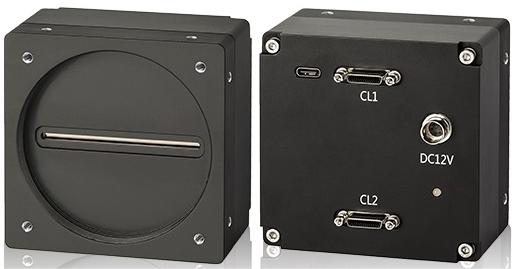

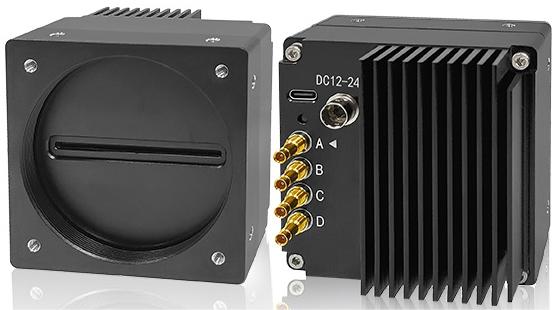

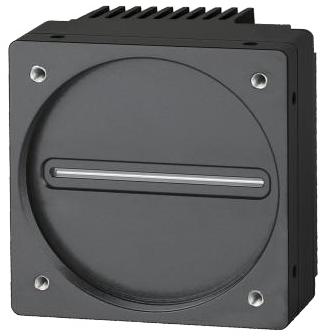

STA16KCL-40KM	STA16KCXP-80KM	STA4KGV-80KM
-Global shutter CMOS -Camera link interface -FFC/LUT -Horizontal binning:2x1 -High sensitivity and low noise	-ROI / FFC -Global shutter CMOS -Coaxpress interface -High sensitivity and low noise -Real time temperature monitoring -Scanning direction configurable	-Global shutter CMOS -GigE vision interface -High sensitivity and low noise -LUT/FFC

Application
STA16KCL-40KM / STA16KCXP-80KM -Printed circuit board inspection -Flat panel display inspection -Lithium battery/Solar panel inspection -Semiconductor inspection -Plate and web inspection	STA4KGV-80KM -Print and package inspection -Document scanning/logistics sorting -Food and medicine inspection -Plate and web inspection
Spectral response

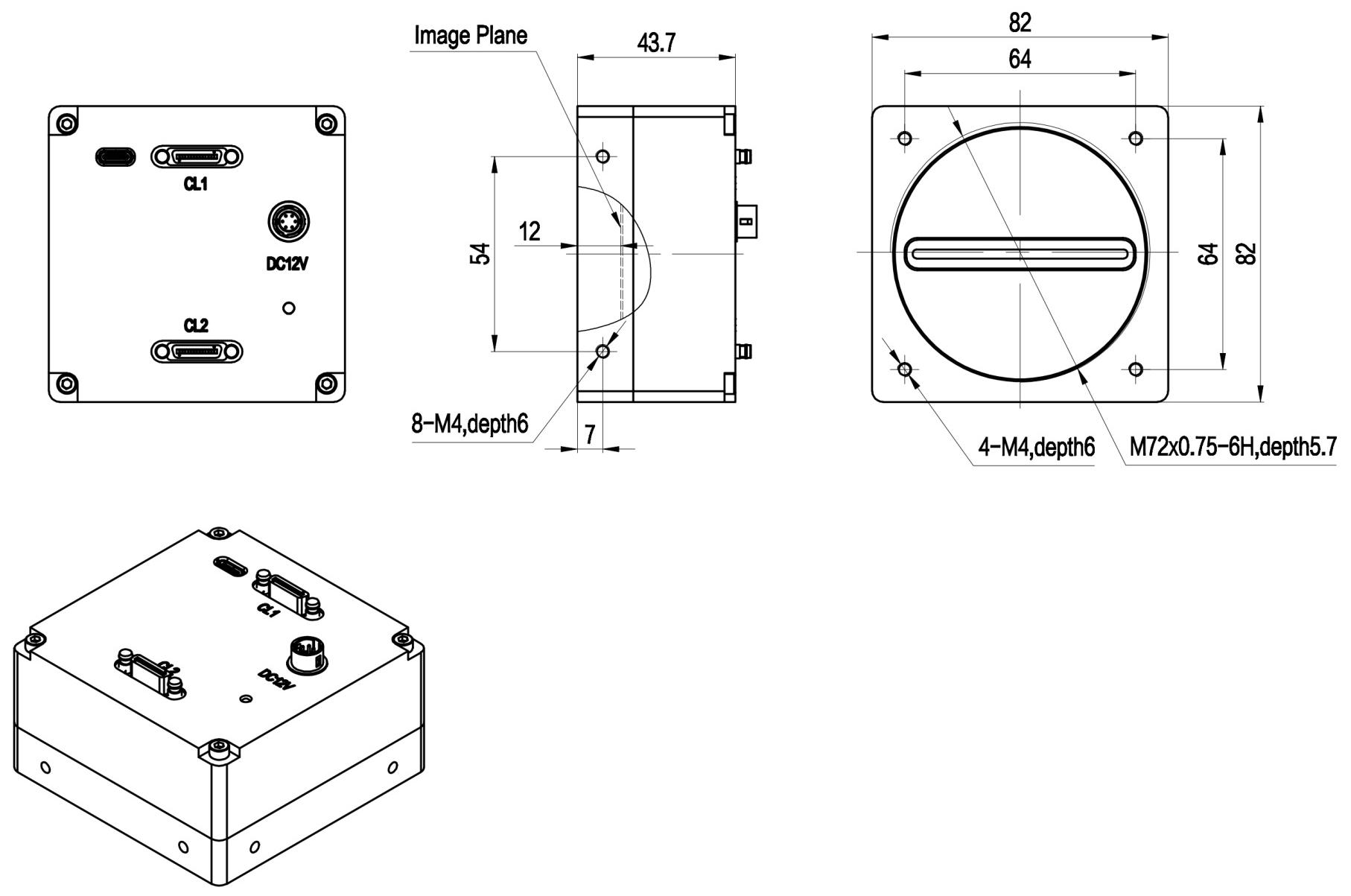

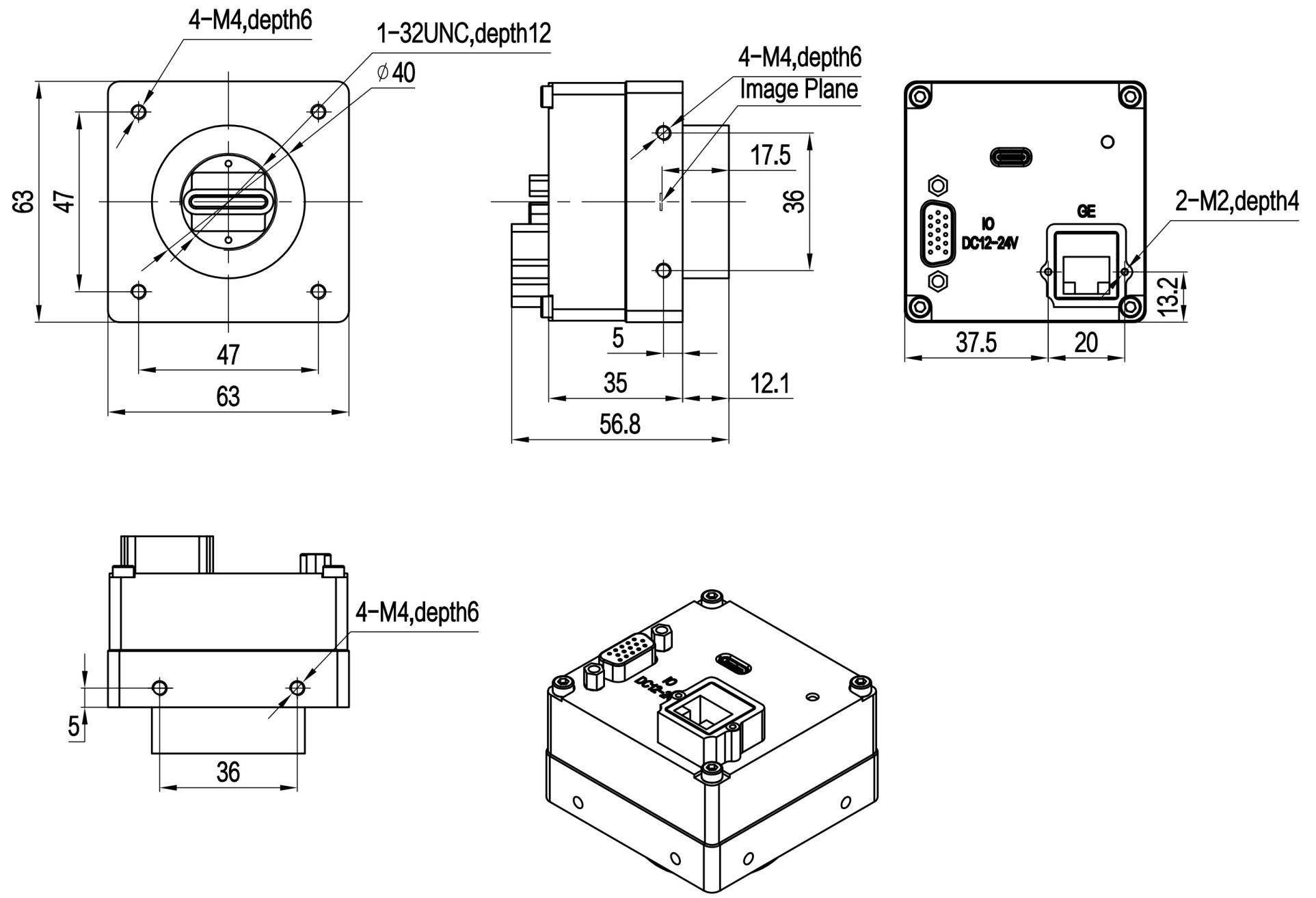

Drawings

STA4KGV-80KM	STA16KCL-40KM

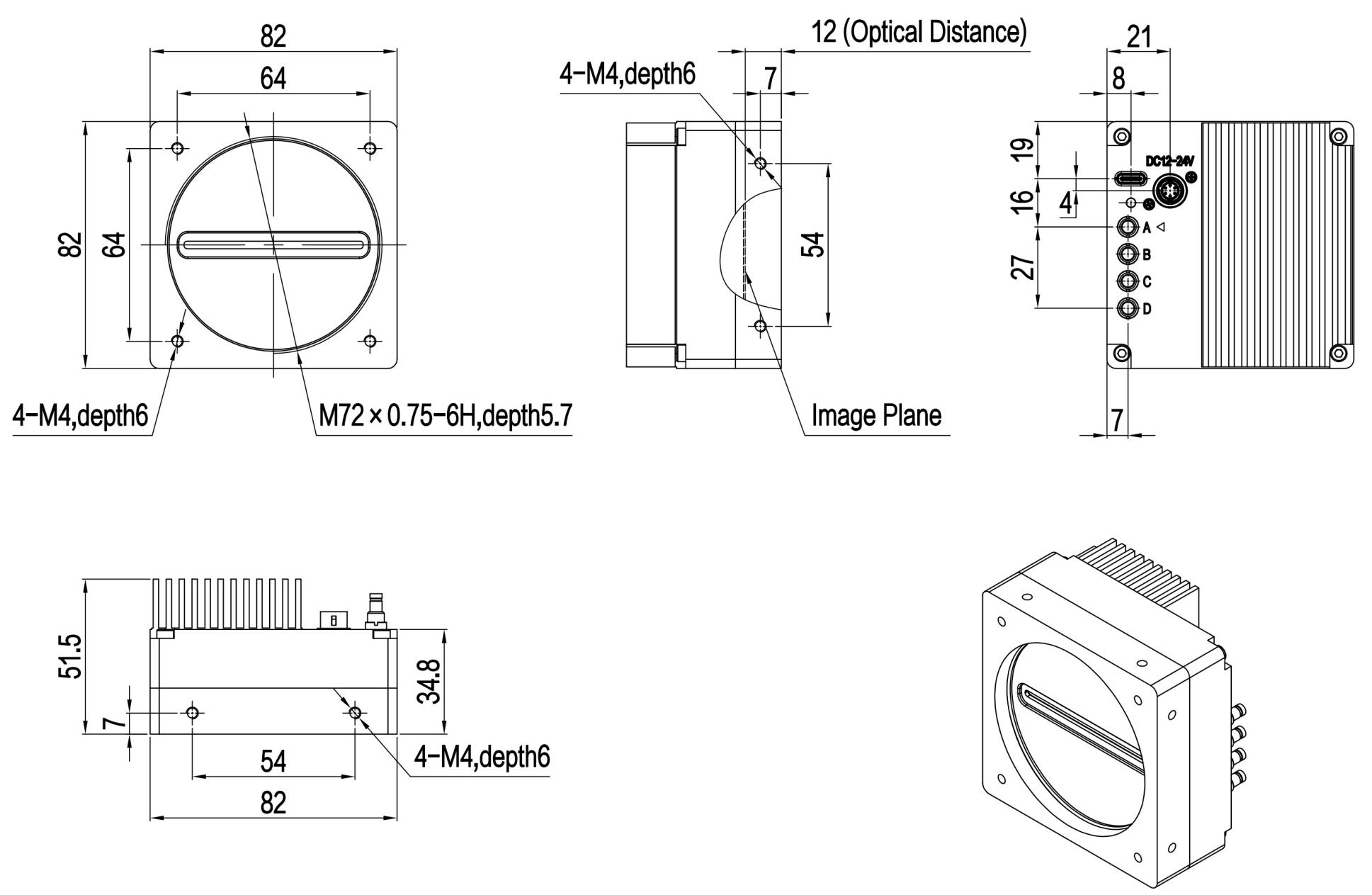

STA16KCXP-80KM

Product specifications and Brochures

Product Brochure Link:

Model	STA2KGV-80KM	STA4KGV-80KM	STA8KGV-45KM	STA8KXGV-80KM	STA8KCL-80KM	STA15KCL-18KC	STA16KCL-40KM	STA16KCXP-80KM
Sensor	Global shutter CMOS
Image Mode	Mono	Mono	Mono	Mono	Mono	Color	Mono	Mono
Optical Size	14.33mm	14.33mm	57.34 mm	57.34mm	57.34mm	86.38mm	57.34mm	57.34 mm
Resolution	2048*1	4096*1	8192*1	8192*1	8192*1	1/2Tap:154243; 3Tap:154203	16384*1	16384* 1
Pixel Size	7μm*7μm	3.5μm*3.5μm	7μm*7μm	7μm*7μm	7μm*7μm	5.6μm*5.6μm	3.5μm*3.5μm	3.5μm*3.5μm
Max Line Rate	60kHz (80kHz with SAccel^TM)	30kHz(80kHz with SAccel^TM)	15kHz(45kHz with SAccel^TM)	80kHz	80kHz	18kHz@3Tap; 10kHz@2Tap; 5kHz@1Tap	51kHz	80 kHz
Bit Depth	8bit	8bit	8bit	8/10bit	8/10bit	8/10bit	8/10bit	8/10 bit
Dynamic Range	≥54dB	≥54dB	≥54dB	≥66dB	≥69.4dB	≥45dB	≥66dB	≥66 dB
Data Rate	123 MB/s	123 MB/s	123 MB/s	1225MB/s	680MB/s	820MB/s(3Tap)	835MB/s	1638.4 MB/s
Trigger Mode	Free-run/line trigger control/frame trigger control				Free-run/external pulse/external PWM
Exposure Control	Pulse width/program
ExposureTime	2.5μs-1s（Step：0.1μs）	2.5μs-1s（Step：0.1μs）	2.5μs-1s（Step：0.1μs）	2μs-0.1s (Step:0.01μs)	2.5μs-10s (Step:0.1μs)	1μs-49998μs (Step:1μs)	2.5μs-1s (Step:0.1μs)	2μs-10s (Step:0.0117μs)
Analog Gain	1/2/4/8x	1/2/4/8x	1/2/4/8x	1/2/4/8x	1/2/4/8x	1/1.67/2/3.34x	1/4x	1/2/4/8x
Digital Gain	0.001-8.000x	0.001-8.000x	0.001-8.000x	0.001-8.000x	0.01-8.00x	0.01-8.00x	0.01-8.00x	0.001-8.000x
Data Interface	GigE Vision	GigE Vision	GigE Vision	10GigE Vision(UsingSFP+)	Camera Link	Camera Link	Camera Link	CoaXPress
Lens Interface	C Mount	C Mount	M72*0.75	M72*0.75	M72*0.75	M95 * 1	M72*0.75	M72*0.75
Power Interface	HD15(Female)	HD15(Female)	HD15(Female)	HD15(Female)	Hirose HR 10A-7R-6PB(Male)	Hirse HR10A-7R-6PB(Male)	Hirose HR10A-7R-6PB(Male)	Hirose HR10A-7R-6PB(Male)
Power Supply	C12-24V(±10%)0.5A	DC12-24V(±10%)0.5A	DC12-24V(±10%)0.5A	DC12-24V(±10%)0.5A	DC12-24V(±10%)1A	DC12V±10% 2A	DC12-24V(±10%)1A	DC12-24V(±10%) 1.5A
Power Dissipation	3.0 W	3.4 W	4.2 W	12.0W	<5.0W	15.0W	6.0W	8.4W
Dimensions (WHD)(mm)	63.0x63.0x56.8	63.0x63.0x56.8	76.0x76.0x40.1	76.0x76.0x63.0	78.0x87.0x40.6	120.0x110.0x66.0	82.0x82.0x49.7	82.0x 82.0x51.5
Operating Temperature	0-65℃	0-65℃	0-65℃	0-65℃	0-65℃	0-45℃	0-65℃	0-65℃
Storage Temperature	-20-75℃

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Pixel Size (μm)

Search Reset

	Availability	Reference Price (USD)
STA2KGV-80KM Single Line Scan Camera, Sensor Global shutter CMOS, Image Mode Mono, Optical Size 14.33MM, Resolution 2048*1, Pixel Size 7μm x 7μm, Max Line Rate 60kHz (80kHz with SAccelTM), Bit Depth 8Bit, Dynamic Range ≥54dB, Data Rate 123 MB/s	6-8 weeks	Request for quote
STA4KGV-80KM Single Line Scan Camera, Sensor Global shutter CMOS, Image Mode Mono, Optical Size 14.33MM, Resolution 40961, Pixel Size 3.5μm3.5μm, Max Line Rate 30kHz(80kHz with SAccelTM), Bit Depth 8Bit, Dynamic Range ≥54dB, Data Rate 123 MB/s	6-8 weeks	Request for quote
STA8KGV-45KM Single Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 57.34MM, Resolution 81921, Pixel Size 7μm7μm, Max Line Rate 15kHz(45kHz with SAccelTM), Bit Depth 8Bit, Dynamic Range ≥54dB, Data Rate 123 MB/s	6-8 weeks	Request for quote
STA8KXGV-80KM Single Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 57.34MM, Resolution 81921, Pixel Size 7μm7μm, Max Line Rate 80kHz, Bit Depth 8/10Bit, Dynamic Range ≥66dB, Data Rate 1225MB/s	6-8 weeks	Request for quote
STA8KCL-80KM Single Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 57.34MM, Resolution 81921, Pixel Size 7μm7μm, Max Line Rate 80kHz, Bit Depth 8/10Bit, Dynamic Range ≥69.4dB, Data Rate 680MB/s	6-8 weeks	Request for quote
STA15KCL-18KC Single Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Color, Optical Size 86.38mm, Resolution 1/2Tap 154243, 3Tap 154203, Pixel Size 5.6μm*5.6μm, Max Line Rate 18kHz@3Tap, 10kHz@2Tap, 5kHz@1Tap, Bit Depth 8/10Bit, Dynamic Range ≥45dB, Data Rate 820MB/s(3Tap)	6-8 weeks	Request for quote
STA16KCL-40KM Single Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 57.34MM, Resolution 163841, Pixel Size 3.5μm3.5μm, Max Line Rate 51kHz, Bit Depth 8/10Bit, Dynamic Range ≥66dB, Data Rate 835MB/s	6-8 weeks	Request for quote
STA16KCXP-80KM Single Line Scan Camera, Sensor Global Shutter CMOS, Optical Size 57.34MM, Resolution 16384* 1, Pixel Size 3.5μm*3.5μm, Max Line Rate 80 kHz, Bit Depth 8/10 Bit, Dynamic Range ≥66 dB, Data Rate 1638.4 MB/s	6-8 weeks	Request for quote
