Industry High Resolution Camera | SIMTRUM Photonics Store

Products / Imaging /Industrial Machine Vision Camera /Large Format Camera /Industry High Resolution Camera /
Industry High Resolution Camera
Overview Specifications Order Now!

Industry High Resolution Camera

This industry high resolution camera series features high resolution up to 9K.Our products have been applied to high precision machinery measurements,flat panel display inspection, semiconductor inspection, astronomical observation and other industrial inspection.


Feature
9e818e9bef7e5574acd3187418c932b4_STS25MGV_10M.jpg          39ce72920572cb6da85be57abd4dd0c6_STS31MSGV_6MC.jpgfdf819b85bfd7dc1d391a43a5fd2854d_STS65MCL_12MC.jpg

           STS25MGV-10M                                STS31MSGV-6M/C

            STS65MCL-12M/C

-Global shutter CMOS

-High sensitivity and low noise

-ROI/Binning/LUT/automatic white balance

-Analog gain/digital gain/offset control

-Scanning direction configurable

-Temperature monitor

-Gige vision interface,support long-distance transmission

-Support Gige vision 2.0 and GenlCam standard

-ROI

-Global shutter CMOS

-High sensitivity and low noise

-Rich exposure control modes

-Defect pixel correction/FFC

-Analog gain/digital gain/offset Control

-Auto white balance

-Temperature monitor


Application


STS25MGV-10M / STS65MCL-12M/CSTS31MSGV-6M/C
-High precision machinery measurements

-Flat panel display inspection

-Semiconductor inspection

-Electronic inspection

-Astronomical observation

-Scientific experiment

-High precision mechanical measurement

-FPD/3C inspection

-Wafer surface inspection

-Scientific experiments

-Astronomical observation

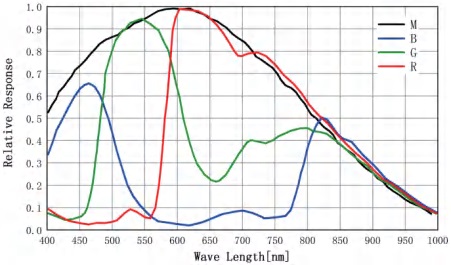

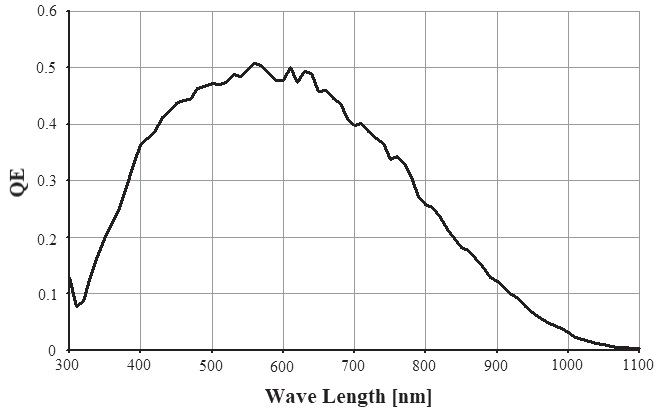

Spectral response





STS65MCL-12M/C

STS31MSGV-6M/C

STS25MGV-10M




Drawings

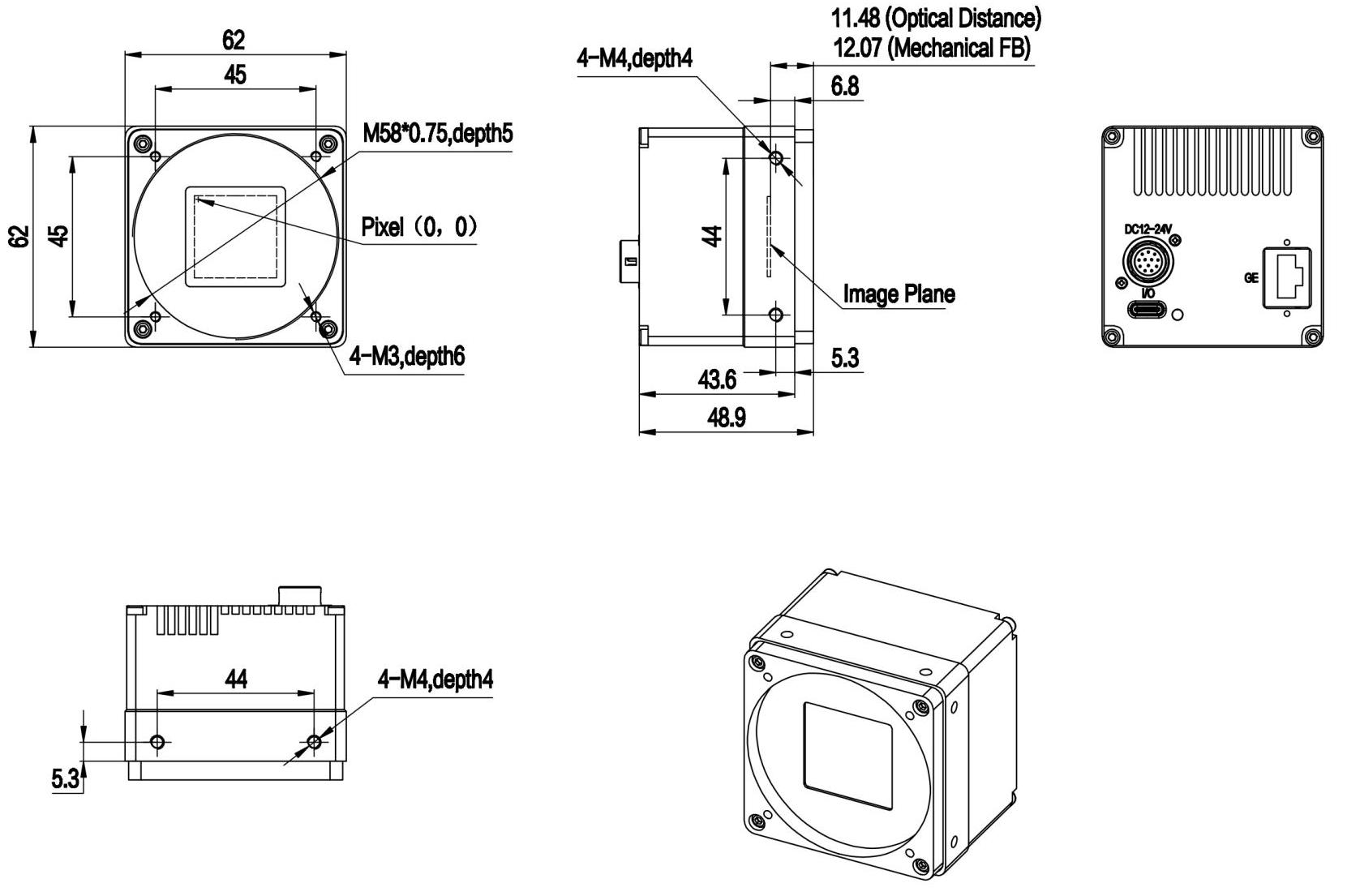

STS25MGV-10M

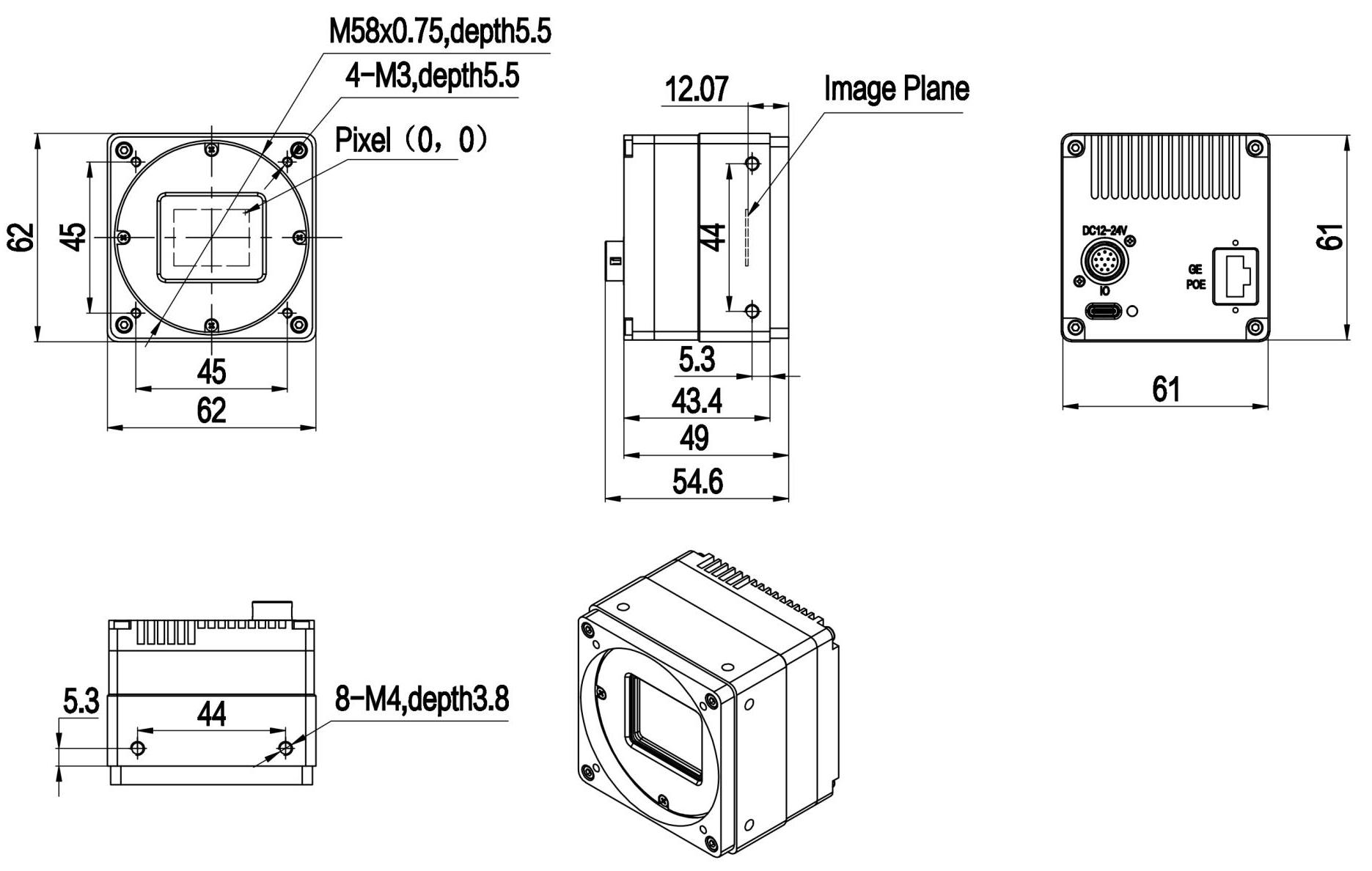

STS31MSGV-6M/C

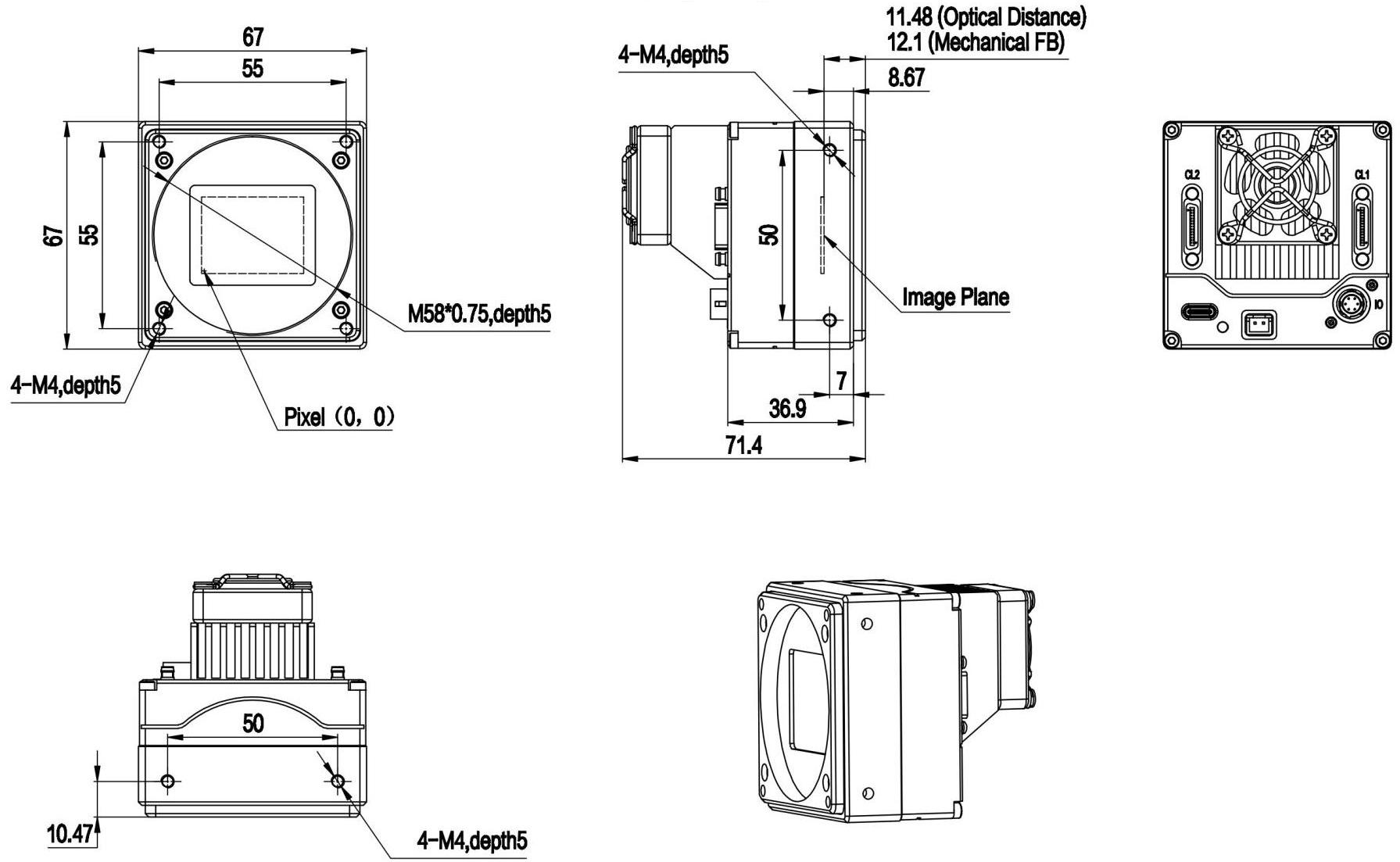

STS65MCL-12M/C



Product specifications and Brochures

Product Brochure Link:

ModelSTS25MGV-10MSTS31MSGV-6M/CSTS65MCL-12M/C
39ce72920572cb6da85be57abd4dd0c6_STS31MSGV_6MC.jpgfdf819b85bfd7dc1d391a43a5fd2854d_STS65MCL_12MC.jpg
SensorGlobal shutter CMOS
Image ModeMonoColor/MonoColor/Mono
Optical Size32.58 mm27.88 mm37.36 mm
Resolution5120 * 51206464* 48529344*7000
Pixel Size4.5μm * 4.5μm3.45μm*3.45μm3.2μm*3.2μm
Max Frame Rate4.72fps(10fps with SAccel™)4fps(10fps with SAccel™)12.47fps@8bit,
10.16fps@10bit,
5.08fps@12bit
Date Format8/10/10 packed8/10/12 packed/unpacked8/10/12 bit
Dynamic Range≥55 dB≥71dB≥62 dB
Data Rate124 MB/s124 MB/s850 MB/s
Trigger ModeFree run/external trigger
Trigger Source/Software trigger/external IOCamera link CC/external IO
Exposure ControlProgram/pulse width
Exposure Time1μs - 10s(Step:1μs ）lμs-10s(Step:lus)14μs-10s(Step:lus)
Analog Gain1/1.26/1.87/3.17x0-24dB0-12dB
Digital Gain0.004-8.000x0.004-8.000x0.01-8.00x
Lens InterfaceM58 / M42 / F mountM42 / F mountM58* 0.75
Data InterfaceGigE VisionGigE VisionCamera Link
Power InterfaceHR10A-10R-12PB(71)(Male)Hirose HR10A-7R-6PB(Male)
Power SupplyDC12-24V(±10%)1A or PoE power supplyDC12V±10% 1.5A
Power Consumption6.6W(DC power supply)/
7.3W(PoE power supply)		5.5W (DC power supply)/
6W（PoE power supply）		8.6 W
Dimensions(W*H*D)(mm)62.0x62.0x49.0(Without adapter)62.0x 62.0x55.167.0 x 67.0 x 71.4
Operating Temperature0-50℃0-65℃0-65℃
Storage Temperature-20-75℃



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STS25MGV-10M
Industry High Resolution Camera, Sensor Global Shutter CMOS, Image Mode Mono,Optical Size 32.58MM, Resolution 5120 * 5120, Pixel Size 4.5 * 4.5μm, Max Frame Rate 4.72fps(10fps With SAccel™), Date Format 8/10/10 packed, Dynamic Range ≥55 dB, Data Rate 124 MB/s 		6-8 weeks Request for quote
STS31MSGV-6M/C
Industry High Resolution Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 27.88MM, Resolution 6464* 4852, Pixel Size 3.45*3.45μm, Max Frame Rate 4fps(10fps With SAccel™), Date Format 8/10/12 Packed / Unpacked, Dynamic Range ≥71dB, Data Rate 124 MB/s 		6-8 weeks Request for quote
STS65MCL-12M/C
Industry High Resolution Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 37.36MM, Resolution 9344*7000, Pixel Size 3.2 *3.2μm, Max Frame Rate 12.47fps@8Bit, 10.16fps@10Bit, 5.08fps@12Bit, Date Format 8/10/12 Bit, Dynamic Range ≥62 dB, Data Rate 850 MB/s 		6-8 weeks Request for quote

STS65MCL-12M/C - Parameter

STS31MSGV-6M/C - Parameter

STS25MGV-10M - Parameter

STS65MCL-12M/C - Download

STS31MSGV-6M/C - Download

STS25MGV-10M - Download
