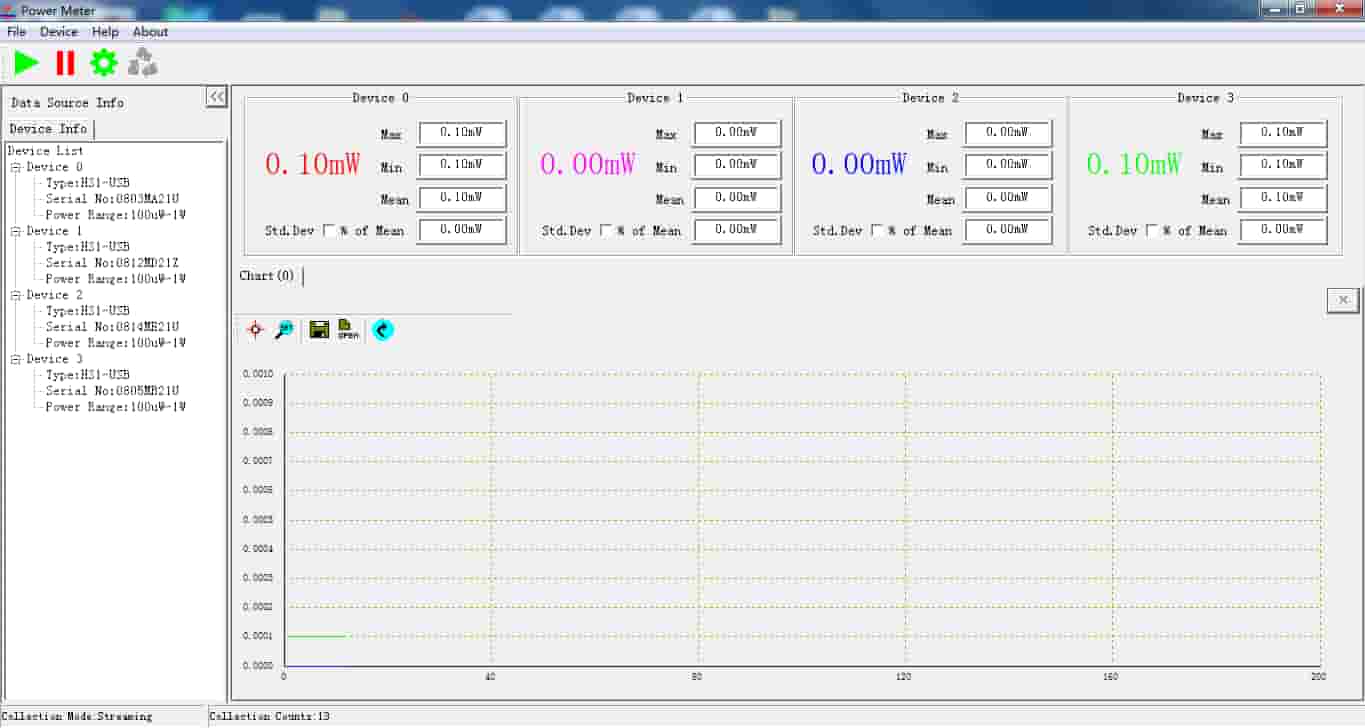

The PC software is divided into 5 areas (as shown below):

1. 1. Status information area ——After the USB probe is connected to the computer, the status information area will identify different probes and display the corresponding information of the device. When multiple devices are connected, the device information will be displayed here;
2. 2. Parameter setting area —— ①This area is divided into two modes, namely "Time Interval" and "Streaming". In the "Time Interval" mode, the number of test points and time interval can be set, while the "Streaming" mode cannot be set up, and the samples continue measuring;②Before starting the test, you need to set basic parameters such as laser wavelength and power gear in this area;
3. 3. Data display area ——This area can display real-time measurement data, statistical data, and stability values;UP to 4 devices can be displayed, and 4 devices are in simultaneous measurement mode;
4. 4. Curve display area ——This area can display the measurement curve in real time, and can display up to 40,000 samples. At the same time, it can also perform basic operations such as zooming in, storing, and opening the chart;
