Handheld thermoelectric laser power meter(0.19-25 μm)

Overview Specifications Related Products Order Now！

SIMTRUM's handheld thermoelectric power meter is a portable, accurate laser power measurement tool that is widely used in laboratory, industrial, medical and other fields. Compared to other optical power meters, handheld thermoelectric power meters have a wide wavelength response range and are able to accurately measure lasers from low power to high power. The handheld design makes it very convenient in field testing and servicing, and can be easily carried and power measured in a variety of laser equipment and systems. At the same time, it has the advantages of high precision and fast response speed, and is suitable for various types of laser sources, such as gas lasers, semiconductor lasers, fiber lasers, etc.

Features

Easy to operate
Wide wavelength measurement range: 0.19-25um
High damage threshold 40KW/cm^2
High power measurement range: 10mW-50W

Applications

Laser processing
Laser sensing
Laser calibration and detection
Calibration and maintenance of laser systems

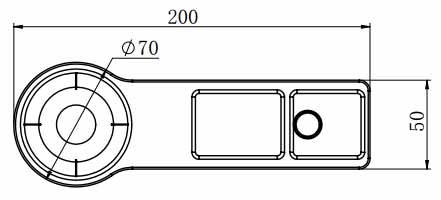

Mechanical Diagram

General Parameters

Model	LA-CC01-PM-HA-2	LA-CC01-PM-HA-50
Power Range	10mW - 2W	0.5W - 50W
Active Area Diameter	25mm
Wavelength Range	0.19-25 μm
Max. Power Density	15 kW/cm^2	40 kW/cm^2
Max. Energy Density	0.15J/cm^2,1064nm,1ns
Sensitivity	10mW	500mW
Measurement Uncertainty	±2%
Linearity	±1%
Resolution	100μW	100mW
Accuracy	＜±2%

Other Parameters

Cooling Method	Air cooling
Temperature (Operating)	5℃-45℃(41℉-113℉)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)
Warranty Period	1 year

Model	Wavelength range	Power range	Resolution	Sensitivity	Accuracy
Thermoelectric laser power meter (0.19-25 μm)	0.19-25 um	100uW-300W	Up to 10uW	Up to 100uW	＜±2%
Handheld thermoelectric laser power meter (0.19-25 μm)	0.19-25 um	0.5W-50W	Up to100uW	Up to 10mW	＜±2%
Photoelectric laser power meter (200-1100nm)	200-1100 nm	1nW-1000mW	Up to1nW	1nW	＜±2%
USB multi-channel laser power meter (0.19-25 μm)	0.19-25 um	1nW-300W	Up to1nW	1nW	＜±2%

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		LA-CC01-PM-HA-2 Power Range10mW - 2W，Wavelength Range0.19-25 μm，Active Area Diameter25mm，Max. Average Power Density 15 kW/cm2，Linearity±1%		4-6week	$1499.62
		LA-CC01-PM-HA-50 Power Range0.5W - 50W，Wavelength Range0.19-25 μm，Active Area Diameter25mm，Max. Average Power Density40 kW/cm2，Linearity±1%		4-6week	$1499.62
