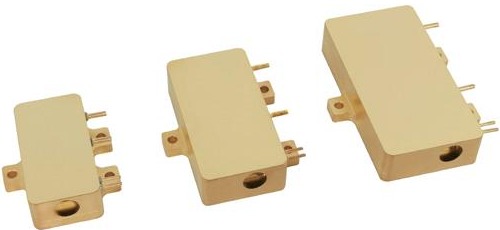

Erbium glass Eye-safe nanosecond Laser (1535 nm)
Standard High Energy High Repetition Rate Accessories Related Products Order Now!

SIMTRUM provides eye-safe lasers with the advantages of small size, light weight, high efficiency and stability, which are widely used in laser ranging, LiDAR, laser remote sensing and other fields.



Features

  • Eye-Safe
  • Small Package Size
  • Extremely Light Weight
  • Wide Operating Temperature Range





Applications

  • Meteorological Radar
  • Laser Remote Sensing
  • LiDAR
  • Laser Ranging
  • Fuzes

Products Specifications
Product Number LL-RL01-EGESL-1535-
100-5 200-5 300-5 400-6 500-6 800-8 1000-8
Wavelength（nm） 1535
Pulse Energy（μJ） 100 200 300 400 500 800 1000
Pulse Width（ns） 5 6 8
Repetition Rate（Hz） 10 5
Operating Current（A） 8 10 12 15 20 30 30
Angle of Divergence typ.(mrad) 10 8 7
Beam Mode TEM00
Energy Stability（RMS） 3%
Weight（g） 8 10 13 20
Dimensions（L×W×H, mm） 21x8x7 25x8x7 28x8x7 32x8x7 40x9x7.7
Operating Temperature（℃） -40~65
Storage Temperature（℃） -55~80

SIMTRUM provides eye-safe lasers with the advantages of high enegy, small size, light weight, high efficiency and stability, which are widely used in laser ranging, LiDAR, laser remote sensing and other fields.



Features

  • Eye-Safe
  • High Enegy
  • Small Package Size
  • Extremely Light Weight
  • Wide Operating Temperature Range



Applications

  • Meteorological Radar
  • Laser Remote Sensing
  • LiDAR
  • Laser Ranging
  • Fuzes

Products Specifications
Product Number LL-RL01-EGESL-HE-
1535-1000-10 1535-2000-11 1535-3000-12
Wavelength（nm） 1535
Pulse Energy（μJ） 1000 2000 3000
Pulse Width（ns） 10 11 12
Repetition Rate（Hz） 5
Operating Current（A） 70
Angle of Divergence typ.(mrad) 5.5 4.5 3.5
Beam Mode TEM00
Energy Stability（RMS） 3%
Weight（g） 80 100 130
Dimensions（L×W×H, mm） 38x20x12 48x25x12 58x30x12
Operating Temperature（℃） -40~65
Storage Temperature（℃） -55~80

SIMTRUM provides eye-safe lasers with the advantages of high repetition rate, small size, light weight, high efficiency and stability, which are widely used in laser ranging, LiDAR, laser remote sensing and other fields.



Features

  • Eye-Safe
  • High Repetition Rate
  • Small Package Size
  • Extremely Light Weight
  • Wide Operating Temperature Range





Applications

  • Meteorological Radar
  • Laser Remote Sensing
  • LiDAR
  • Laser Ranging
  • Fuzes

Products Specifications
Product Number LL-RL01-EGESL-HR-
1535-50-1 1535-20-2.5 1535-10-5
Wavelength（nm） 1535
Pulse Energy（μJ） 50 20 10
Repetition Rate（kHz） 1 2.5 5
Pulse Width（ns） 5 6 8
Operating Current（A） 5
Operating Voltage（V） 2
Angle of Divergence typ.(mrad) 16 17 18
Beam Mode TEM00
Energy Stability（RMS） 3%
Weight（g） 10
Dimensions（L×W×H, mm） 25x8x7
Operating Temperature（℃） -40~65
Storage Temperature（℃） -55~80

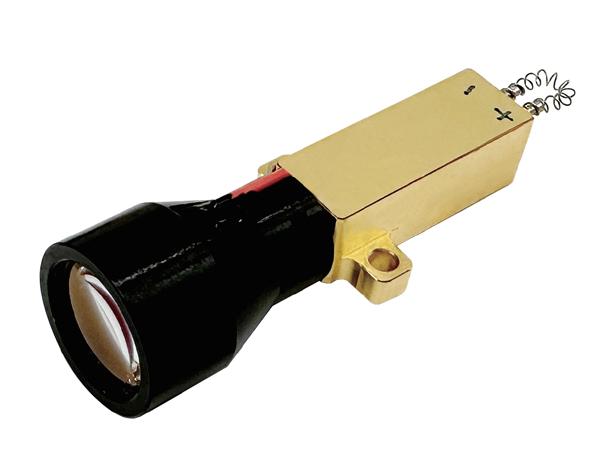

SIMTRUM provides eye-safe laser transmitting antenna with the advantages of small divergence angle, small size and high reliability, which are widely used in laser ranging, LiDAR, laser remote sensing and other fields.



Features

  • Eye-Safe
  • Integrated Photodiode（PD）
  • Small Divergence Angle
  • Small Size
  • High Reliability



Applications

  • Laser Ranging
  • LiDAR
  • Laser Remote Sensing





Products Specifications
Product Number LL-RL01-EGEST-
1535-10-100 1535-10-200 1535-10-300
Wavelength (nm) 1535
Repetition Rate (Hz) 10
Pulse Energy of Laser (μJ) >100 >200 >300
Transmission Rate of Transmitting Antenna >90%
Pulse Width (ns) <5
Operating Current (A) 8 10 12
Angle of Divergence (mrad) <0.55 <0.5 <0.5
Beam Diameter (typ., mm) 7.5 8 8
Beam Mode TEM00
Energy Stability (RMS) 3%
PD amplitude
(typ., V@50Ω resistance)		 3
Weight (g) 13.5
Operating Temperature（℃） -40~65
Storage Temperature（℃） -55~80



Related Products

Model Wavelength Options Pulse Width Pulse Energy
Erbium glass Eye-safe nanosecond Laser(1535 nm) 1535 nm 5-12 ns 100 μJ-3 mJ
DPSS nanosecond Laser(266 nm-3.4 μm) 266/351/355/527/532/1064/3400 nm 5-60 ns 25 μJ-2 mJ




Technical Guide
If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.
Items Detail Unit Remark
Application
Working Wavelength   nm
Pulse Width   ns
Pulse Energy   μJ
Repetition Rate   Hz
Energy Stability   %




We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-RL01-EGESL-1535-100-5
Working Wavelength: 1535nm； Pulse Energy: 100μJ； Pulse Width: 5ns； Repetition Rate: 10Hz； Built-in PIN (optional) 		4~6 weeks $283.94
LL-RL01-EGESL-1535-200-5
Working Wavelength: 1535nm； Pulse Energy: 200μJ； Pulse Width: 5ns； Repetition Rate: 10Hz； Built-in PIN (optional) 		4~6 weeks $425.91
LL-RL01-EGESL-1535-300-5
Working Wavelength: 1535nm； Pulse Energy: 300μJ； Pulse Width: 5ns； Repetition Rate: 10Hz； Built-in PIN (optional) 		4~6 weeks $591.55
LL-RL01-EGESL-1535-400-6
Working Wavelength: 1535nm； Pulse Energy: 400μJ； Pulse Width: 6ns； Repetition Rate: 10Hz； 		4~6 weeks $828.17
LL-RL01-EGESL-1535-500-6
Working Wavelength: 1535nm； Pulse Energy: 500μJ； Pulse Width: 6ns； Repetition Rate: 10Hz 		4~6 weeks $993.80
LL-RL01-EGESL-1535-800-8
Working Wavelength: 1535nm Pulse Energy: 800μJ Pulse Width: 8ns Repetition Rate: 5Hz 		4~6 weeks Request for quote
LL-RL01-EGESL-1535-1000-8
Working Wavelength: 1535nm； Pulse Energy: 1000μJ； Pulse Width: 8ns； Repetition Rate: 5Hz 		4~6 weeks $2169.01
LL-RL01-EGESL-HE-1535-1000-10
Working Wavelength: 1535nm； Pulse Energy: 1000μJ； Pulse Width: 10ns； Repetition Rate: 5Hz 		4~6 weeks Request for quote
LL-RL01-EGESL-HE-1535-2000-11
Working Wavelength: 1535nm； Pulse Energy: 2000μJ； Pulse Width: 11ns； Repetition Rate: 5Hz 		4~6 weeks Request for quote
LL-RL01-EGESL-HE-1535-3000-12
Working Wavelength: 1535nm； Pulse Energy: 3000μJ； Pulse Width: 12ns； Repetition Rate: 5Hz 		4~6 weeks Request for quote
LL-RL01-EGESL-HR-1535-50-1
Working Wavelength: 1535nm； Pulse Energy: 50μJ； Repetition Rate: 1kHz； Pulse Width: 5ns 		4~6 weeks Request for quote
LL-RL01-EGESL-HR-1535-20-2.5
Working Wavelength: 1535n Pulse Energy: 20μJ； Repetition Rate: 2.5kHz； Pulse Width: 6ns 		4~6 weeks Request for quote
LL-RL01-EGESL-HR-1535-10-5
Working Wavelength: 1535nm； Pulse Energy: 10μJ； Repetition Rate: 5kHz； Pulse Width: 8ns 		4~6 weeks Request for quote

LL-RL01-EGEST-1535-10-300 - Parameter

LL-RL01-EGEST-1535-10-200 - Parameter

LL-RL01-EGEST-1535-10-100 - Parameter

LL-RL01-EGESL-HR-1535-10-5 - Parameter

LL-RL01-EGESL-HR-1535-20-2.5 - Parameter

LL-RL01-EGESL-HR-1535-50-1 - Parameter

LL-RL01-EGESL-HE-1535-3000-12 - Parameter

LL-RL01-EGESL-HE-1535-2000-11 - Parameter

LL-RL01-EGESL-HE-1535-1000-10 - Parameter

LL-RL01-EGESL-1535-1000-8 - Parameter

LL-RL01-EGESL-1535-800-8 - Parameter

LL-RL01-EGESL-1535-500-6 - Parameter

LL-RL01-EGESL-1535-400-6 - Parameter

LL-RL01-EGESL-1535-300-5 - Parameter

LL-RL01-EGESL-1535-200-5 - Parameter

LL-RL01-EGESL-1535-100-5 - Parameter

LL-RL01-EGEST-1535-10-300 - Download

LL-RL01-EGEST-1535-10-200 - Download

LL-RL01-EGEST-1535-10-100 - Download

LL-RL01-EGESL-HR-1535-10-5 - Download

LL-RL01-EGESL-HR-1535-20-2.5 - Download

LL-RL01-EGESL-HR-1535-50-1 - Download

LL-RL01-EGESL-HE-1535-3000-12 - Download

LL-RL01-EGESL-HE-1535-2000-11 - Download

LL-RL01-EGESL-HE-1535-1000-10 - Download

LL-RL01-EGESL-1535-1000-8 - Download

LL-RL01-EGESL-1535-800-8 - Download

LL-RL01-EGESL-1535-500-6 - Download

LL-RL01-EGESL-1535-400-6 - Download

LL-RL01-EGESL-1535-300-5 - Download

LL-RL01-EGESL-1535-200-5 - Download

LL-RL01-EGESL-1535-100-5 - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-RL01-EGEST-1535-10-100
Working Wavelength: 1535nm； Repetition Rate: 10Hz； Pulse Energy of the Laser: ＞100μJ； Transmission Rate of Transmitting Antenna: ＞90%； Pulse Width: ＜5ns； External PIN, 25X Magnification Antenna 		4~6 weeks $473.24
LL-RL01-EGEST-1535-10-200
Working Wavelength: 1535nm； Repetition Rate: 10Hz； Pulse Energy of the Laser: ＞200μJ； Transmission Rate of Transmitting Antenna: ＞90%； Pulse Width: ＜5ns； External PIN, 25X Magnification Antenna 		4~6 weeks $615.21
LL-RL01-EGEST-1535-10-300
Working Wavelength: 1535nm； Repetition Rate: 10Hz； Pulse Energy of the Laser: ＞300μJ； Transmission Rate of Transmitting Antenna: ＞90%； Pulse Width: ＜5ns； External PIN, 25X Magnification Antenna 		4~6 weeks $780.84
