High damage threshold power meter(0.24-2.2um)
Overview Natural cooled Fan-cooled Water-cooled Power Meter Head Related Products Order Now!

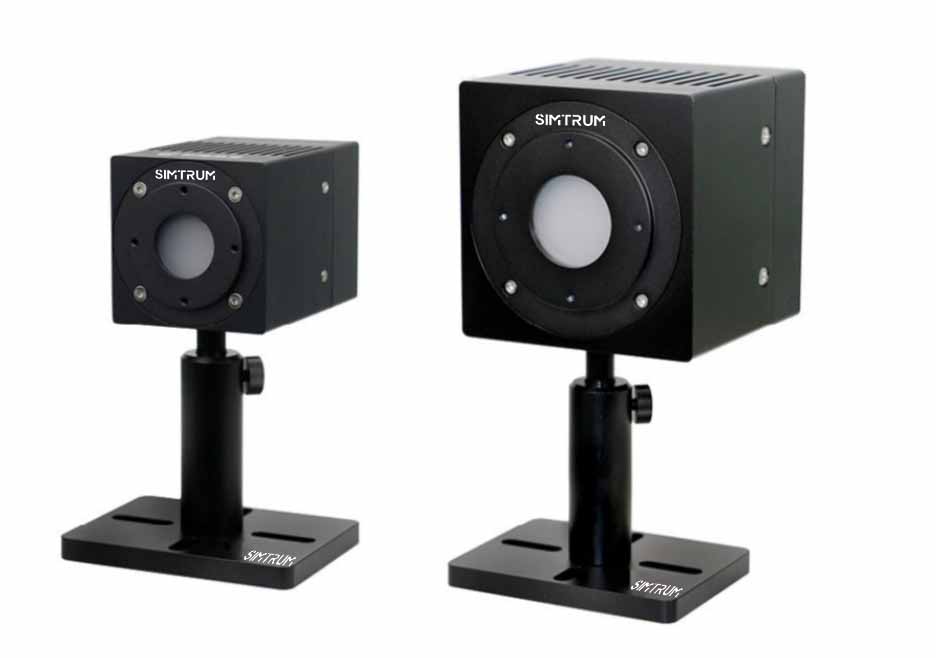

SIMTRUM's high damage threshold type laser power meter is a power measurement instrument specially designed for strong laser environments, including high-power continuous lasers, high-energy pulsed lasers, etc. Its high damage threshold characteristic ensures precise measurement in these scenarios and can withstand the high intensity, high focus or high instantaneous energy of lasers. It is a key device for ensuring the reliability and safety of strong laser applications.
The wavelength coverage range of this series of power meters is 0.24-2.2 μ m, and they are available in naturally cooled, air-cooled and water-cooled. The power range of the naturally cooled type is 10mW-100W, that of the air-cooled type is 50mW-600W, and that of the water-cooled type is 0.5-1000W. Under continuous light conditions, the maximum average power density that the power meter can withstand is 100kW/cm ², and under pulse conditions, the maximum acceptable energy density is 1.0J/cm ² (1060nm,1ns).

Features

  • Natural cooling
  • High damage threshold
  • Single-shot pulse energy testing function
  • Optional PC-side USB interface output
  • Maximum continuous measurement power up to 1000W

Applications

  • Laser processing
  • High power laser development
  • Strong laser applications in the medical aesthetics field
  • Measurement of intense laser light in lidar and remote sensing

Other Accessories

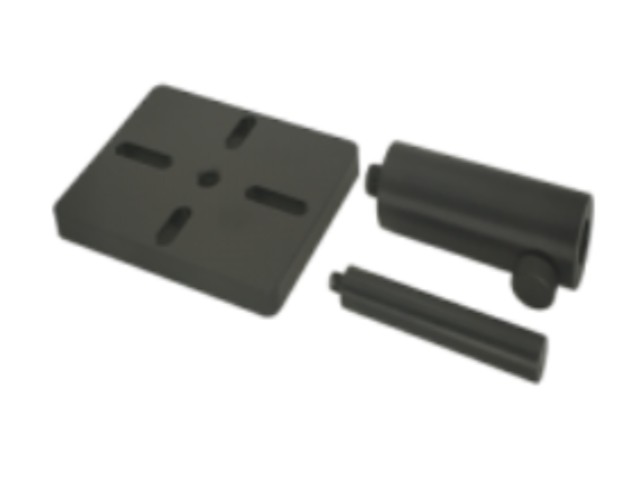

Bracket base

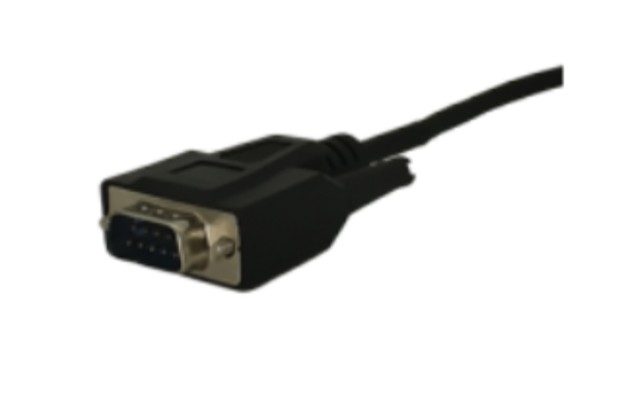

DB-9 plug

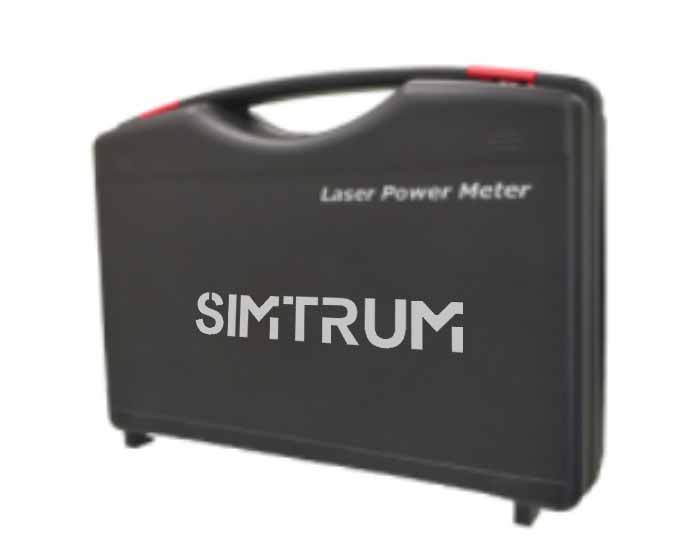

Protective case

Natural cooling
Model LA-CH01-F10 LA-CH01-F40 LA-CH01-F100
Spectral Range (μm) 0.24-2.2
Power Range 10mW - 10W(40W) 10mW - 40W(80W) 100mW - 100W(200W)
Intermittent Measurement Power 10W (Cont.)
20W (2min)
40W (1min)		 40W (Cont.)
60W (3min)
80W (2min)		 100W (Cont.)
150W (3min)
200W (1min)
Measurement Capability
Resolution (mW) 0.5 5
Measurement Uncertainty (±%) <1
Non - linearity (±%) <1
Accuracy (±%) <3
Response Time (s) <1 <2
Absorber Type DC
Detection Aperture (mm) 17 17 35
Damage Threshold
Maximum Average Power Density 100kW/cm²,10W,CW
Maximum Energy Density 1.0J/cm²，1064nm, 1ns
Physical Characteristics
Dimensions (mm) Φ50×50×22 Φ65×65×53 Φ100×100×83
Cooling Method Natural Cooling
Interface Type DB-9M
Cable Length (m) 1.5

Dimensions

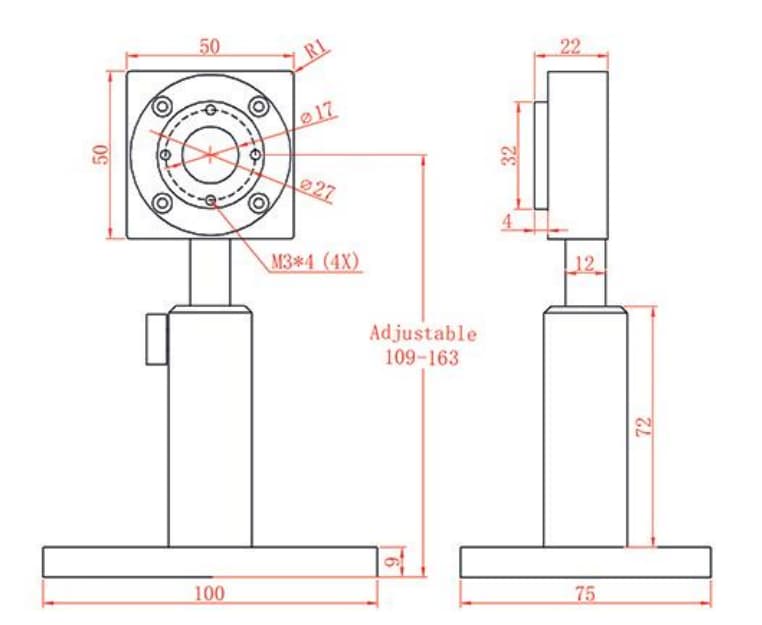

LA-CH01-F10(Natural cooling)

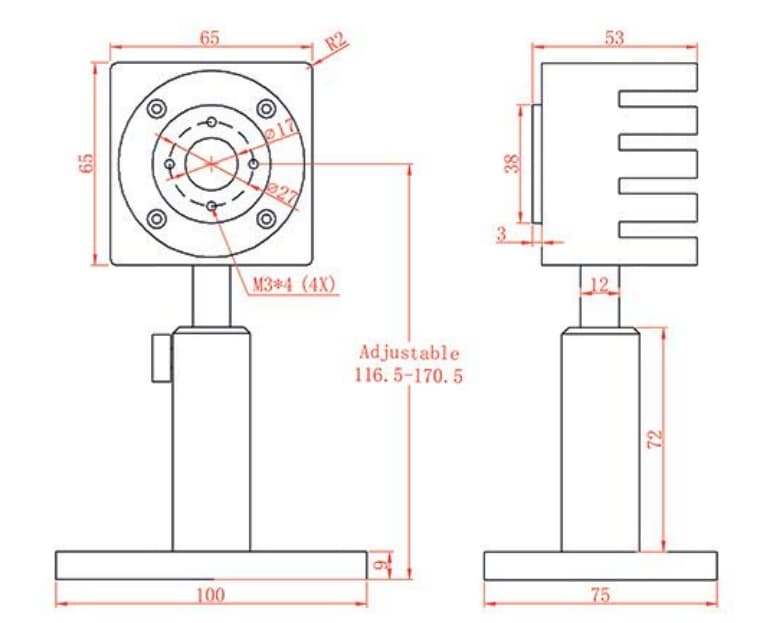

LA-CH01-F40(Natural cooling)

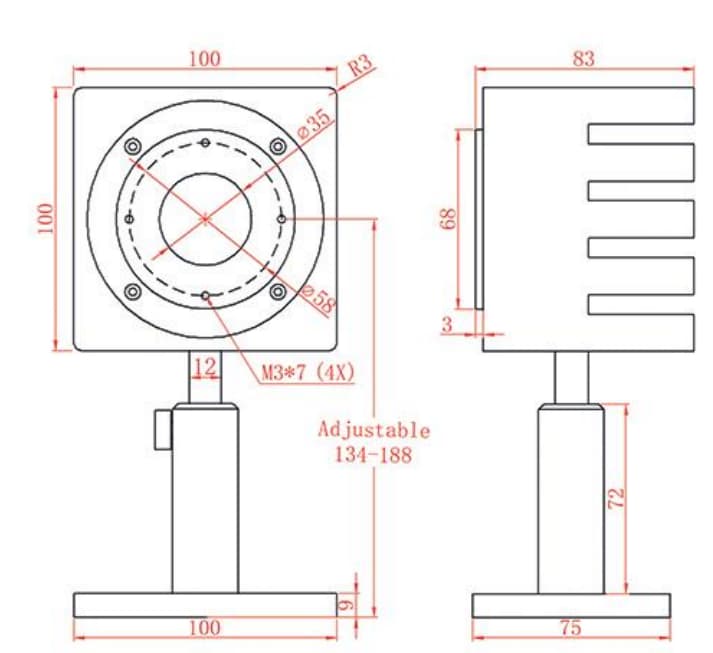

LA-CH01-F100(Natural cooling)




Fan-cooled
Model LA-CH01-F150 LA-CH01-F250 LA-CH01-F350 LA-CH01-F600
Spectral Range (μm) 0.24-2.2
Power Range 50mW - 150W(300W) 100mW - 250W(400W) 300mW - 350W(600W) 1W - 600W
Intermittent Measurement Power

150W (Cont.)
200W (3min)
300W (1min)

 250W (Cont.)
300W (3min)
400W (1min)		 350W (Cont.)
500W (2min)
600W (1min)		 NA.
Measurement Capability
Resolution (mW) 5 10 20 50
Measurement Uncertainty (±%) <1
Non - linearity (±%) <1 <1.5
Accuracy (±%) <3
Response Time (s) <2 <2.5 <3.5 <4
Absorber Type DC
Detection Aperture (mm) 25 35 35 50
Damage Threshold
Maximum Average Power Density 100kW/cm²,10W,CW
Maximum Energy Density 1.0J/cm²，1064nm, 1ns
Physical Characteristics
Dimensions (mm) Φ65×65×97 Φ100×100×104 Φ125×125×125 Φ125×125×129
Cooling Method Fan Cooling
Interface Type DB-9M
Cable Length (m) 1.5

Dimensions

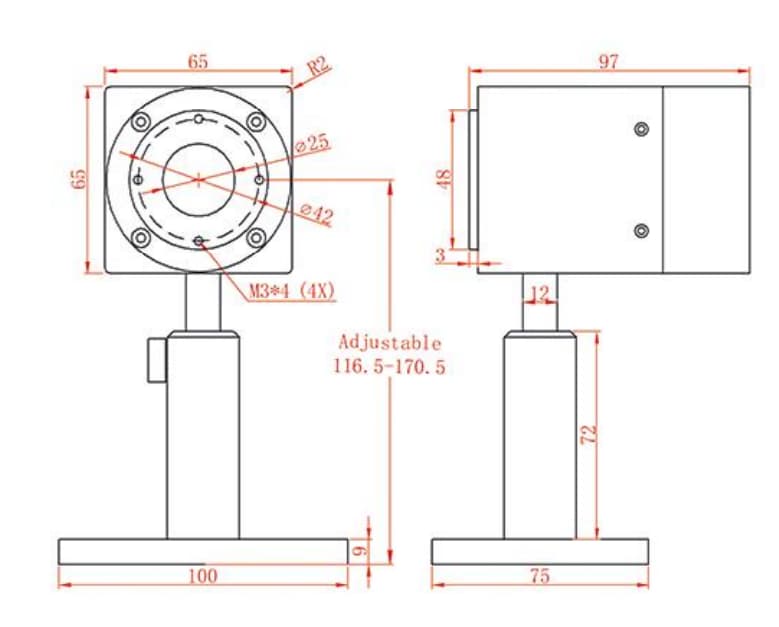

LA-CH01-F150(Fan-cooled )

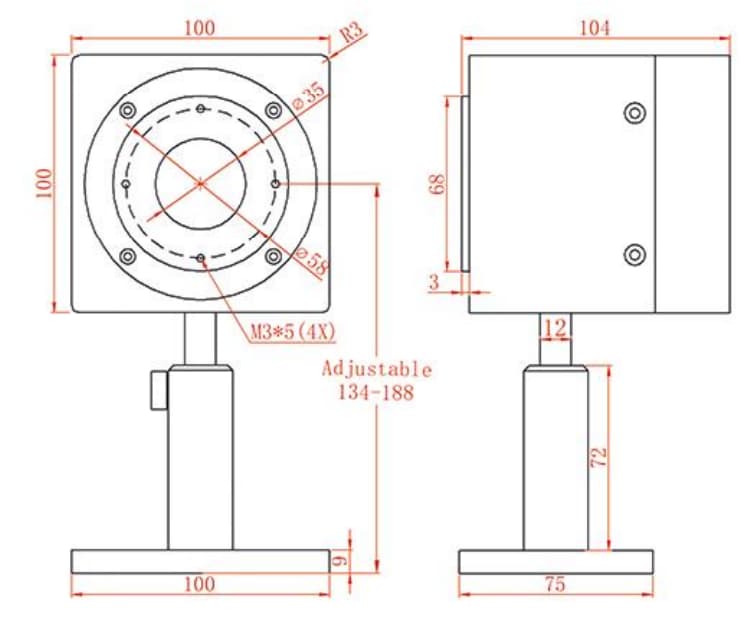

LA-CH01-F250(Fan-cooled )

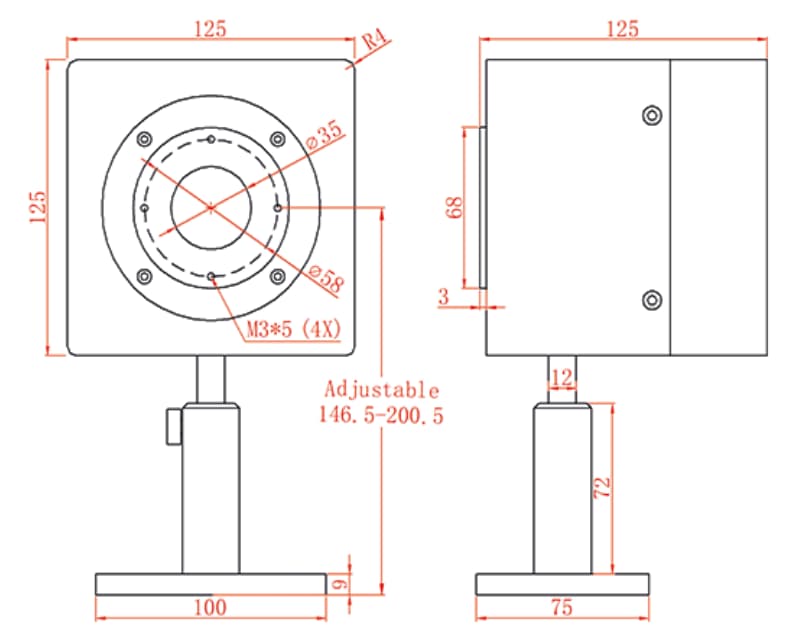

LA-CH01-F350(Fan-cooled )

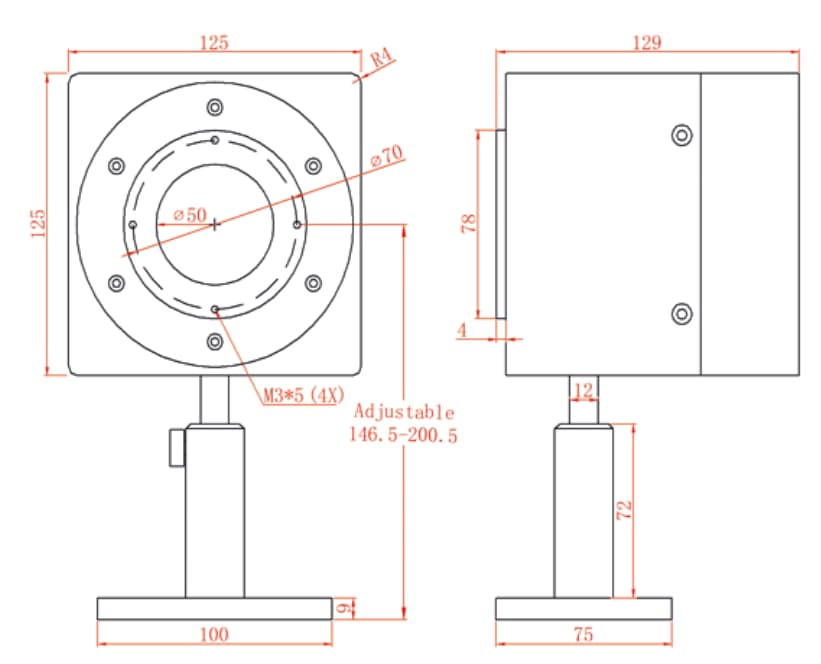

LA-CH01-F600(Fan-cooled )



Water-cooled
Model LA-CH01-W500 LA-CH01-W1000
Spectral Range (μm) 0.24-2.2
Power Range 0.5W - 500W 2W - 1000W
Measurement Capability
Resolution (mW) 20 100
Measurement Uncertainty (±%) <1
Non - linearity (±%) <1.5 <2
Accuracy (±%) <3
Response Time (s) <3
Absorber Type DC
Detection Aperture (mm) 35
Damage Threshold
Maximum Average Power Density 100kW/cm²,10W,CW
Maximum Energy Density 1.0J/cm²，1064nm, 1ns
Physical Characteristics
Dimensions (mm) Φ85×85×39 Φ110×35
Cooling Method Water Cooling
Cooling Water Flow (L/min) 3-10 3.5-10
Interface Type DB-9M
Cable Length (m) 1.5




Dimensions

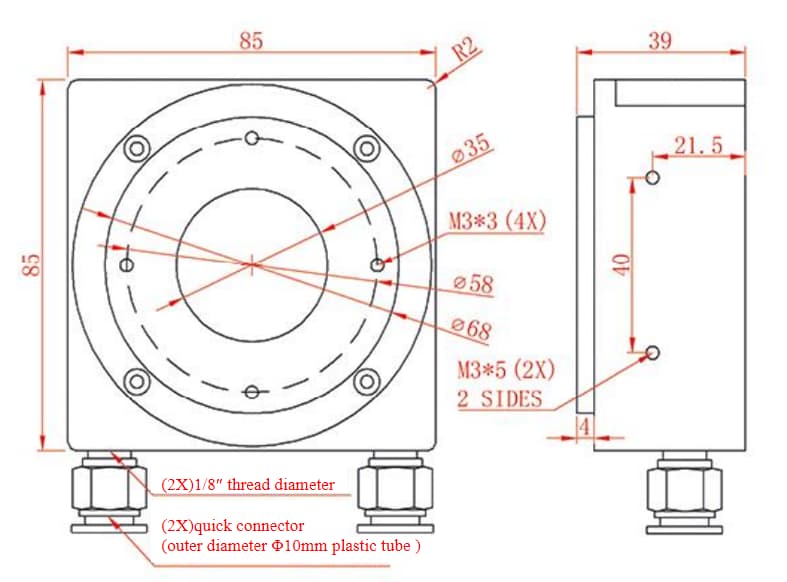

LA-CH01-W500(Water-cooled)

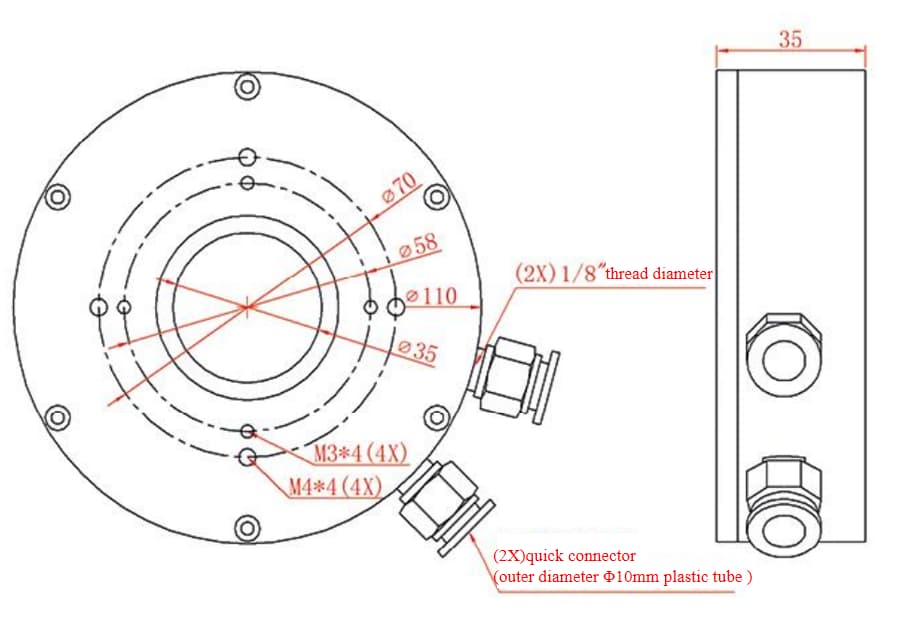

LA-CH01-W1000(Water-cooled)

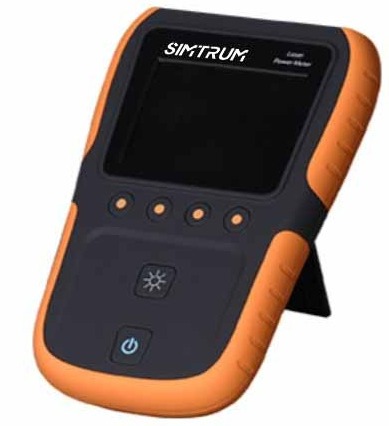

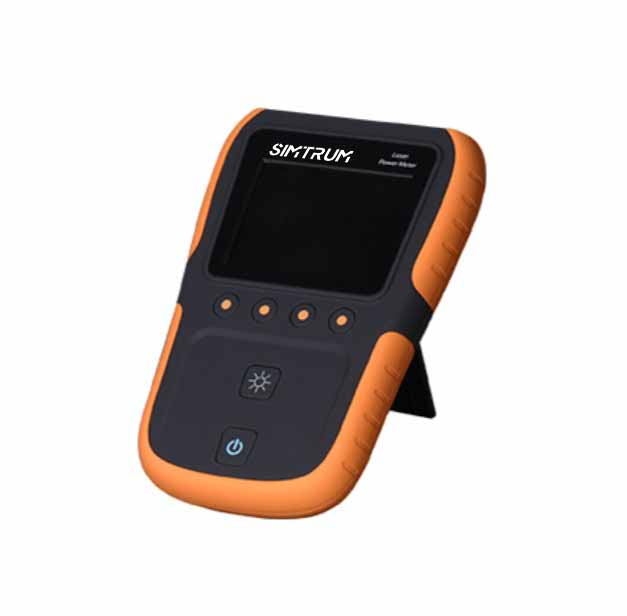

P is a professional-grade general-purpose meter head, compatible with all laser power meter probes except industrial-grade ones. It has functions such as "digital display", "data statistics", and "data storage". It can be connected to a PC via USB, and user-side software can be configured, supporting data collection and export.



Features

  • Accuracy up to ±0.25%
  • Electromagnetic interference shielding
  • Statistical and averaging functions, long-term stability testing
  • Capable of storing 250,000 measurement data
  • Can be connected to a PC via USB, with configurable user-side software,supporting data collection and export




Specifications
Model LA-CH01-LP - P
Display Form Digital, Bar Graph, Chart
Accuracy (±%) 0.25
Display Type 240 (RGB) × 320 Dot Matrix, TFT - LCD Module
Display Size 65.0mm x 48.8mm (2.56″ x 1.92″)
ADC Sampling Frequency 20Hz
AD Converter 24bit
Plug Type DB - 9F
Digital Interface USB 2.0
Battery Li - Polymer, 3.7V, 4050mAh
Battery Runtime > 40h
Charger / DC Input 5V / 2A
Dimensions (L x W x H) 165mm x 108mm x 25mm
Weight < 0.25kg
Operating Temperature 0 to 40°C
Storage Temperature -10 to 45°C

Model Wavelength range Power range Resolution Sensitivity Accuracy
Thermopile Laser Power Meter 0.19-25 um 100uW-300W Up to 10uW Up to 100uW ＜±2%
Handheld Thermopile Laser Power Meter 0.19-25 um 0.5W-50W Up to100uW Up to 10mW ＜±2%
Photoelectric Laser Power Meter 200-1100 nm 1nW-1000mW Up to1nW 1nW ＜±2%
USB series Laser Power Meter 0.19-25 um 1nW-300W Up to1nW 1nW ＜±2%
Water-cooled laser power meter 0.19-25 um 1-5000W Up to 0.1W / <±4%
10-kilowatt-class thermoelectric power meter 0.8-2 um/10.6um 7KW-30kW 1W / ＜±5%
High damage threshold power meter 0.24-2.2 um 10mW-600W 最高0.5mW / ＜±3%




Technical Guide

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Q A Remark
1.What is your application scenario?
2. What type of laser is measured? CW/pulse If it is continuous laser, the average power needs to be taken into consideration. For pulsed laser, both average power and peak power need to be considered simultaneously
3. What is the laser  wavelength that needs to be measured? eg:1064nm The wavelength range of the photoelectric power meter: 250-2500nm; The wavelength range of the thermoelectric power meter is 0.19-25 μ m.
4. What is the range of laser power measured? eg:100mW Hundred watts,kilowatts, ten thousand watts. Water cooling is generally required for high power
5. What resolution is required? eg:1W
6. How to choose between thermoelectric and photoelectric power meters?   The thermoelectric power meter is based on the thermoelectric effect. When a laser is shone on the absorber of the
power meter, the temperature rises after absorbing the light energy. The temperature difference is converted into an  electrical signal through the thermoelectric element. The wavelength range of thermoelectric type can reach the
mid-infrared 25um, suitable for medium and high power measurement, up to the ten-thousand-watt level. Meanwhile, due to the time accumulation required for temperature changes, it is suitable for high-power continuous laser measurement with a high damage threshold.

The photoelectric power meter is based on the photoelectric effect. When a laser is shone on the photodetector, the photons are absorbed by the detector material, exciting electron-hole pairs to form a photocurrent. The measurable wavelength range of the photoelectric laser power meter is relatively narrow,which is determined by the material of its detector (e.g. Si:400-1100nm). It usually operates at low power, has a fast response speed, and is suitable for measuring pulsed lasers or rapid fluctuating signals. At the same time, its damage threshold is generally low, so the input optical power should be strictly controlled.
7. Comparison of power meters with different cooling methods?   Natural cooling type laser power meters are generally only suitable for measuring low-power lasers (usually < 50W). After long-term use, the performance drift of the detector may affect the measurement sensitivity.

Air-cooled power meters use fans for heat dissipation and are suitable for medium to high power measurements (typically 50W to 500W).

However, the fans generate noise during operation,making them unsuitable for environments with high noise reduction requirements. Moreover, the fans are susceptible to dust and moisture, and their heat dissipation  efficiency will decline after long-term use.

Water-cooled power meters dissipate heat through circulating water and are suitable for high-power measurements, up to the ten-thousand-watt level. They have extremely high heat dissipation efficiency and can withstand high-power lasers for a long time. However, due to the need for circulating water for heat dissipation, they are bulky and heavy, and cannot be moved easily,making them only suitable for fixed scenarios.
8. How does the damage threshold of a power meter affect its performance?   The damage threshold refers to the maximum laser power density (W/cm²)(continuous light) or energy density (J/cm²) (pulsed light) that the detector can withstand. Exceeding the threshold will cause permanent damage to the power meter and is closely related to the size of the light spot. After focusing, if the light spot becomes smaller, it may exceed the threshold.

We are here for you!





Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).
