Products / Microscopes /Confocal (Raman) Microscope / SIMSCOP P Series /

Laser Scanning Confocal Microscope, Standard Wavelength 405/488/561/640nm(638nm), dual-axis XY high-speed optical scanning galvanometer, field of view 15x15mm, scanning pixels 512x512 ~4096x4096, scan speed up to 4fps, stroke: X-110mm, Y-75mm, Z-9mm

MODEL:SIMSCOP P Series

In Stock Drawings

Compare

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page

Related Products Detailed Introduction

	Availability	Reference Price
Multimodal Microscope Multimodal Microscope by swapping functional modules, users can switch between excitation modes in seconds—enabling rapid adaptation to diverse sample types including thin films, solutions, cells, tissues, microfluidic chips, and single nanoparticles.For custom solutions, please contact us.	Contact us	Request for quote
MCF-4 Compact Multi-channel fluorescence microscope imaging module，4 Channel，Compatible Upright/inverted microscope, point / line scanning microscope, Raman microscopes	4-6 Weeks	Request for quote
MCF-3 Compact Multi-channel fluorescence microscope imaging module，3 channel ，Compatible Upright/inverted microscope, point / line scanning microscope, Raman microscopes	4-6 Weeks	Request for quote
MCF-2 Compact Multi-channel fluorescence microscope imaging module，2 channel ，Compatible Upright/inverted microscope, point / line scanning microscope, Raman microscopes	4-6 Weeks	Request for quote
Industry Line Scan Confocal Microscope Industry Line Scan Confocal Microscope,Standart wavelength：405nm±5nm,Output way：Single-mode polarization-maintaining fiber coupling (TEM00),Single wavelength output power：＞20mW,Power stability：<1%,Spectrum Linewidth＜3nm	In Stock	Request for quote
Automated Fluorescence Microscope Automatic fluorescence microscope，can be selected as an upright or inverted microscope, customer-customized	In Stock	Request for quote
SIMSCOP Raman S2 SIMSCOP Confocal/PL Raman Microscope , Multi-channel laser up to 5 channels, wavelengths 405nm/532nm/638nm/785nm/1064nm, Laser power 100mW, linewidth 0.001nm, Near-infrared spectrum support, Raman range typical 150~3200cm-1, Confocal image resolution ~200nm @100x objective, Electric continuously variable speed pinhole mode, spot size ~1um@50x, Compatible with upright/inverted microscopes, Compatible with standard stretching stages, high/low-temperature stages, in-situ stages, and vacuum stages	6-8 weeks	Request for quote
SIMSCOP Raman S1 SIMSCOP Confocal/PL Raman Microscope , Single-channel laser, wavelengths 532nm/638nm/785nm optional, Laser power 100mW, linewidth 0.003nm, Raman range typical 150~3200cm-1, Confocal image resolution ~200nm @100x objective, manual pinhole mode, spot size ~1um@50x, Compatible with upright/inverted microscopes,Compatible with standard stretching stages, high/low-temperature stages, in-situ stages, and vacuum stages	6-8 weeks	Request for quote
DermDive Wideband Handheld Confocal Raman Skin Analyzer, Detection Range: FP: 450 – 1750cm-1; HW: 2800-3750cm-1, Axial Resolution: 10um~20um, Sensitivity: 60dB, Scanning Time: 2-10s/depth	6-8 Weeks	Request for quote
SpinDisk SIM Structured Illumination Microscope, SIM Basic, Image frame rate 13fps@1024x1024, Resolution ~100nm, image depth <50um, No. of Laser - 4, Wavelength choice 405/445/470/520/528/555/640nm, sCMOS Camera detectors, Inverted or upright microscope, XYZ motorized stages, Motorized filter electronics system, high image contrast, upgrade to SpinDisk SIM 100nm resolution	6-10 Weeks	Request for quote
SIM Basic Structured Illumination Microscope, SIM Basic, Image frame rate 13fps@1024x1024, Resolution ~100nm, image depth <50um, No. of Laser - 4, Wavelength choice 405/445/470/520/528/555/640nm, sCMOS Camera detectors, Inverted or upright microscope, XYZ motorized stages, Motorized filter electronics system, high image contrast, upgrade to SpinDisk SIM 100nm resolution	6-10 Weeks	Request for quote
SpinDisk Advance Spinning Disk Confocal Microscope, SpinDisk Advance Series, Image frame rate 100fps@2048x2048, Resolution ~230nm, image depth <200um, No. of Laser - 4, Wavelength choice 405/445/470/520/528/555/640nm, Dual sCMOS Camera detectors (single sCOMS optional), Inverted or upright microscope, XYZ motorized stages, Motorized filter electronics system, high image contrast, upgrade to SpinDisk SIM 100nm resolution, customized option	6-10 Weeks	Request for quote
SpinDisk Basic Spinning Disk Confocal Microscope Spinning Disk Confocal Microscope, SpinDisk Basic Series, Image frame rate 100fps@2048x2048, Resolution ~230nm, image depth <200um, No. of Laser - 4, Wavelength choice 405/445/488/525/561/640nm, sCMOS Camera detectors, Inverted or upright microscope, XYZ motorized stages, high image contrast, customized option	6-10 Weeks	Request for quote
Research Line Scan Confocal Microscope L Series Research Line Scan Confocal Microscope L Series,Standard wavelength 405±5nm/488nm±5nm/561nm±1nm/640nm±5nm,Laser power adjust accuracy：0.1%， Multi-wavelength AOTF adjustment power,Single wavelength output power：＞20mW,Power stability：<1%,Spectrum Linewidth＜3nm	6-10 Weeks	Request for quote
MIC-PL(XXX) Fluorescence/Photoluminescence Microscope (System), Detector Hamamatsu area array back-illuminated CCD, cooling temperature -15 °C 6M Camera ,3072x2048, pixel size 2.4um. Spot size up to the diffraction limit (1um @50x objective lens @532nm). 3D dynamic scanning or 2D dynamic scanning optional.	4-6weeks	Request for quote

Compatible

Compare	Model		Drawings & Specs	Availability	Reference Price

Product specifications and Brochures

Product Brochure Link:

Confocal Microscope Specification
Laser Light Source	405 nm (20 mW ); 488 nm (20 mW ); 561 nm (20 mW ); 640 nm (20 mW ); Analog /TTL level modulation , intensity adjustable (0-100%); Single-mode fiber , FC/APC connector.
Scan Module	Dual-axis XY high-speed optical scanning galvanometer Field of view 15mm X 15mm , scanning pixels 512 x 512 ~ 4096 x 4096 Pixel time 0.5 μs -100 μs , standard scan speed: up to 4fps ( 512 x 512)
Scan Mode	XY, XYT, XYZ, XYZT
Pinhole Choice	Diameter: 10/20/30/40/50 μm
Detector	SiPMT , QE>25%@500nm, GaAsP PMT, QE>45%@500nm
Filter Unit	DAPI(445nm/40); FITC(530nm/43); TRITC(605nm/60); CY5(695nm/40)
XYZ Translation Stage	Minimum step size 50 nm; repeatability +/- 0.1 μm Maximum speed 100 mm/s Stroke : X : 110mm , Y : 75mm , Z : 9mm
Software Feature	Multicolor fluorescence colocalization processing, Z - stack processing analysis, large image stitching, Filtering processing, Imaging parameter management, etc.

Professional Software UI Design SIMSCOP CM Series Confocal Microscope Software Key Features

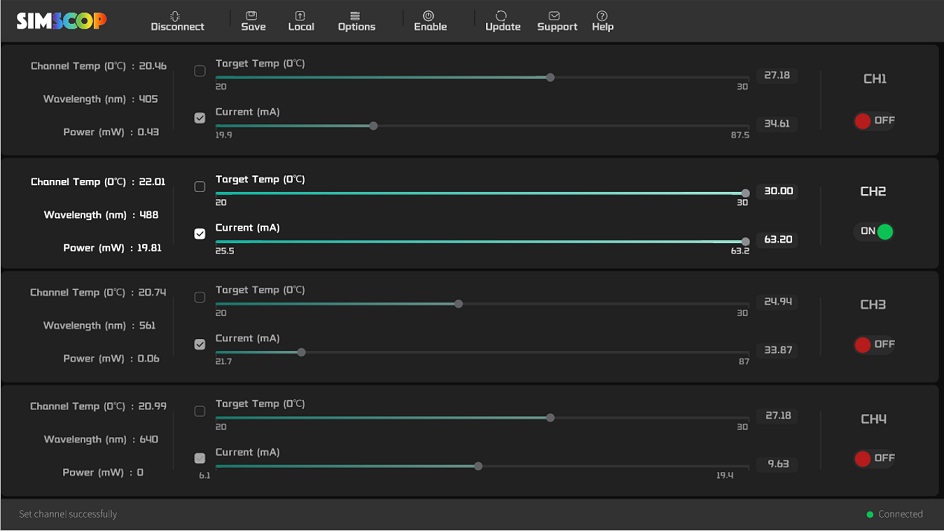

Laser Control Panel


Image Processing & Deconvolution

	Functional GUI Panel

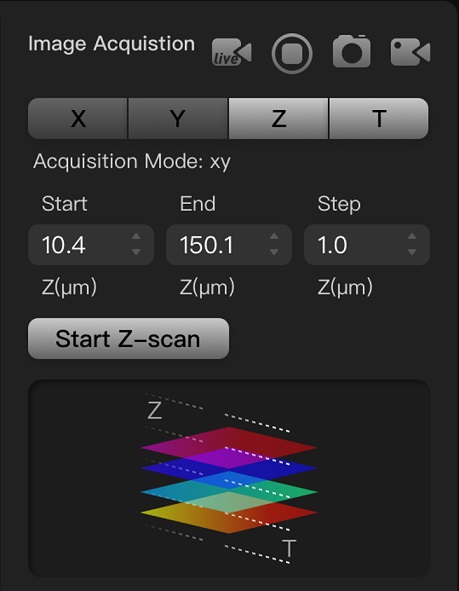

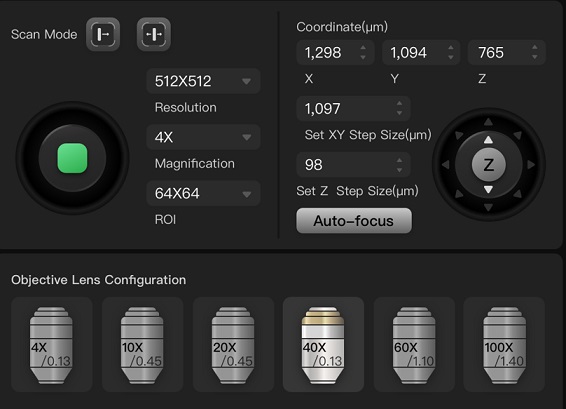

Easy-to-recognize display for setting lasers, detectors, etc.	Scanning parameter settings	Image processing & deconvolution
