Products / Lasers/Light /Fiber Lasers /Picosecond Pulse Fiber Laser (266nm-2μm) /1064 nm High Power Picosecond Laser /

1064 nm High Power Picosecond Laser

High Power Standard（200mW） Related Products Order Now!

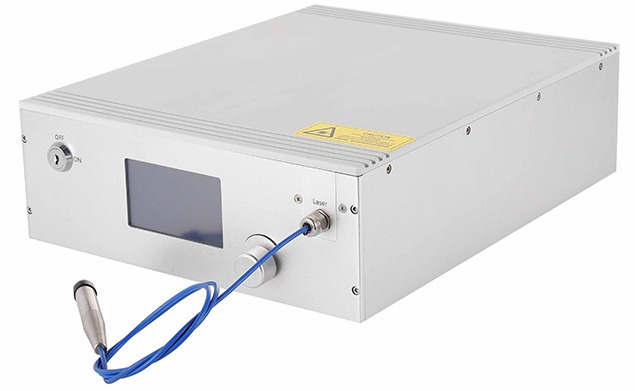

SIMTRUM provides the 1064 nm picosecond lasers with high output power, long operating lifetimes, good power stability and excellent reliability, which are widely used in many fields such as supercontinuum generation, laser pumping sources, pump detection, and so on.
Features Excellent Beam Quality Power Stability ＜0.5% Long Operating Lifetime Abundant Customisation Options	Applications Optical Parametric Amplifier (OPA) Pump Sources Supercontinuum Generation Pump Detection Laser Ranging

Product Specifications

Product Number	LL-NP01-1064-15-30-1000
Working Wavelength	1064±2 nm
Pulse Width	＜15 ps
Repetition Rate	30 MHz (20-50 MHz optional)
Average Output Power	＞1 W
Average Power Stability（%）	≤0.5% RMS (12 hours@25℃）
Polarization Extinction Ratio (PER)	＞20 dB
Output Type	With collimator，spot diameter＜2mm
Supply Voltage	100-240 VAC
Operational Temperature	15-35℃
Operational Humidity	20~80% (non-condensing)
Dimensions	395×298×115 mm
Cooling	Air cooling

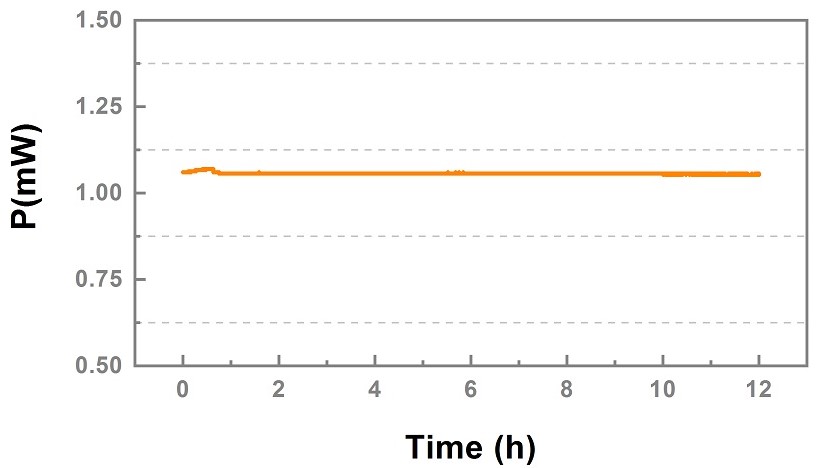

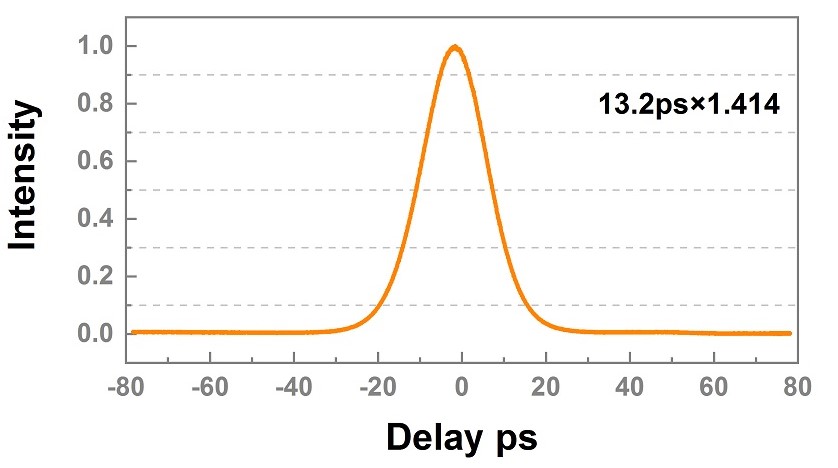

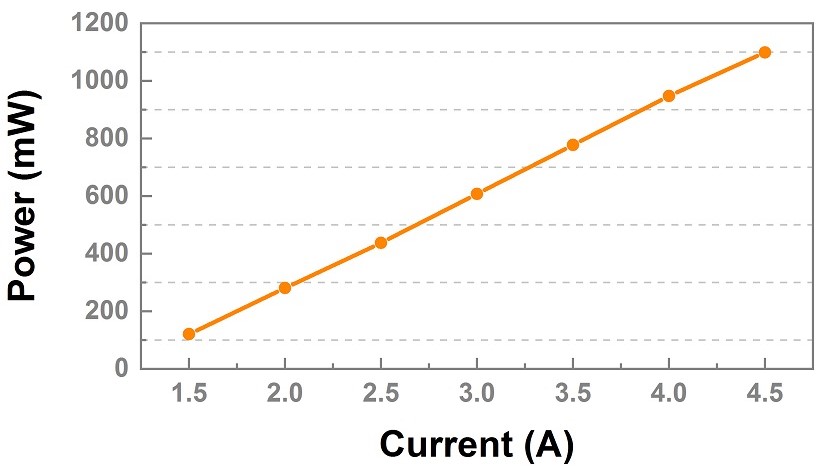

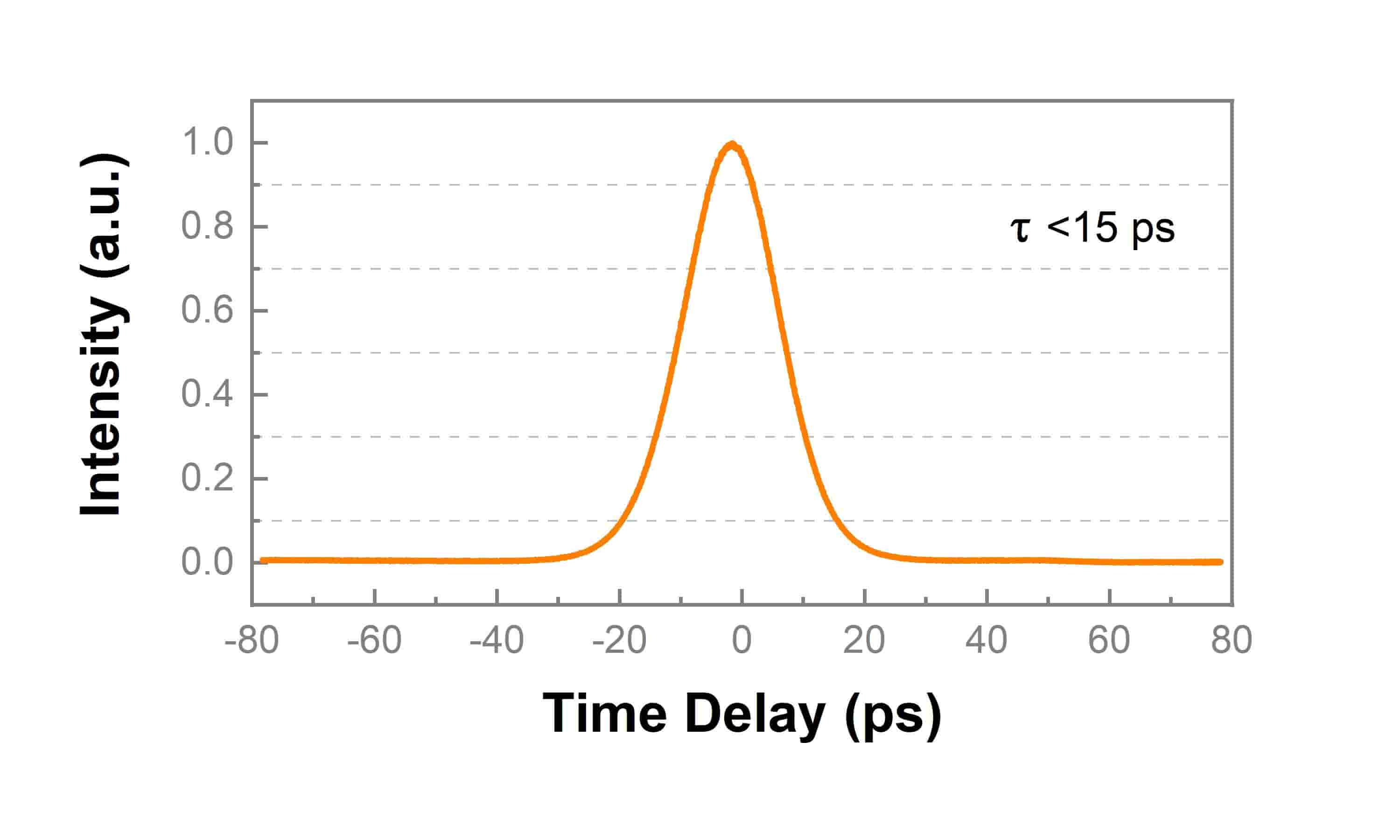

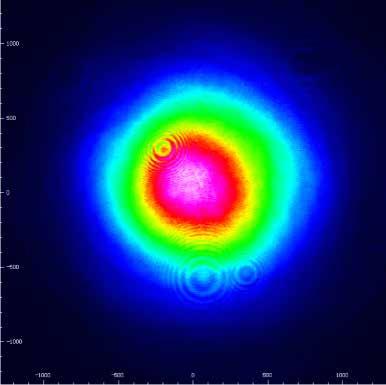

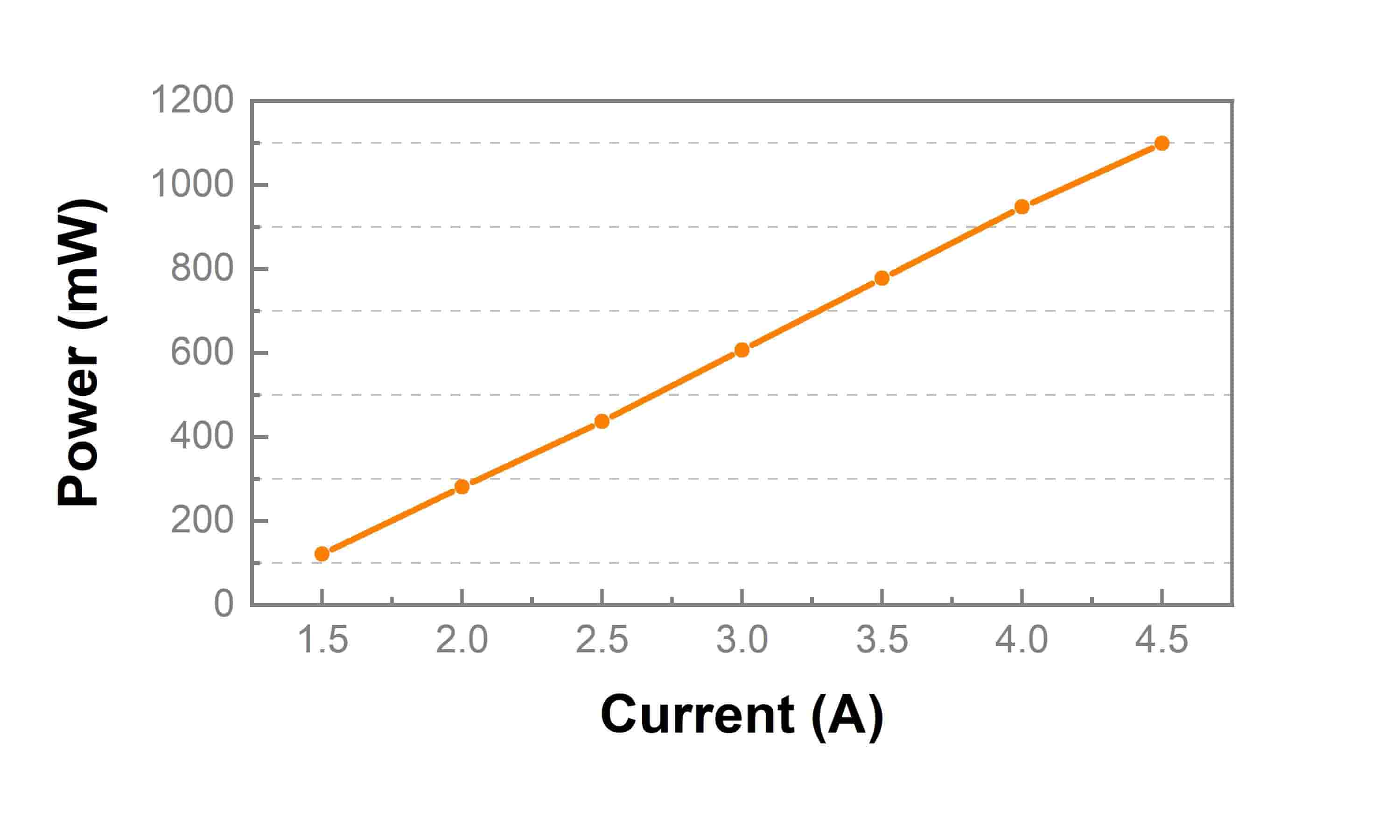

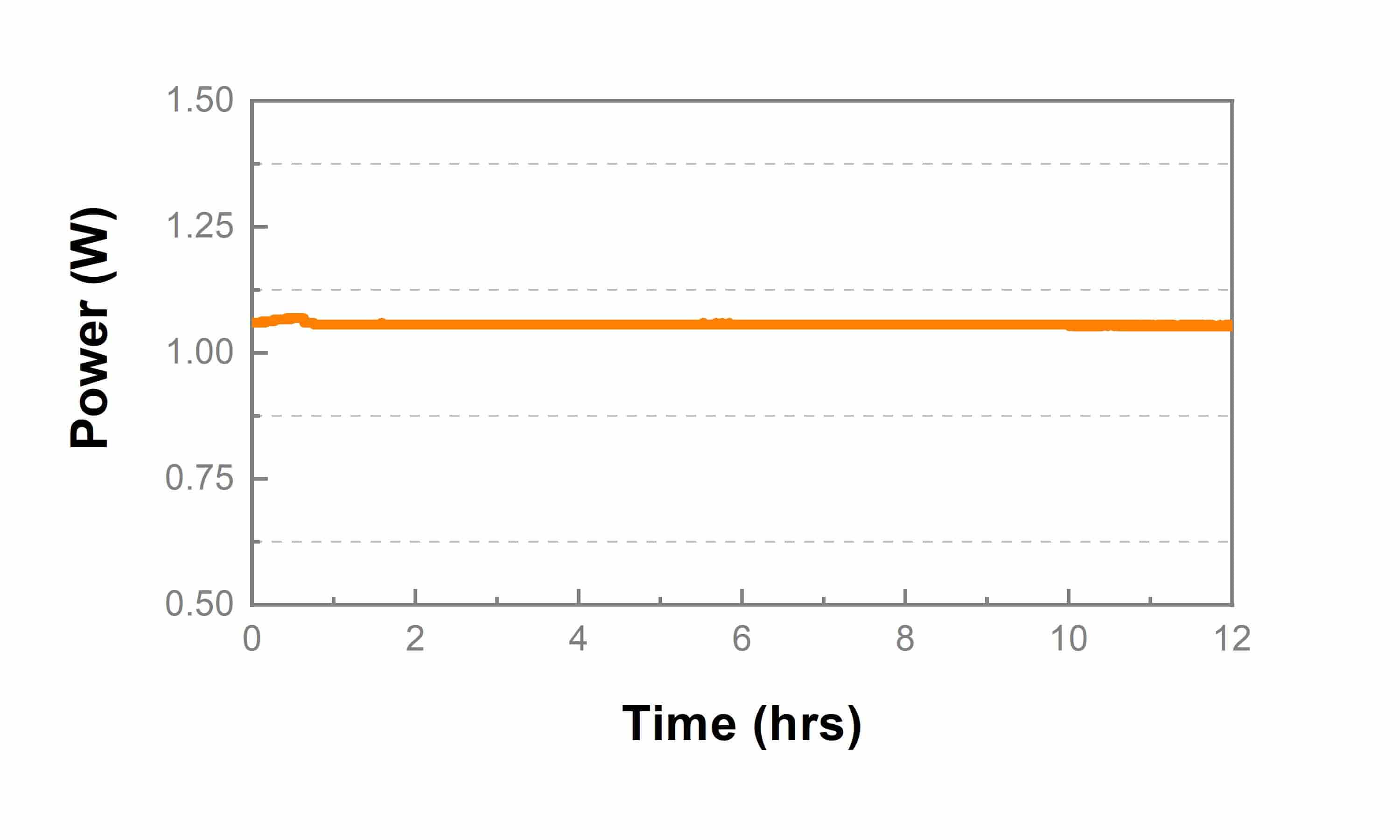

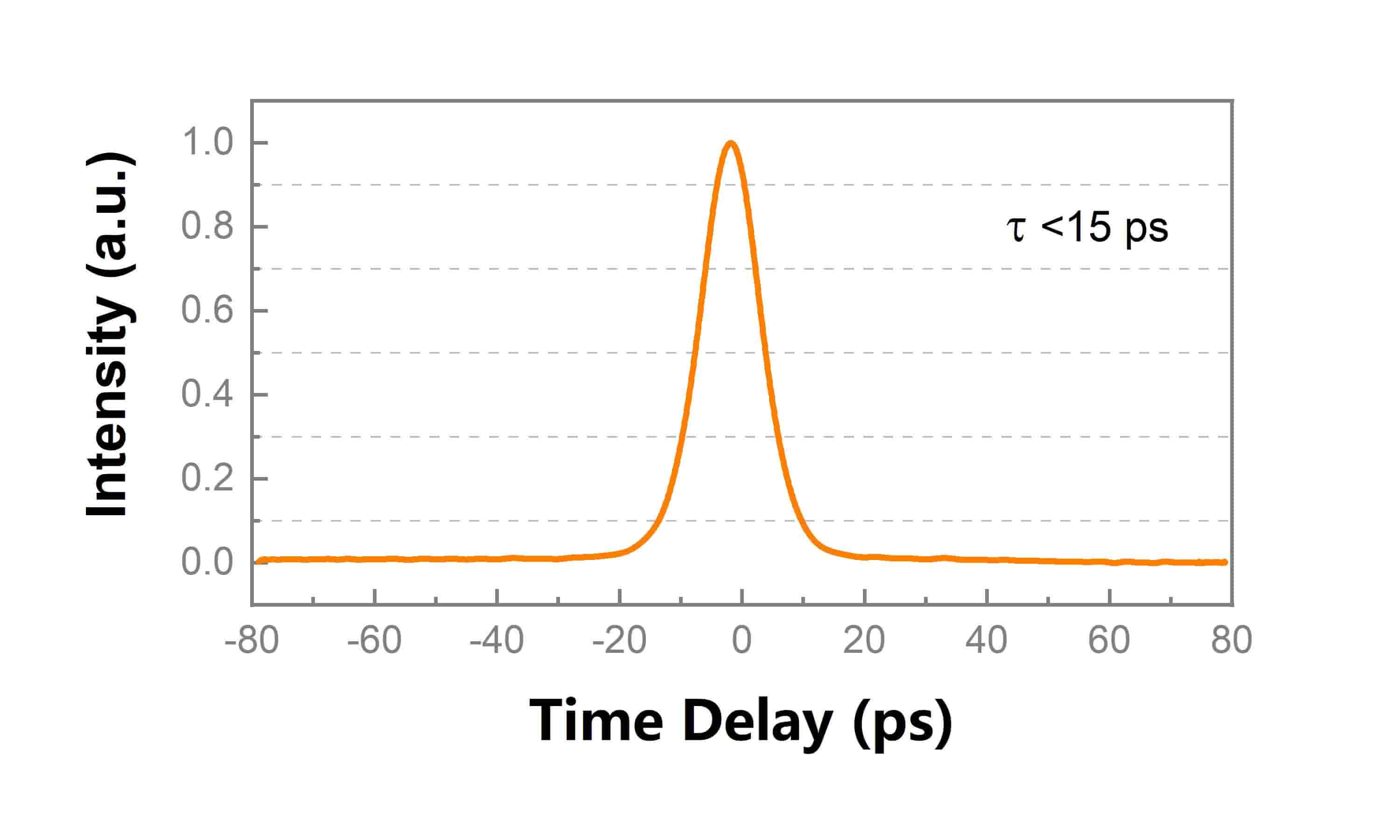

Testing Data

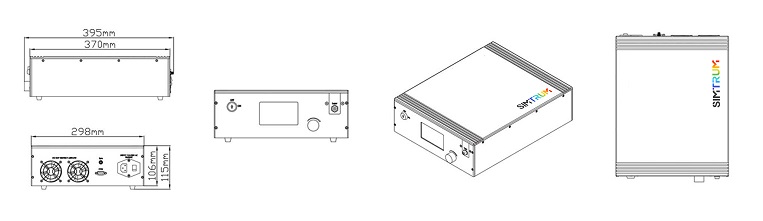

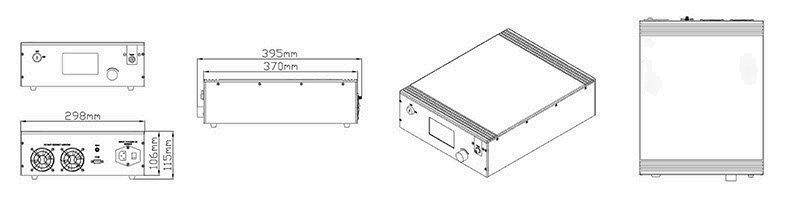

Dimensions

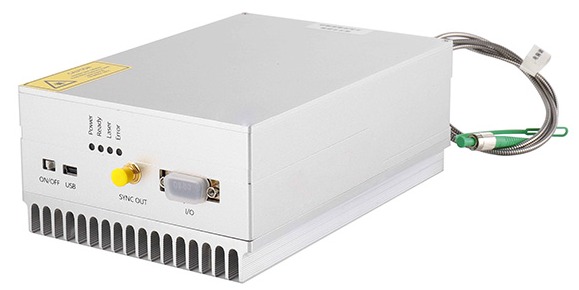

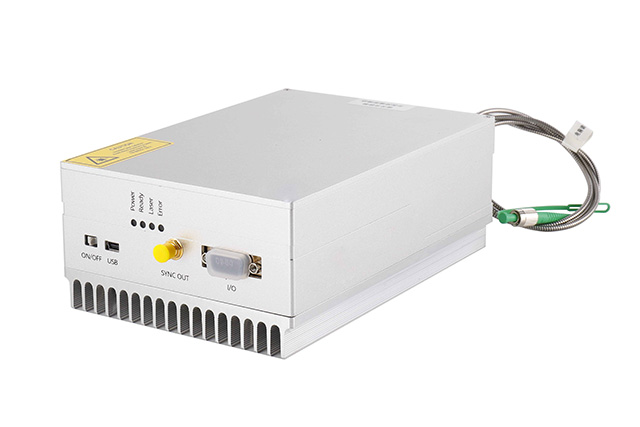

SIMTRUM provides the 1064 nm picosecond lasers with high output power, long operating lifetimes, good power stability and excellent beam quality. As a highly integrated product, the laser can be remotely controlled via software and is ideally suited for building optical and spectroscopic systems for a wide range of applications such as supercontinuum generation, amplifier seeding, nonlinear optics and laser metrology.
Features Power Stability ＜0.5% Compact Structure High Reliability Abundant Customisation Options	Applications Supercontinuum Generation Amplifier Seeding Sources Nonlinear Optics General Purpose Ultrafast LightSources Laser Metrology

Product Specifications

Product Number	LL-NP01-1064-15-50-200
Working Wavelength	1064±2 nm
Pulse Width	＜15 ps
Repetition Rate	50 MHz (20-50 MHz optional)
Average Output Power	＞200 mW
Average Power Stability（%）	≤0.5% RMS (12 hours@25℃）
Polarization Extinction Ratio (PER)	＞20 dB
Pigtail Length	1m (Customizable)
Output Type	PM/SM Fiber, FC/APC narrow key jumper
Supply Voltage	12 VDC
Operational Temperature	15-35℃
Operational Humidity	20~80% (non-condensing)
Dimensions	204×127×70 mm
Cooling	Air cooling

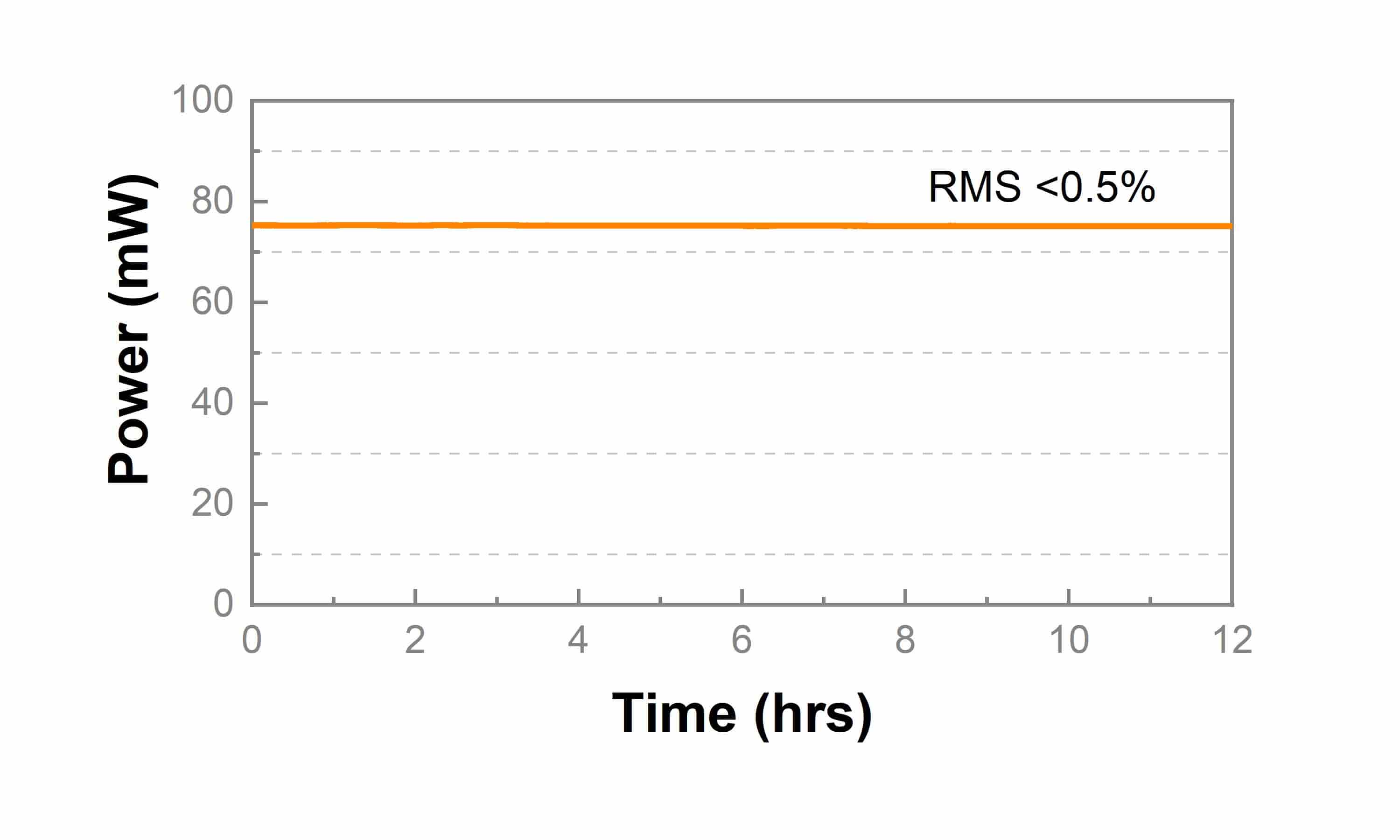

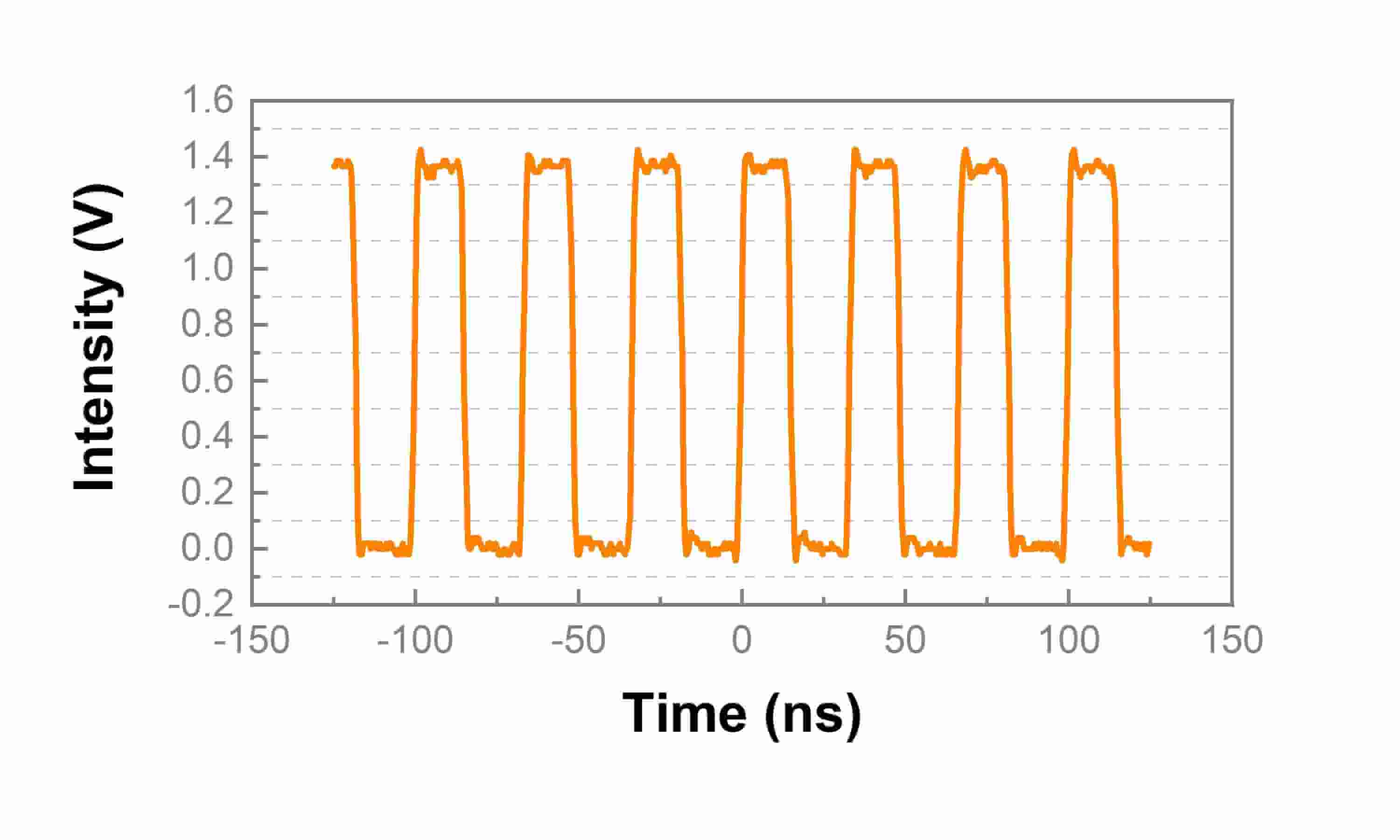

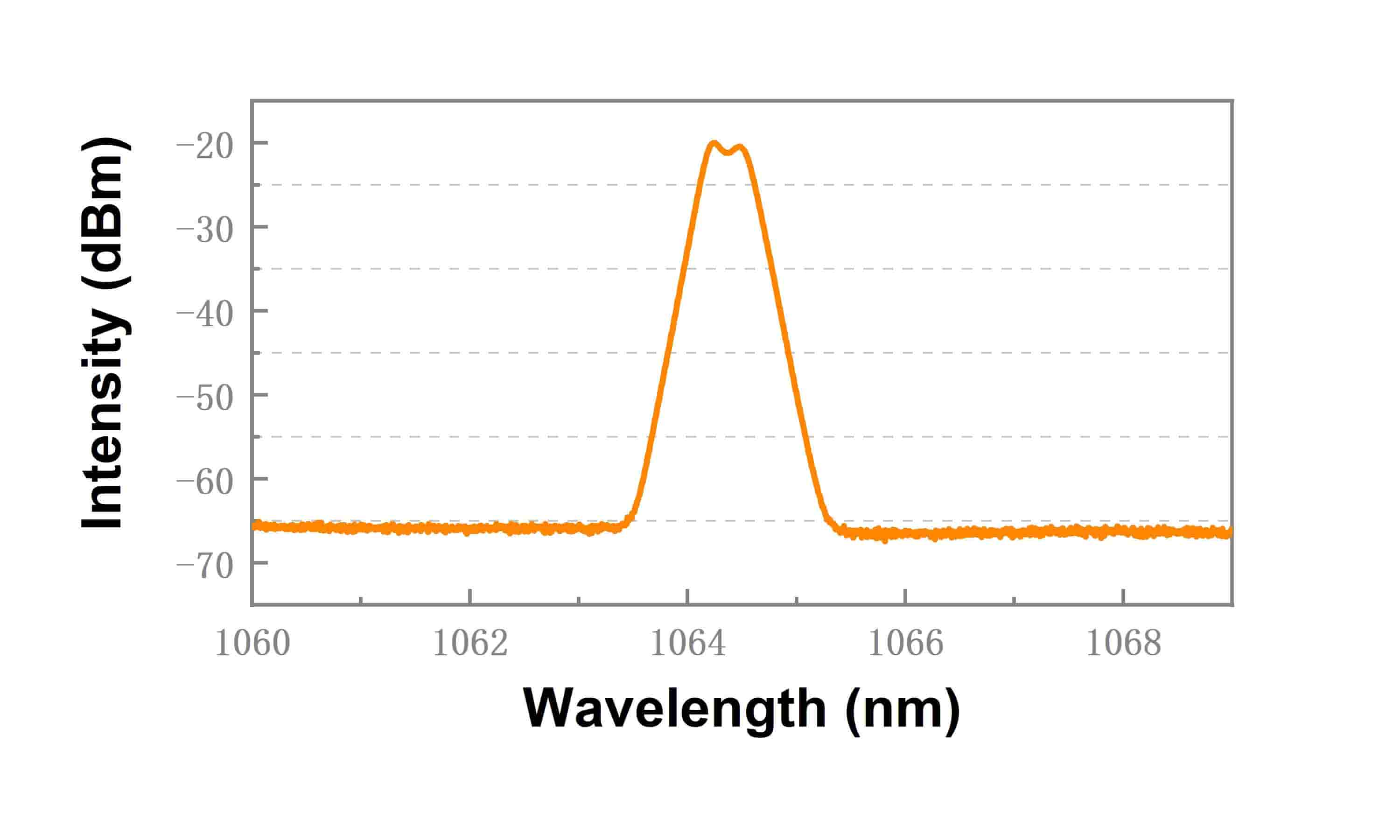

Testing Data

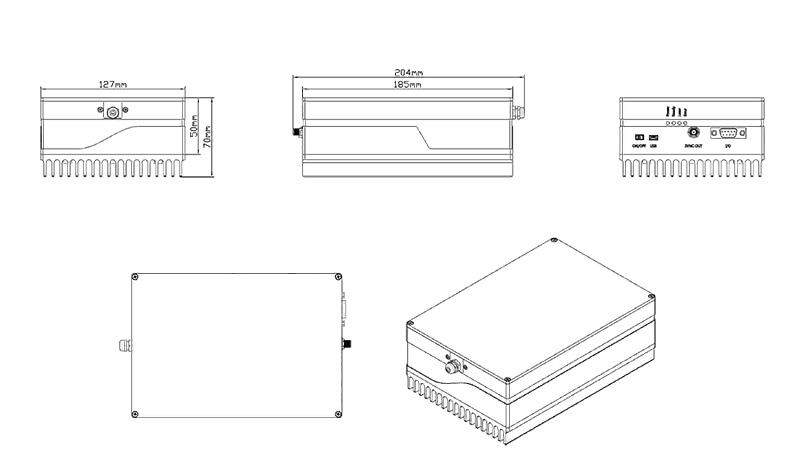

Dimensions

Type	Wavelength Options	Average Power Range	Pulse Width	Repetition Rate	Pulse Energy
266 nm High-performance Picosecond Laser	266 nm	＞100 mW	10-100 ps	20-80 MHz	/
515/532 nm Picosecond Laser	515/532 nm	1-200 mW	10/20/50/100 ps	15-100 MHz	＞0.5 nJ
532 nm High Power Picosecond Laser	532 nm	＞20 mW/ ＞1 W	＜15 ps/ ＜10 ps	20-80 MHz	/
532/1064 nm Dual Output Picosecond Laser	515-532/1030-1064 nm	700 mW/ 1W	＜15 ps	20-50 MHz	/
1030/1064 nm Picosecond Laser	1030/1064 nm	≥90mW	10/20/50/100 ps	15-100 MHz	＞1 nJ
1064 nm High Power Picosecond Laser	1064 nm	＞20 mW/ ＞1 W	＜15 ps	20-50 MHz	/
Dual Mode (CW & Pulse) 1550 nm Picosecond Laser	1550 nm	CW: -48 to -13 dBm Pulse: 1.5 mW	100 ps	1-1250 MHz	/
1560 nm Picosecond Laser	1530-1560 nm	1-120 mW	1/10/50/100 ps	20-100 MHz	＞1 nJ
1970 nm Picosecond Laser	1970 nm	＞4W	＜15 ps	80 MHz	50nJ

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items	Detail	Unit	Remark
Application
Working Wavelength		nm
Linewidth		nm
Output Power		W
Power Stability		%
Pulse Width		ps
Repetition Rate		MHz
Beam Quality (M2)		/
Polarization Extinction Ratio (PER)		dB

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		LL-NP01-1064-15-30-1000 Working Wavelength: 1064±2 nm ，Average Output Power: ＞1W ，Pulse Width: ＜15ps ，Repetition Rate: 30MHz (20-50 MHz optional) ，Power Stability: ≤0.5% RMS (12 hours@25℃) ，Cooling: Air-cooled		4-6 Weeks	Request for quote
		LL-NP01-1064-15-50-200 Working Wavelength: 1064±2 nm ,Output Power: ＞200 mW, Pulse Width: ＜15ps ,Repetition Rate: 50MHz (20-50 MHz optional) ,Power Stability: ≤0.5% RMS (12 hours@25℃) ,Cooling: Air-cooled		4-6 Weeks	Request for quote
