266 nm High-performance Picosecond Laser| SIMTRUM Photonics Store

Products / Lasers/Light /Fiber Lasers /Picosecond Pulse Fiber Laser (266nm-2μm) /266 nm High-performance Picosecond Laser /
266 nm High-performance Picosecond Laser
Overview Specifications Related Products Order Now!

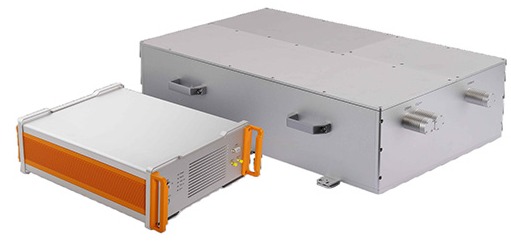

SIMTRUM provides the 266 nm picosecond lasers equipped with industrial-grade ultra-fast pump lasers and innovative frequency doubling technology, featuring high output power, long operating lifetimes, good power stability and excellent beam quality.

In addition, the laser can be configured with multiple output ports for different wavelengths. As a reliable and fully integrated turnkey system, the laser is used in a wide range of applications such as multiphoton microscopy, semiconductor inspection, two-photon lithography and materials science research.

Features

  • Excellent Beam Quality
  • Power Stability ＜2%
  • Long Operating Lifetimes
  • High Repetition Rate
  • Supports Multiple Outputs

Applications

  • Semiconductor wafer detection
  • Fluorescence Lifetime Measurement
  • Ultrafast spectroscopy
  • Marking and engraving
  • multiphoton microscopy
  • two-photon lithography

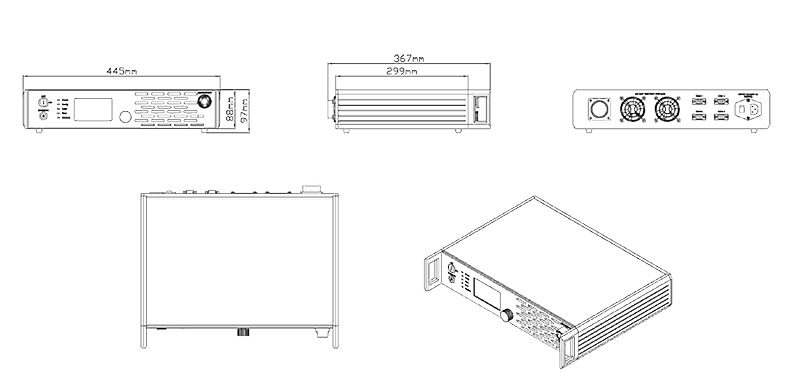

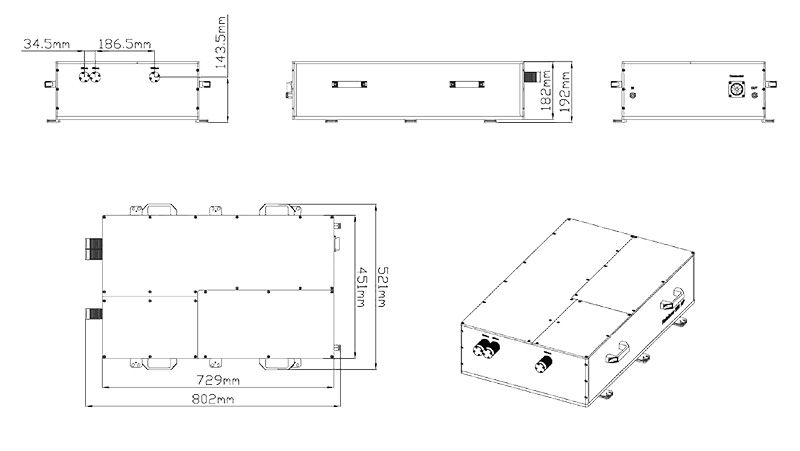

Dimensions

Product Specifications
Product Number LL-NP01-266-10-50-100

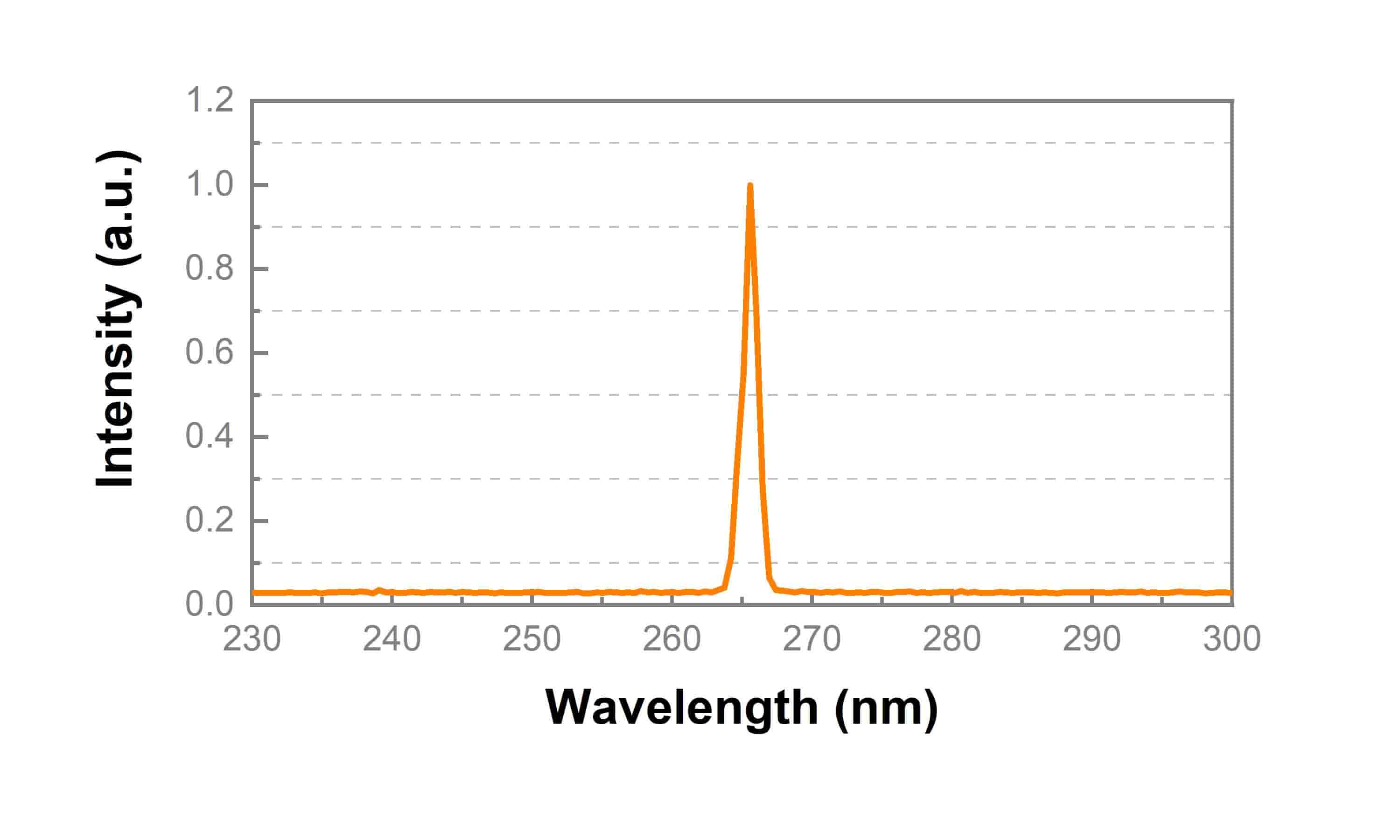

Working Wavelength 266±2 nm

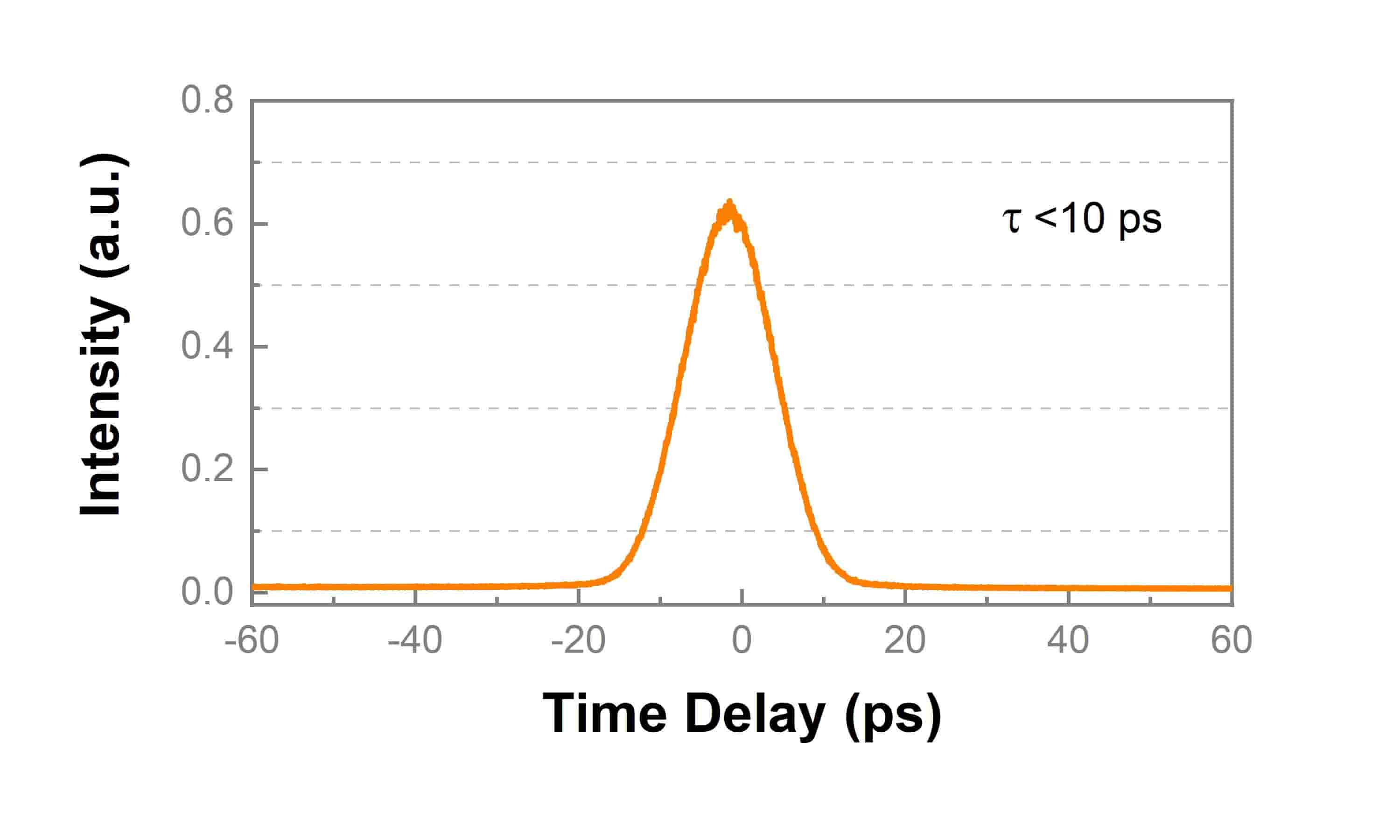

Pulse Width ＜10 ps (10-100 ps optional)

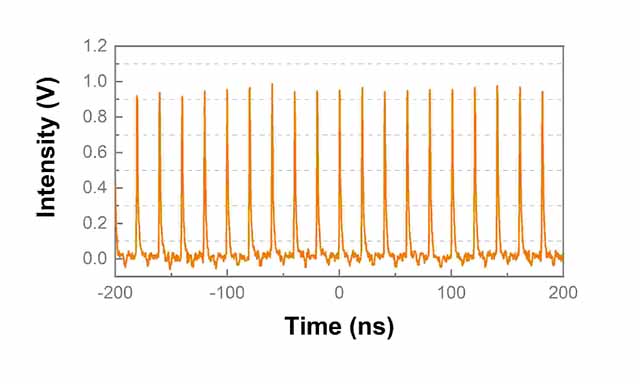

Repetition Rate 50 MHz (20-80 MHz optional)
Average Output Power ＞100 mW

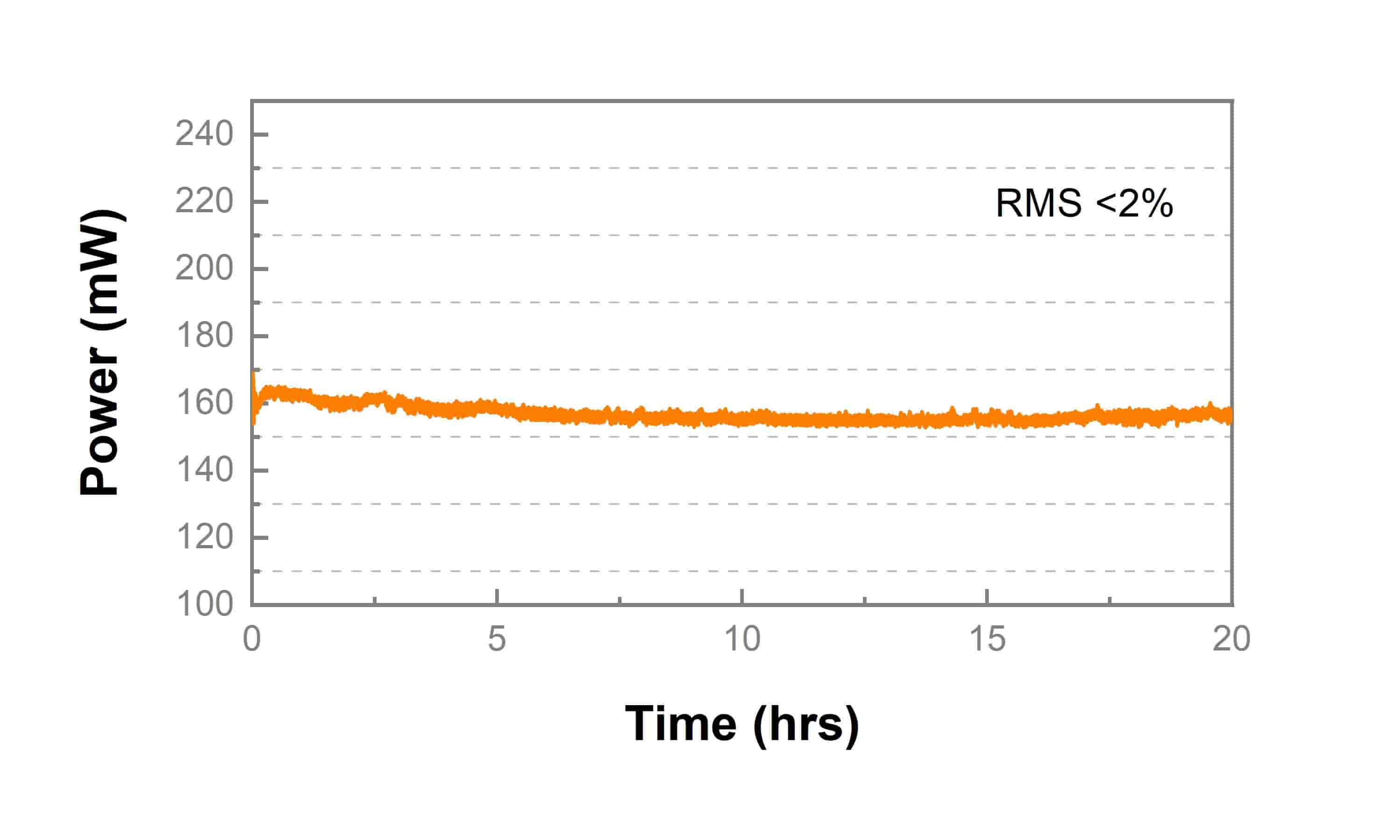

Average Power Stability（%） ≤2% RMS (12 hours@25℃）
Beam Quality M2＜1.3
Polarization Extinction Ratio (PER) ＞15 dB
Output Type Spatially collimated output
Supply Voltage 100-240 VAC
Operational Temperature 15-35℃
Operational Humidity 20~80% (non-condensing)
Dimensions 802×521×192 mm, 445×367×97 mm
Cooling Water cooling

Laser Characteristics

Type Wavelength Options Average Power Range Pulse Width Repetition Rate Pulse Energy
266 nm High-performance Picosecond Laser 266 nm ＞100 mW 10-100 ps 20-80 MHz /
515/532 nm Picosecond Laser 515/532 nm 1-200 mW 10/20/50/100 ps 15-100 MHz ＞0.5 nJ
532 nm High Power Picosecond Laser 532 nm ＞20 mW/ ＞1 W ＜15 ps/ ＜10 ps 20-80 MHz /
532/1064 nm Dual Output Picosecond Laser 515-532/1030-1064 nm 700 mW/ 1W ＜15 ps 20-50 MHz /
1030/1064 nm Picosecond Laser 1030/1064 nm ≥90mW 10/20/50/100 ps 15-100 MHz ＞1 nJ
1064 nm High Power Picosecond Laser 1064 nm ＞20 mW/ ＞1 W ＜15 ps 20-50 MHz /
Dual Mode (CW & Pulse)
1550 nm Picosecond Laser		 1550 nm CW: -48 to -13 dBm
Pulse: 1.5 mW		 100 ps 1-1250 MHz /
1560 nm Picosecond Laser 1530-1560 nm 1-120 mW 1/10/50/100 ps 20-100 MHz ＞1 nJ
1970 nm Picosecond Laser 1970 nm ＞4W ＜15 ps 80 MHz 50nJ






If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.
Items Detail Unit Remark
Application
Working Wavelength   nm
Linewidth   nm
Output Power   mW
Power Stability   %
Pulse Width   ps
Repetition Rate   MHz
Beam Quality (M2)   /
Polarization Extinction Ratio (PER)   dB




We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-NP01-266-10-50-100
Working Wavelength: 266±2 nm ,Average Output Power: 100mW ,Pulse Width: ＜10ps (10-100 ps optional), Repetition Rate: 50MHz (20-80 MHz optional) ,Power Stability: ≤2% RMS (12 hours@25℃) ,Beam Quality: M2＜1.3, Cooling: Water-cooled 		4-6 Weeks $82500.00

LL-NP01-266-10-50-100 - Parameter

LL-NP01-266-10-50-100 - Download
