SIMTRUM offers the Multi-mode narrow linewidth continuous-wave (CW) laser with the advantages of narrow linewidth, high side-mode suppression ratio (SMSR) and high power stability, which are mainly used in confocal raman microscopy, raman spectroscopy, fluorescence spectroscopy, laser particle analyzer and other fields.

Features

Narrow Linewidth (＜0.1 nm)
High SMSR (＞40dB)
High Power Stability (±2% @4h typ.)

Application

Confocal Raman Microscopy
Up-conversion Materials
Fluorescence Spectroscopy
Super-resolution Microscopy
Particle Analyzer
Biological Detection
Raman Spectroscopy

Product Specifications

Optical Parameters	Typical Value
Center Wavelength (nm)(Customized)	784/785	785/1064
Output Power (mW)	500/500	500/800
Wavelength Tolerance (nm)	±0.5 (each wavelength)
Linewidth (nm)	＜0.1
Wavelength Stability	±7pm@4h typ.
Power Stability	±2% @4h typ.
SMSR (dB)	＞40
General Parameters	Modules	System
Power Adjustment Range	0-100%
Warm up Time (min)	15
Modulation Input	/	Analog signal 0~5V
Control Interface	PH2.0-10P, USB	USB, BNC
Fiber Connector	FC/PC, SMA905
Output Fiber	105 μm, 0.22 NA
Supply Voltage	5VDC/2A	+5VDC
Power Consumption	＜5W typ.	＜20W typ.
Weight	＜150g	1.2kg
Dimensions (mm)	86×63.5×32	180×90×180

Ordering Information/ Product Number
Series	Package	Wavelength-Output Power	Fiber Connector
LL-RL01	DWM = Dual-Wavelength Module	784-785-500-500/785-1064-500-800	F = FC/PC
LL-RL01	DWS = Dual-Wavelength System	784-785-500-500/785-1064-500-800	S = SMA905

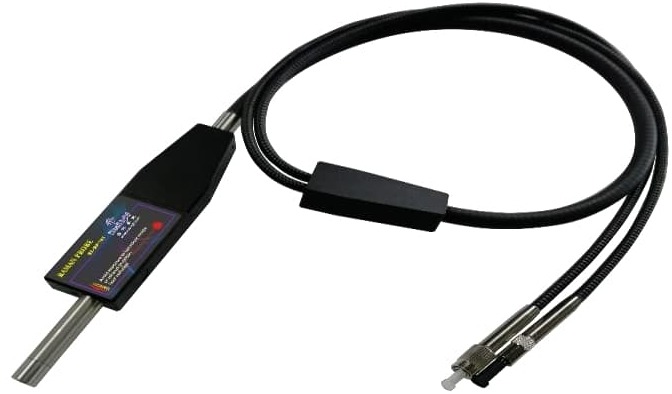

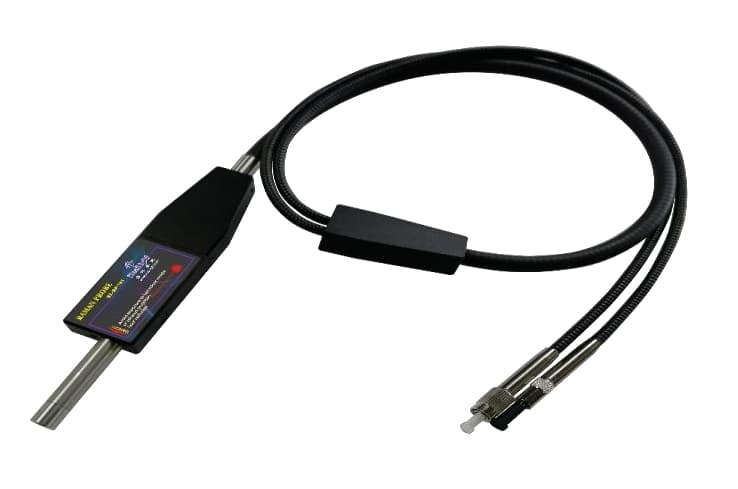

SIMTRUM offers the Raman probes with the advantages of high coupling efficiency, low Rayleigh noise and high stability.

Specifications

Product Number	LL-RL01-RP-532-(F/S)S	LL-RL01-RP-785-(F/S)S	LL-RL01-RP-830-(F/S)S	LL-RL01-RP-1064-(F/S)S
Center Wavelength (nm)	532	785	830	1064
Spectral Range (cm^-1)	176-4000	176-3500	176-2800	200-3000
Operation Mode	Fiber Pigtailed
Filter Cutoff Depth	OD6
Working Distance (mm)	7.5
Excitation Fiber	105 μm, NA0.22, SMA905 or FC/PC
Collection Fiber	200 μm, NA0.22, SMA905
Fiber Length (cm)	(100+30)±0.2
Working Temperature (℃)	10-30
Working Humidity	0-75%RH
Probe Dimensions (mm)	107x30x13

Related Products

Model	Wavelength Options	Linewidth	Output Power
Narrow Linewidth Package Module(532-1064 nm)	532-1064 nm	＜0.1~＜0.3 dBm	100-900 mW
Single-mode Narrow Linewidth Diode Lasers(785/1064 nm)	785/1064 nm	＜0.1 nm	100/300 mW
Multi-mode Narrow Linewidth Diode Lasers(638-1064 nm)	638/785/808/830/976/1064 nm	＜0.1~＜0.3 dBm	500/600/800 mW
Dual-wavelength Narrow Linewidth Diode Lasers(785/1064 nm)	784/785 nm,785/1064 nm	＜0.1 nm	500/800 mW

Technical Guide

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items	Detail	Unit	Remark
Application
Working Wavelength		nm
Linewidth		nm
Output Power		mW
Power Stability		%
Side-ode Suppression Ratio (SMSR)		dB

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
LL-RL01-MMS-638-500-F/S Multi-mode System Center Wavelength: 638nm； Output Power: 500mW； Linewidth: ＜0.1nm； Power Stability: ±2% @4h typ. SMSR: ＞35dB； Fiber Connector: FC/PC, SMA905	4~6 weeks	$2302.49
LL-RL01-MMS-785-600-F/S Multi-mode System Center Wavelength: 785nm； Output Power: 600mW； Linewidth: ＜0.1nm； Power Stability: ±2% @4h typ. SMSR: ＞40dB； Fiber Connector: FC/PC, SMA905	4~6 weeks	$2002.16
LL-RL01-MMS-808-600-F/S Multi-mode System Center Wavelength: 808nm； Output Power: 600mW； Linewidth: ＜0.3nm； Power Stability: ±2% @4h typ. SMSR: ＞40dB； Fiber Connector: FC/PC, SMA905	4~6 weeks	$2302.49
LL-RL01-MMS-830-600-F/S Multi-mode System Center Wavelength: 830nm； Output Power: 600mW； Linewidth: ＜0.1nm； Power Stability: ±2% @4h typ. SMSR: ＞40dB； Fiber Connector: FC/PC, SMA905	4~6 weeks	$2302.49
LL-RL01-MMS-976-800-F/S Multi-mode System Center Wavelength: 976nm； Output Power: 800mW； Linewidth: ＜0.3nm； Power Stability: ±2% @4h typ. SMSR: ＞40dB； Fiber Connector: FC/PC, SMA905	4~6 weeks	Request for quote
LL-RL01-MMS-1064-800-F/S Multi-mode System Center Wavelength: 1064nm； Output Power: 800mW； Linewidth: ＜0.1nm； Power Stability: ±2% @4h typ. SMSR: ＞40dB； Fiber Connector: FC/PC, SMA905	4~6 weeks	$2302.49

	Availability	Reference Price (USD)
LL-RL01-RP-532-(F/S)S Center Wavelength: 532nm； Spectral Range: 176-4000 cm-1； Excitation Fiber: 105 μm, NA0.22, SMA905 or FC/PC； Collection Fiber: 200 μm, NA0.22, SMA905；	4~6 weeks	$1626.76
LL-RL01-RP-785-(F/S)S Center Wavelength: 785nm； Spectral Range: 176-3500 cm-1； Excitation Fiber: 105 μm, NA0.22, SMA905 or FC/PC； Collection Fiber: 200 μm, NA0.22, SMA905	4~6 weeks	$1409.86
LL-RL01-RP-830-(F/S)S Center Wavelength: 830nm； Spectral Range: 176-2800 cm-1； Excitation Fiber: 105 μm, NA0.22, SMA905 or FC/PC； Collection Fiber: 200 μm, NA0.22, SMA905	4~6 weeks	$1626.76
LL-RL01-RP-1064-(F/S)S Center Wavelength: 1064nm； Spectral Range: 200-3000 cm-1； Excitation Fiber: 105 μm, NA0.22, SMA905 or FC/PC； Collection Fiber: 200 μm, NA0.22, SMA905	4~6 weeks	$1801.95
