Multi-mode Narrow Linewidth VBG Lasers (532-1064 nm)| SIMTRUM Photonics Store

Products / Lasers/Light /DPSS / Diode Lasers /CW Narrow Linewidth Diode Laser(532-1610 nm) /Multi-mode Narrow Linewidth VBG Lasers (532-1064 nm) /
Multi-mode Narrow Linewidth VBG Lasers (532-1064 nm)
Package Modules Module Accessories Related Products Order Now!

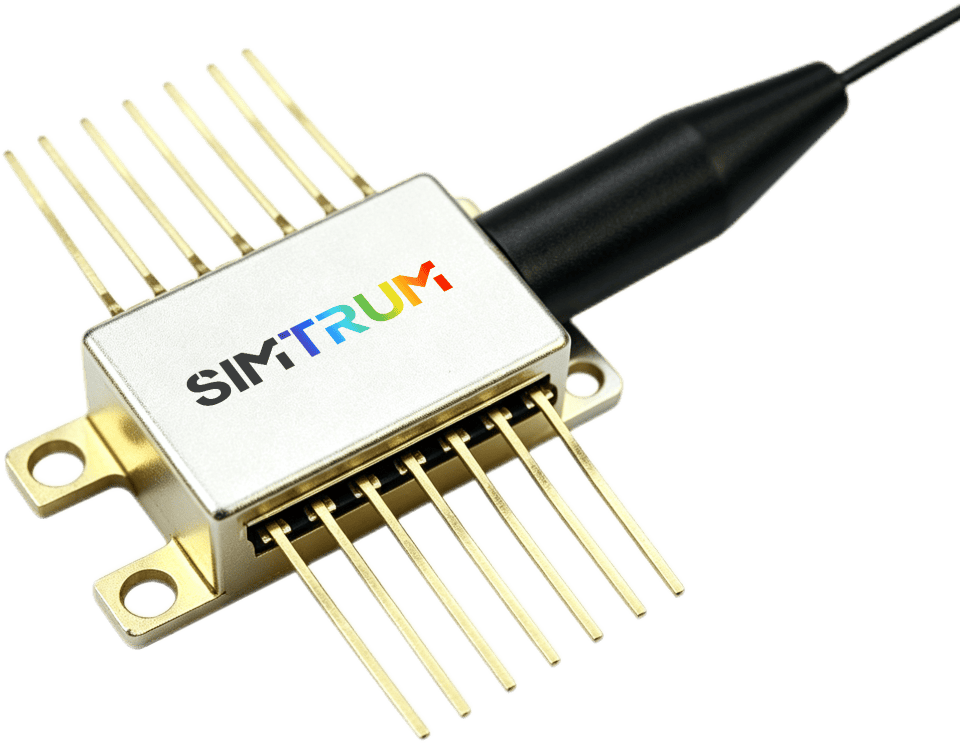

SIMTRUM offers the narrow linewidth package modules with the advantages of compact structure, narrow linewidth and high wavelength stability, which are mainly used in confocal raman microscopy, raman spectroscopy, fluorescence spectroscopy, laser particle analyzer and other fields

Features

  • Narrow Linewidth (＜0.1 nm)
  • Compact structure
  • High Wavelength Stability (＜10 pm@4h)

Application

  • Confocal Raman Microscopy
  • Up-conversion Materials
  • Fluorescence Spectroscopy
  • Super-resolution Microscopy
  • Particle Analyzer
  • Biological Detection
  • Raman Spectroscopy

Product Specifications
Multi-Mode
Working Wavelength (nm) 532 638 785 808 830 976 1064 784.5/785.5 785/1064
Output Power (mW) 100 500 600 600 600 900 800 600/600 500/800
Wavelength Tolerance (nm) ±0.5
Spectral Width (nm) ＜0.1 ＜0.3 ＜0.1 ＜0.3 ＜0.1
Wavelength Drift (Δλ/ΔT） 0.01nm/℃
Output Configuration Free Space/Fiber-coupled
Beam Mode Multi-Mode
Connector FC/PC, SMA905
Fiber Core 105μm, 0.22NA
Package 14SBTF/08LTR/R2T
Optional Functions PD, Thermistor, TEC

Ordering Information/ Product Number
Series Beam Mode Wavelength-Output Power Package Output Configuration
LL-RL01-NLPM MM = Multi-Mode 532-100; 638-500; 785-600; 808-600;
830-600; 976-900; 1064-800		 14SBTF/08LTR/R2T FS = Free Space
FC = Fiber-coupled
784.5/785.5-600/600; 785/1064-500/800

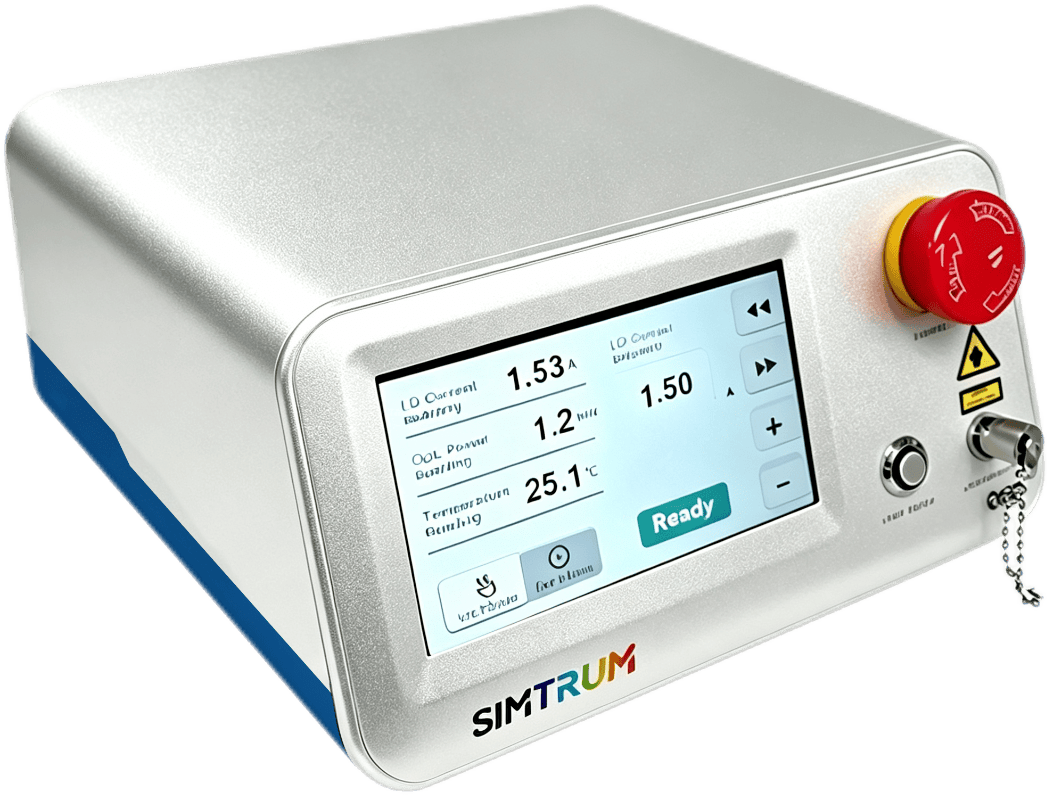

SIMTRUM offers the Multi-mode narrow linewidth continuous-wave (CW) laser with the advantages of narrow linewidth, high side-mode suppression ratio (SMSR) and high power stability, which are mainly used in confocal raman microscopy, raman spectroscopy, fluorescence spectroscopy, laser particle analyzer and other fields.

Features

  • Narrow Linewidth (＜0.1 nm)
  • High SMSR (＞40dB)
  • High Power Stability (±2% @4h typ.)

Application

  • Confocal Raman Microscopy
  • Up-conversion Materials
  • Fluorescence Spectroscopy
  • Super-resolution Microscopy
  • Particle Analyzer
  • Biological Detection
  • Raman Spectroscopy

Product Specifications

Product Series LL-RL01-MMM/MMS Product Series LL-RL01-DWM/DWS
Optical Parameters Typical Value Optical Parameters Typical Value
Center Wavelength (nm) 638 785 808 830 976 1064 Center Wavelength (nm)
(Customized)		 784/785 785/1064
Output Power (mW) 500 600 600 600 800 800 Output Power (mW) 500/500 500/800
Wavelength Tolerance (nm) ±0.5 Wavelength Tolerance (nm) ±0.5 (each wavelength)
Linewidth (nm) ＜0.1 ＜0.1 ＜0.3 ＜0.1 ＜0.3 ＜0.1 Linewidth (nm) ＜0.1
Wavelength Stability ±7pm@4h typ. Wavelength Stability ±7pm@4h typ.
Power Stability ±2% @4h typ. Power Stability ±2% @4h typ.
SMSR (dB) ＞35 ＞40 SMSR (dB) ＞40
General Parameters Module System General Parameters Modules System
Power Adjustment Range 0-100% Power Adjustment Range 0-100%
Warm up Time (min) 15 Warm up Time (min) 15
Modulation Input / Analog signal 0~5V Modulation Input / Analog signal 0~5V
Control Interface PH2.0-10P, USB USB, BNC Control Interface PH2.0-10P, USB USB, BNC
Fiber Connector FC/PC, SMA905 Fiber Connector FC/PC, SMA905
Output Fiber 105 μm, 0.22 NA Output Fiber 105 μm, 0.22 NA
Supply Voltage 5VDC/2A +5VDC Supply Voltage 5VDC/2A +5VDC
Power Consumption ＜5W typ. ＜20W typ. Power Consumption ＜5W typ. ＜20W typ.
Weight ＜150g 1.2kg Weight ＜150g 1.2kg
Dimensions (mm) 76.2×63.5×22 180×90×180 Dimensions (mm) 86×63.5×32 180×90×180



Ordering Information/ Product Number
Series Package Wavelength-Output Power Fiber Connector
LL-RL01 MMM = Multi-Mode Module 638-500/785-600/808-600/830-600/976-800/1064-800 F = FC/PC
MMS = Multi-Mode System S = SMA905
DWM = Dual-Wavelength Module 784-785-500-500/785-1064-500-800 F = FC/PC
DWS = Dual-Wavelength System S = SMA905





SIMTRUM offers the Raman probes with the advantages of high coupling efficiency, low Rayleigh noise and high stability.

Specifications

Product Number LL-RL01-RP-
532-(F/S)S		 LL-RL01-RP-
785-(F/S)S		 LL-RL01-RP-
830-(F/S)S		 LL-RL01-RP-
1064-(F/S)S










Center Wavelength (nm) 532 785 830 1064
Spectral Range (cm-1) 176-4000 176-3500 176-2800 200-3000
Operation Mode Fiber Pigtailed
Filter Cutoff Depth OD6
Working Distance (mm) 7.5
Excitation Fiber 105 μm, NA0.22, SMA905 or FC/PC
Collection Fiber 200 μm, NA0.22, SMA905
Fiber Length (cm) (100+30)±0.2
Working Temperature (℃) 10-30
Working Humidity 0-75%RH
Probe Dimensions (mm) 107x30x13


Related Products

Model Wavelength Options Linewidth Output Power
Narrow Linewidth Package Module(532-1064 nm) 532-1064 nm ＜0.1~＜0.3 dBm 100-900 mW
Single-mode Narrow Linewidth Diode Lasers(785/1064 nm) 785/1064 nm ＜0.1 nm 100/300 mW
Multi-mode Narrow Linewidth Diode Lasers(638-1064 nm) 638/785/808/830/976/1064 nm ＜0.1~＜0.3 dBm 500/600/800 mW
Dual-wavelength Narrow Linewidth Diode Lasers(785/1064 nm) 784/785 nm,785/1064 nm ＜0.1 nm 500/800 mW






Technical Guide
If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.
Items Detail Unit Remark
Application
Working Wavelength   nm
Linewidth   nm
Output Power   mW
Power Stability   %
Side-ode Suppression Ratio (SMSR)   dB




We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-RL01-NLPM-MM-532-100-14SBTF-FC
Package Multi-mode； Working Wavelength: 532nm； Output Power: 100mW； Spectrak Width: ＜0.1nm； 14SBTF； Fiber-Coupled 		4~6 weeks Request for quote
LL-RL01-NLPM-MM-638-500-14SBTF-FC
Package Multi-mode； Working Wavelength: 638nm； Output Power: 500mW； Spectrak Width: ＜0.1nm； 14SBTF； Fiber-Coupled 		4~6 weeks Request for quote
LL-RL01-NLPM-MM-785-600-14SBTF-FC
Package Multi-mode； Working Wavelength: 785nm； Output Power: 600mW； Spectrak Width: ＜0.1nm； 14SBTF； Fiber-Coupled 		4~6 weeks Request for quote
LL-RL01-NLPM-MM-808-600-14SBTF-FC
Package Multi-mode； Working Wavelength: 808nm； Output Power: 600mW； Spectrak Width: ＜0.3nm； 14SBTF； Fiber-Coupled 		4~6 weeks Request for quote
LL-RL01-NLPM-MM-830-600-14SBTF-FC
Package Multi-mode； Working Wavelength: 830nm； Output Power: 600mW； Spectrak Width: ＜0.1nm； 14SBTF； Fiber-Coupled 		4~6 weeks Request for quote
LL-RL01-NLPM-MM-976-900-14SBTF-FC
Package Multi-mode； Working Wavelength: 976nm； Output Power: 900mW； Spectrak Width: ＜0.3nm； 14SBTF； Fiber-Coupled 		4~6 weeks Request for quote
LL-RL01-NLPM-MM-1064-800-14SBTF-FC
Package Multi-mode； Working Wavelength: 1064nm； Output Power: 800mW； Spectrak Width: ＜0.1nm； 14SBTF； Fiber-Coupled 		4~6 weeks Request for quote
LL-RL01-NLPM-MM-784.5/785.5-600/600-R2T-FC
Package Multi-mode； Working Wavelength: 784.5/785.5nm； Output Power: 600/600mW； Spectrak Width: ＜0.1nm； R2T； Fiber-Coupled 		4~6 weeks Request for quote
LL-RL01-NLPM-MM-785/1064-500/800-R2T-FC
Package Multi-mode； Working Wavelength: 785/1064nm； Output Power: 500/800mW； Spectrak Width: ＜0.1nm； R2T； Fiber-Coupled 		4~6 weeks Request for quote
LL-RL01-MMS-638-500-F/S
Multi-mode System Center Wavelength: 638nm； Output Power: 500mW； Linewidth: ＜0.1nm； Power Stability: ±2% @4h typ. SMSR: ＞35dB； Fiber Connector: FC/PC, SMA905 		4~6 weeks Request for quote
LL-RL01-MMS-785-600-F/S
Multi-mode System Center Wavelength: 785nm； Output Power: 600mW； Linewidth: ＜0.1nm； Power Stability: ±2% @4h typ. SMSR: ＞40dB； Fiber Connector: FC/PC, SMA905 		4~6 weeks Request for quote
LL-RL01-MMS-808-600-F/S
Multi-mode System Center Wavelength: 808nm； Output Power: 600mW； Linewidth: ＜0.3nm； Power Stability: ±2% @4h typ. SMSR: ＞40dB； Fiber Connector: FC/PC, SMA905 		4~6 weeks Request for quote
LL-RL01-MMS-830-600-F/S
Multi-mode System Center Wavelength: 830nm； Output Power: 600mW； Linewidth: ＜0.1nm； Power Stability: ±2% @4h typ. SMSR: ＞40dB； Fiber Connector: FC/PC, SMA905 		4~6 weeks Request for quote
LL-RL01-MMS-976-800-F/S
Multi-mode System Center Wavelength: 976nm； Output Power: 800mW； Linewidth: ＜0.3nm； Power Stability: ±2% @4h typ. SMSR: ＞40dB； Fiber Connector: FC/PC, SMA905 		4~6 weeks Request for quote
LL-RL01-MMS-1064-800-F/S
Multi-mode System Center Wavelength: 1064nm； Output Power: 800mW； Linewidth: ＜0.1nm； Power Stability: ±2% @4h typ. SMSR: ＞40dB； Fiber Connector: FC/PC, SMA905 		4~6 weeks Request for quote
LL-RL01-DWS-784-785-500-500-F/S
Dual-Wavelength System Center Wavelength: 784/785nm； Output Power: 500/500mW； Linewidth: ＜0.1nm； Power Stability: ±2% @4h typ. SMSR: ＞40dB； Fiber Connector: FC/PC, SMA905 		4~6 weeks Request for quote
LL-RL01-DWS-785-1064-500-800-F/S
Dual-Wavelength System Center Wavelength: 785/1064nm； Output Power: 500/800mW； Linewidth: ＜0.1nm； Power Stability: ±2% @4h typ.； SMSR: ＞40dB； Fiber Connector: FC/PC, SMA905 		4-6 Weeks Request for quote

LL-RL01-RP-1064-(F/S)S - Parameter

LL-RL01-RP-830-(F/S)S - Parameter

LL-RL01-RP-785-(F/S)S - Parameter

LL-RL01-RP-532-(F/S)S - Parameter

LL-RL01-DWS-785-1064-500-800-F/S - Parameter

LL-RL01-DWS-784-785-500-500-F/S - Parameter

LL-RL01-MMS-1064-800-F/S - Parameter

LL-RL01-MMS-976-800-F/S - Parameter

LL-RL01-MMS-830-600-F/S - Parameter

LL-RL01-MMS-808-600-F/S - Parameter

LL-RL01-MMS-785-600-F/S - Parameter

LL-RL01-MMS-638-500-F/S - Parameter

LL-RL01-NLPM-MM-785/1064-500/800-R2T-FC - Parameter

LL-RL01-NLPM-MM-784.5/785.5-600/600-R2T-FC - Parameter

LL-RL01-NLPM-MM-1064-800-14SBTF-FC - Parameter

LL-RL01-NLPM-MM-976-900-14SBTF-FC - Parameter

LL-RL01-NLPM-MM-830-600-14SBTF-FC - Parameter

LL-RL01-NLPM-MM-808-600-14SBTF-FC - Parameter

LL-RL01-NLPM-MM-785-600-14SBTF-FC - Parameter

LL-RL01-NLPM-MM-638-500-14SBTF-FC - Parameter

LL-RL01-NLPM-MM-532-100-14SBTF-FC - Parameter

LL-RL01-RP-1064-(F/S)S - Download

LL-RL01-RP-830-(F/S)S - Download

LL-RL01-RP-785-(F/S)S - Download

LL-RL01-RP-532-(F/S)S - Download

LL-RL01-DWS-785-1064-500-800-F/S - Download

LL-RL01-DWS-784-785-500-500-F/S - Download

LL-RL01-MMS-1064-800-F/S - Download

LL-RL01-MMS-976-800-F/S - Download

LL-RL01-MMS-830-600-F/S - Download

LL-RL01-MMS-808-600-F/S - Download

LL-RL01-MMS-785-600-F/S - Download

LL-RL01-MMS-638-500-F/S - Download

LL-RL01-NLPM-MM-785/1064-500/800-R2T-FC - Download

LL-RL01-NLPM-MM-784.5/785.5-600/600-R2T-FC - Download

LL-RL01-NLPM-MM-1064-800-14SBTF-FC - Download

LL-RL01-NLPM-MM-976-900-14SBTF-FC - Download

LL-RL01-NLPM-MM-830-600-14SBTF-FC - Download

LL-RL01-NLPM-MM-808-600-14SBTF-FC - Download

LL-RL01-NLPM-MM-785-600-14SBTF-FC - Download

LL-RL01-NLPM-MM-638-500-14SBTF-FC - Download

LL-RL01-NLPM-MM-532-100-14SBTF-FC - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-RL01-RP-532-(F/S)S
Center Wavelength: 532nm； Spectral Range: 176-4000 cm-1； Excitation Fiber: 105 μm, NA0.22, SMA905 or FC/PC； Collection Fiber: 200 μm, NA0.22, SMA905； 		4~6 weeks Request for quote
LL-RL01-RP-785-(F/S)S
Center Wavelength: 785nm； Spectral Range: 176-3500 cm-1； Excitation Fiber: 105 μm, NA0.22, SMA905 or FC/PC； Collection Fiber: 200 μm, NA0.22, SMA905 		4~6 weeks Request for quote
LL-RL01-RP-830-(F/S)S
Center Wavelength: 830nm； Spectral Range: 176-2800 cm-1； Excitation Fiber: 105 μm, NA0.22, SMA905 or FC/PC； Collection Fiber: 200 μm, NA0.22, SMA905 		4~6 weeks Request for quote
LL-RL01-RP-1064-(F/S)S
Center Wavelength: 1064nm； Spectral Range: 200-3000 cm-1； Excitation Fiber: 105 μm, NA0.22, SMA905 or FC/PC； Collection Fiber: 200 μm, NA0.22, SMA905 		4~6 weeks Request for quote
