Single-mode Narrow Linewidth Diode Lasers (785/1064 nm)| SIMTRUM Photonics Store

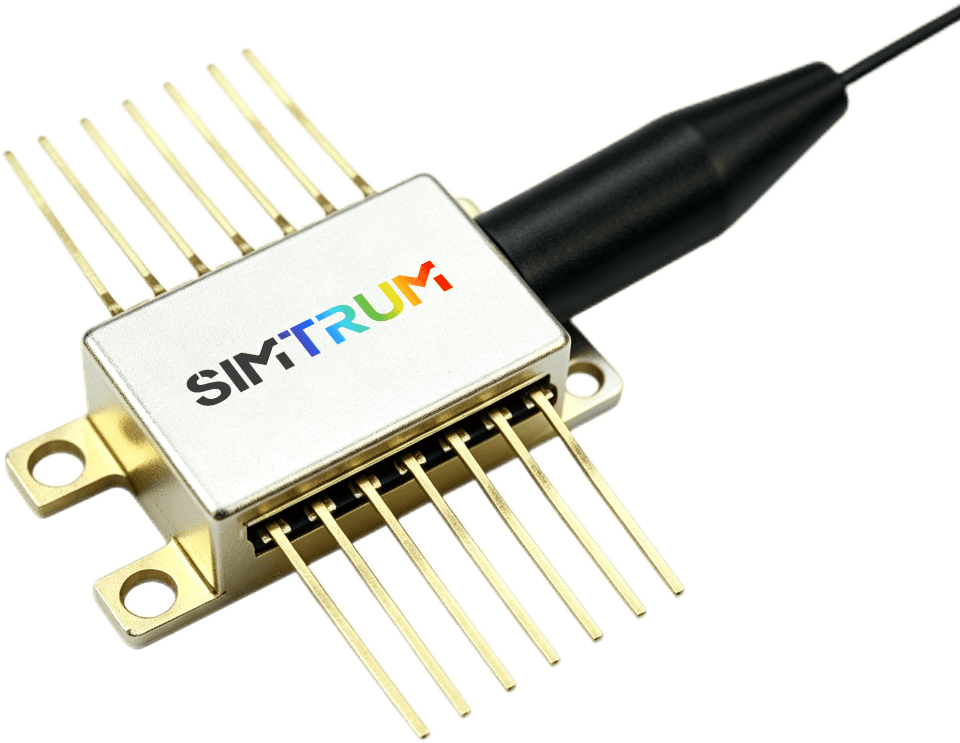

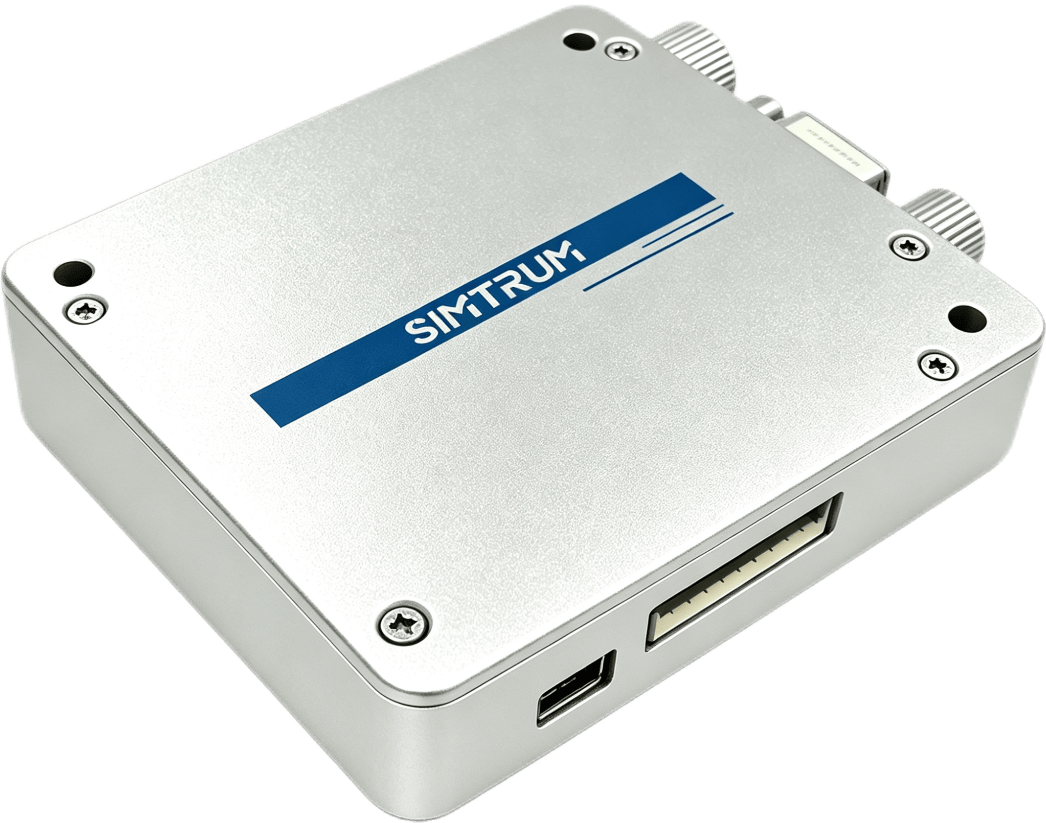

SIMTRUM offers the Single-mode narrow linewidth continuous-wave (CW) laser with the advantages of narrow linewidth, high side-mode suppression ratio (SMSR) and high power stability, which are mainly used in confocal raman microscopy, raman spectroscopy, fluorescence spectroscopy, laser particle analyzer and other fields.

Features

Narrow Linewidth (＜0.1 nm)
High SMSR (＞40dB)
High Power Stability (±2% @4h typ.)

Application

Confocal Raman Microscopy
Up-conversion Materials
Fluorescence Spectroscopy
Super-resolution Microscopy
Particle Analyzer
Biological Detection
Raman Spectroscopy

Product Specifications

Product Number	LL-RL01-SMM-785-100	LL-RL01-SMM-1064-300
Center Wavelength (nm)	785	1064
Output Power (mW)	100	300
Wavelength Tolerance (nm)	±0.5
Linewidth (nm)	＜0.1
Wavelength Stability	±7pm@4h typ.
Power Stability	±2% @4h typ.
SMSR (dB)	＞40	35-45
Power Adjustment Range	0-100%
Warm up Time (min)	15
Control Interface	PH2.0-10P, USB
Supply Voltage	5VDC/2A
Power Consumption	＜5W typ.
Weight (g)	＜150
Dimensions (mm)	76.2×63.5×22

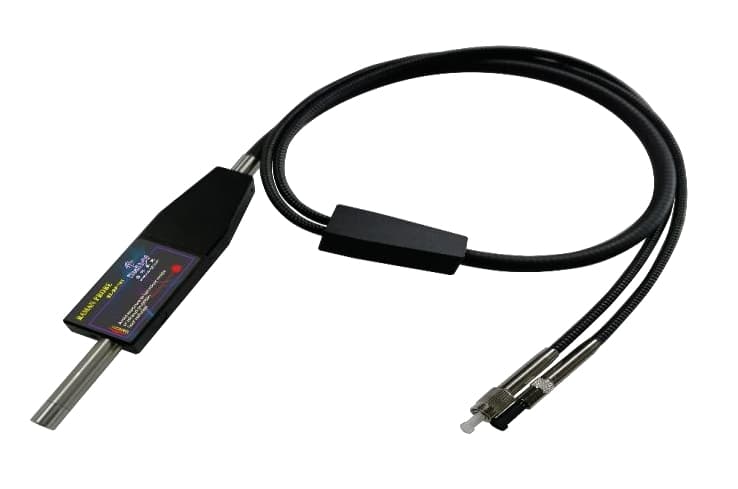

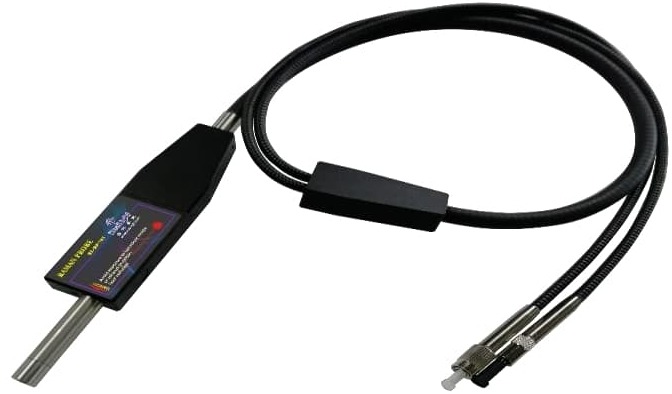

SIMTRUM offers the Raman probes with the advantages of high coupling efficiency, low Rayleigh noise and high stability.

Specifications

Product Number	LL-RL01-RP-532-(F/S)S	LL-RL01-RP-785-(F/S)S	LL-RL01-RP-830-(F/S)S	LL-RL01-RP-1064-(F/S)S
Center Wavelength (nm)	532	785	830	1064
Spectral Range (cm^-1)	176-4000	176-3500	176-2800	200-3000
Operation Mode	Fiber Pigtailed
Filter Cutoff Depth	OD6
Working Distance (mm)	7.5
Excitation Fiber	105 μm, NA0.22, SMA905 or FC/PC
Collection Fiber	200 μm, NA0.22, SMA905
Fiber Length (cm)	(100+30)±0.2
Working Temperature (℃)	10-30
Working Humidity	0-75%RH
Probe Dimensions (mm)	107x30x13

Related Products

Model	Wavelength Options	Linewidth	Output Power
Narrow Linewidth Package Module(532-1064 nm)	532-1064 nm	＜0.1~＜0.3 dBm	100-900 mW
Single-mode Narrow Linewidth Diode Lasers(785/1064 nm)	785/1064 nm	＜0.1 nm	100/300 mW
Multi-mode Narrow Linewidth Diode Lasers(638-1064 nm)	638/785/808/830/976/1064 nm	＜0.1~＜0.3 dBm	500/600/800 mW
Dual-wavelength Narrow Linewidth Diode Lasers(785/1064 nm)	784/785 nm,785/1064 nm	＜0.1 nm	500/800 mW

Technical Guide

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items	Detail	Unit	Remark
Application
Working Wavelength		nm
Linewidth		nm
Output Power		mW
Power Stability		%
Side-ode Suppression Ratio (SMSR)		dB

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		LL-RL01-SMM-785-100 Single-mode Center Wavelength: 785nm； Output Power: 100mW； Linewidth: ＜0.1nm； Power Stability: ±2% @4h typ. SMSR: ＞40dB		4~6 weeks	Request for quote
		LL-RL01-SMM-1064-300 Single-mode Center Wavelength: 1064nm； Output Power: 300mW； Linewidth: ＜0.1nm； Power Stability: ±2% @4h typ. SMSR: 35-45dB		4~6 weeks	Request for quote

	Availability	Reference Price (USD)
LL-RL01-RP-532-(F/S)S Center Wavelength: 532nm； Spectral Range: 176-4000 cm-1； Excitation Fiber: 105 μm, NA0.22, SMA905 or FC/PC； Collection Fiber: 200 μm, NA0.22, SMA905；	4~6 weeks	Request for quote
LL-RL01-RP-785-(F/S)S Center Wavelength: 785nm； Spectral Range: 176-3500 cm-1； Excitation Fiber: 105 μm, NA0.22, SMA905 or FC/PC； Collection Fiber: 200 μm, NA0.22, SMA905	4~6 weeks	Request for quote
LL-RL01-RP-830-(F/S)S Center Wavelength: 830nm； Spectral Range: 176-2800 cm-1； Excitation Fiber: 105 μm, NA0.22, SMA905 or FC/PC； Collection Fiber: 200 μm, NA0.22, SMA905	4~6 weeks	Request for quote
LL-RL01-RP-1064-(F/S)S Center Wavelength: 1064nm； Spectral Range: 200-3000 cm-1； Excitation Fiber: 105 μm, NA0.22, SMA905 or FC/PC； Collection Fiber: 200 μm, NA0.22, SMA905	4~6 weeks	Request for quote
