Portable Fceo Detection Module | SIMTRUM Photonics Store

Products / Lasers/Light /Optical Frequency Comb /Optical Frequency Comb Accessories /Portable Fceo Detection Module /
Portable Fceo Detection Module
Overview Specifications Related Products Order Now!
SIMTRUM provides portable Fceo detection modules optimised for complex spatial optical paths, which are portable, modular and have high signal-to-noise ratios by precisely controlling the spreading range, stacking low-noise and high-gain APD circuits, and integrating the packaging approach. It is suitable for femtosecond light sources with low to medium repetition rates, and can effectively simplify the design of optical frequency comb systems.

Features

  • High Signal-to-Noise Ratio
  • Portable
  • Modular

Applications

  • Carrier Envelope Offset Frequency (Fceo) Signal Detection
  • Optical Frequency Combs

Product Specifications
Technical Specifications Minimum Typical Value Maximum
Product Number LL-HM01-OFC-FCEO-1560
Input Pulse Center Wavelength 1560±10 nm
Input Pulse Repetition Rate 100 MHz 100 MHz 250 MHz
Input Pulse Energy ~2 nJ
Input Pulse Width / ＜50 fs 120 fs
Output the signal-to-noise ratio of fceo signal 25 dB 30 dB 35 dB
Operation Temperature 15~30 ℃
Storage Temperature -40~+85 ℃
Power Supply 12/0.5 A
Output RF Interface SMA
Input Fiber Type PM HNLF
Input Fiber Connector FC/APC
Specification Size 90*50*15 mm
Weight ＜1 kg

Testing Data

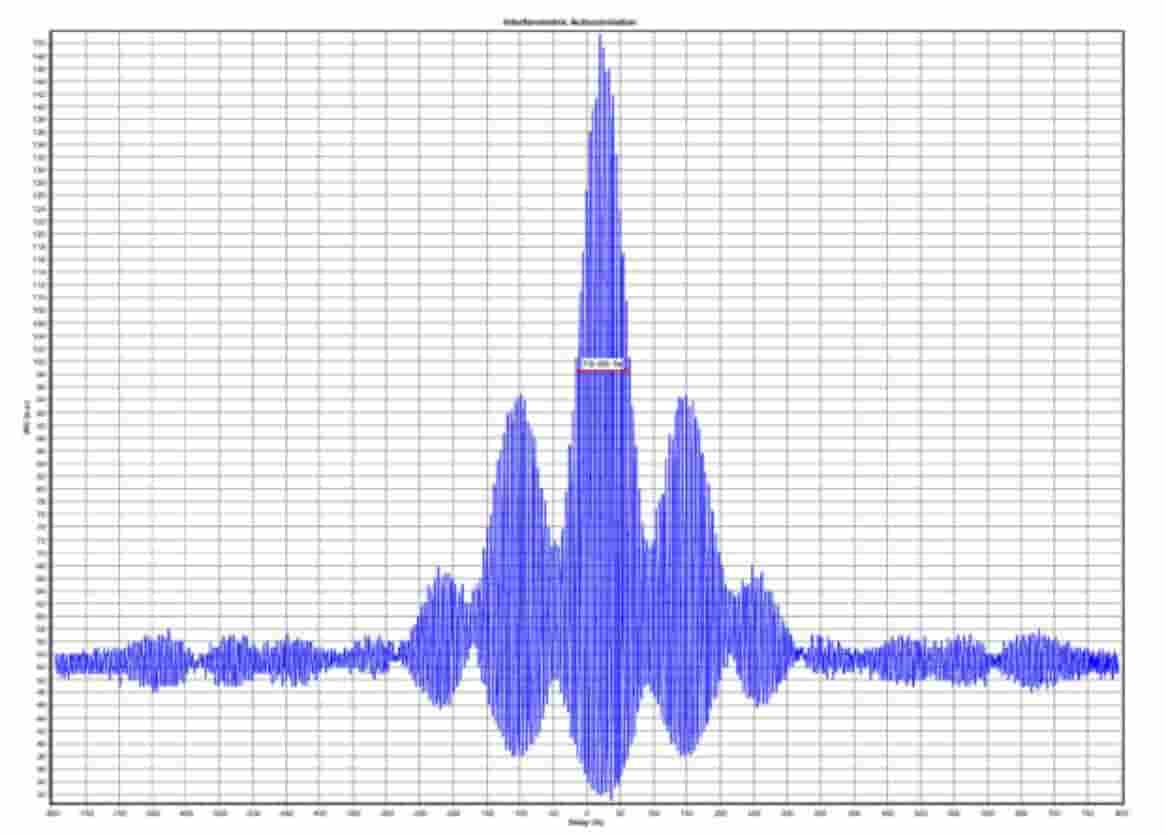

Input Pulse：53 fs，189 mW，1.7 nJ

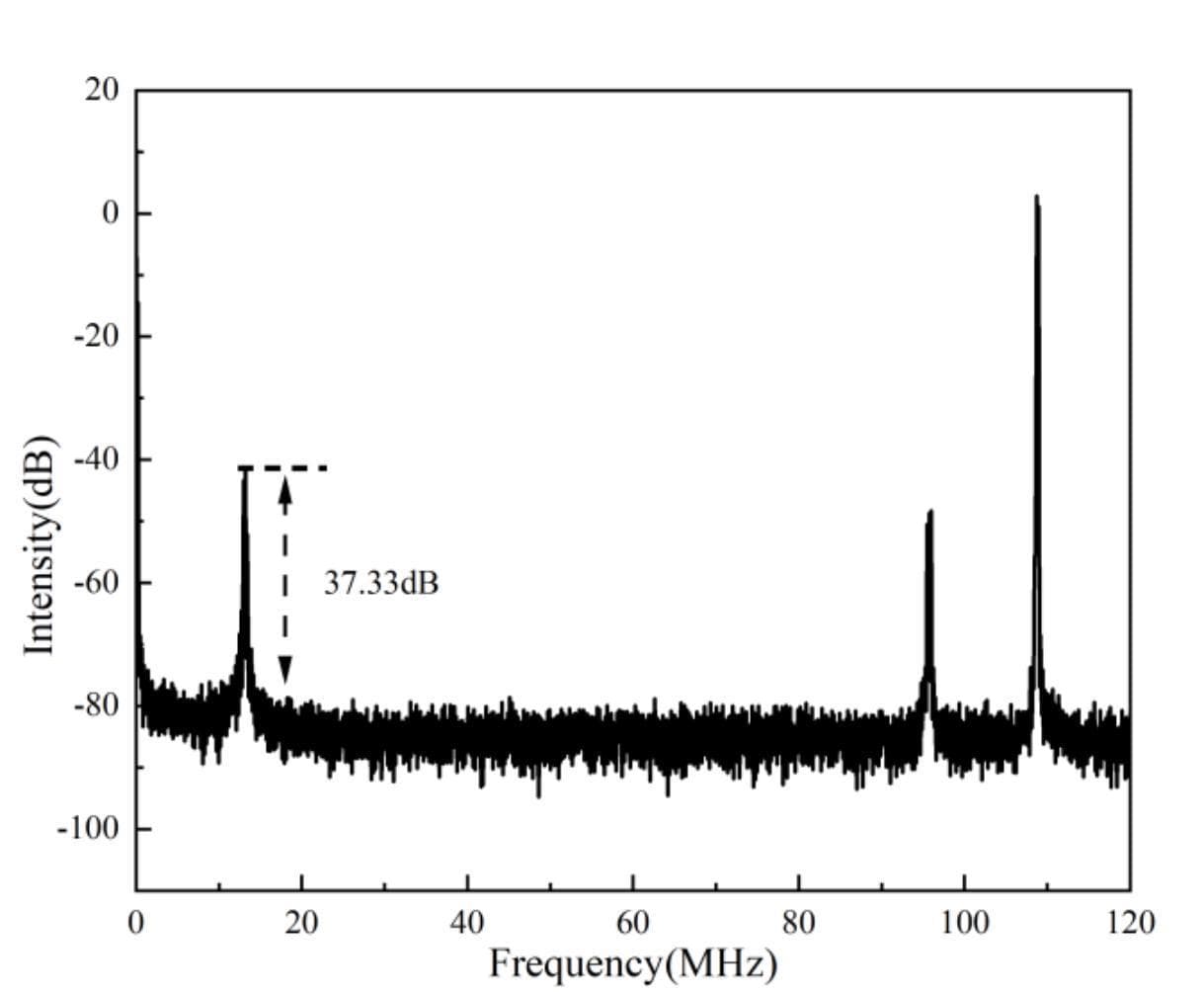

Output Signal-to-Noise Ratio：37 dB

Type Wavelength Output Power Repetition Rate Frequency Stability
Standardized Repetition Locking Optical Combs 1560±10 nm 100 mW 200 MHz RF reference＜5E-13 @1s
Fully Locked Optical Frequency Combs 1560±10 nm 30-100 mW 50-250 MHz RF reference＜1E-13 @1s
Asynchronous Optical Sampling Light Source 1560±10 nm 50 mW 200 MHz Within the loop＜3E-13 @1s
Femtosecond Pulse Fiber Laser (515nm-2μm) 515/780/1030/1040/
1050/1560/1970 nm		 60mW-10W 30 MHz-1 GHz /
Portable Fceo Detection Module 1560±10 nm Singal-to-noise Ratio:
25-35 dB		 / /
Broadband Compact RF Optical Modules 1310/1550 nm Link Gain: 15 dB / /
High Gain RF Optical Modules 1310/1550 nm Link Gain: 55 dB / /

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items Detail Unit Remark
Application
Input Pulse Center Wavelength   nm
Input Pulse Repetition Rate   MHz
Input Pulse Energy   nJ
Input Pulse Width   fs

We are here for you!





Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-HM01-OFC-FCEO-1560
Input Pulse Center Wavelength: 1560±10 nm ,Input Pulse Repetition Rate: 100-250 MHz optional ,Input Pulse Energy: ≈2 nJ ,Input Pulse Width: ＜50 fs (120 fs optional) ,Output the signal-to-noise ratio of fceo signal: 25-35 dB, Output RF Interface: SMA ,Input Fiber Type: PM HNLF, Input Fiber Connector: FC/APC 		4-6 Weeks Request for quote

LL-HM01-OFC-FCEO-1560 - Parameter

LL-HM01-OFC-FCEO-1560 - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
