Broadband Compact RF Optical Modules
Overview Specifications Related Products Order Now!
SIMTRUM provides a broadband compact RF optical module product that is a high performance, low cost broadband optical transceiver. It is specially designed for light-carrying RF applications with a very wide dynamic range, providing high spurious-free dynamic range (SFDR) and operating frequencies from 500 kHz to 6 GHz.The product operates at 1.3 or 1.5 μm and comes with an average automatic power control function for the best stability of optical power over the entire operating temperature range.



Features

  • Compact, All-Metal Housing
  • Compact design
  • Bandwidth up to 6 GHz
  • High Spurious-Free Dynamic Range (SFDR)
  • Good Frequency Response



Applications

  • Multipoint RF Unlimited Distribution
  • WiMAX/ 4G LTE
  • GPS Distribution
  • Satellite Earth Station
  • Shipboard RF Distribution

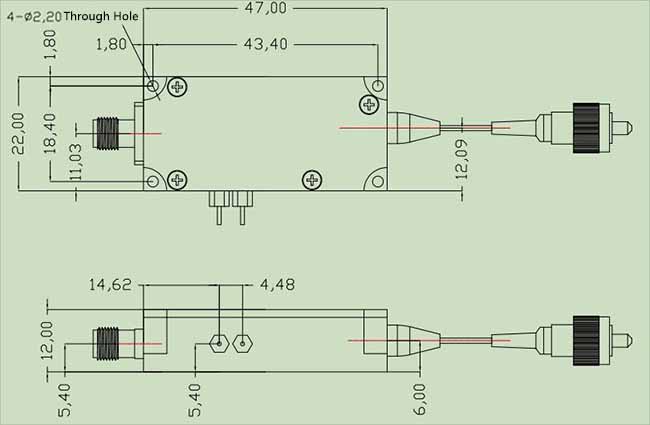

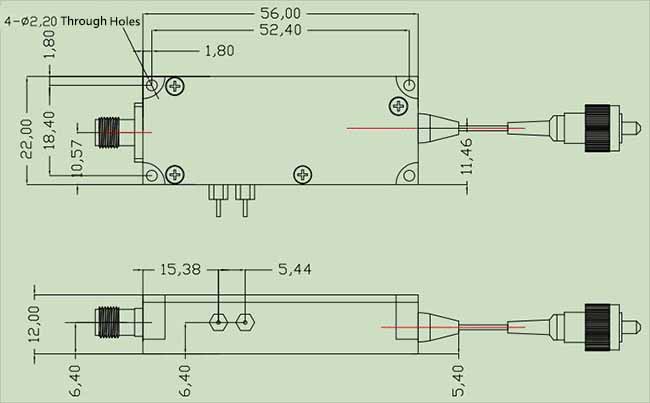

Mechanical Dimensions mm [inch]

Transmitter Module

Receiver Module


Product Specifications

Technical Specifications Minimum Typical Value Maximum
Product Number LL-HM01-OFC-BB
Supply Voltage 6 V 12 V 15 V
Supply Current   50 mA
Output Optical Power   3 mW
Optical Emission Wavelength   1310/1550 nm
Optical Receiving Wavelength   800-1700 nm
High Frequency Cut-off Frequency（HFC）1   6000 MHz
Low Frequency Cut-off Frequency（LFC）2   500 kHz
Frequency Response 500 kHz- 1.0 GHz   ±0.5 dB ±1 dB
10 MHz- 2.5 GHz   ±1.0 dB ±1.5 dB
50 MHz- 3.0 GHz   ±1.0 dB ±1.5 dB
400 MHz- 4.2 GHz   ±1.0 dB ±1.5 dB
500 kHz- 6.0 GHz   ±1.5 dB ±2 dB
Input/Output Impedance   50 Ohms
Spurious Free Dynamic Range
（SFDR）		 95 dB/Hz2/3 100 dB/Hz2/3
1 dB compression point4 ≥+5 dBm
Input/Output VSWR3、4、5
（500 kHz- 6.0 GHz）		   1.7：1 dB 2：1 dB
Link Gain3、4、5 500 kHz- 1.0 GHz   -8 dB +15 dB
10 MHz- 2.5 GHz   -8 dB +15 dB
50 MHz- 3.0 GHz   -8 dB +15 dB
400 MHz- 4.2 GHz   -8 dB +15 dB
500 kHz- 6.0 GHz   -8 dB +15 dB
Bottom Noise5@ 1GHz   -134 dBm/Hz
Third Order Crossmodulation5、6@ 1GHz   30 dBm
Full Temperature Gain Variation7   ±2 dB
Isolation8 60 dB 80 dB
Operating Temperature -25~+65 ℃
Storage Temperature -40~+85 ℃
Supply Voltage +6 V +15 V
Maximum Input RF Power4     +15 dBm
Maximum Received Optical Power     +10 dBm
Weight 45 g

1Typical high frequency cut-off frequency（HFC）is 6000 MHz. For higher HFC products, please contact SIMTRUM.

2Typical low frequency cut-off frequency（LFC）为500 kHz。For lower HFC products, please contact SIMTRUM.

3Measured and specified optical loss budget of 0 dB for 1 m of SMF28 fiber.

4No amplifier on transmitter side.

5Transmitter and receiver both add a first-stage amplifier.

60 dBm total output power (two-tone test).

7-25~＋65℃. For other operating temperature ranges, please contact SIMTRUM.

8Suitable for the entire frequency band, measurements at 1 GHz.



Connector Type

RF Connection = SMA Female

Optical Connection = FC/APC

Power Connector = M2.5 Feedthrough Capacitor


Type Wavelength Output Power Repetition Rate Frequency Stability
Standardized Repetition Locking Optical Combs 1560±10 nm 100 mW 200 MHz RF reference＜5E-13 @1s
Fully Locked Optical Frequency Combs 1560±10 nm 30-100 mW 50-250 MHz RF reference＜1E-13 @1s
Asynchronous Optical Sampling Light Source 1560±10 nm 50 mW 200 MHz Within the loop＜3E-13 @1s
Femtosecond Pulse Fiber Laser (515nm-2μm) 515/780/1030/1040/
1050/1560/1970 nm		 60mW-10W 30 MHz-1 GHz /
Portable Fceo Detection Module 1560±10 nm Singal-to-noise Ratio:
25-35 dB		 / /
Broadband Compact RF Optical Modules 1310/1550 nm Link Gain: 15 dB / /
High Gain RF Optical Modules 1310/1550 nm Link Gain: 55 dB / /
