High Gain RF Optical Modules | SIMTRUM Photonics Store

Products / Lasers/Light /Optical Frequency Comb /Optical Frequency Comb Accessories /High Gain RF Optical Modules /
High Gain RF Optical Modules
Overview Specifications Related Products Order Now!
SIMTRUM provides a high-gain RF optical module product that is a high-performance, low-cost broadband optical transceiver. It is specially designed for light-carrying RF applications with a very wide dynamic range, providing high spurious-free dynamic range (SFDR) and operating frequencies from 500 kHz to 4.2 GHz. The product operates at 1.3 or 1.5 μm and comes with an average automatic power control function for the best stability of optical power over the entire operating temperature range.



Features

  • Compact design for assembly in standard chassis of 2U or more
  • Bandwidth up to 4 GHz
  • Gain up to 55 dB
  • High Spurious-Free Dynamic Range (SFDR)
  • Good Frequency Response
  • Adjustable bidirectional gain
  • Built-in MCU for monitoring the status of the 485 optical module



Applications

  • Multipoint RF Unlimited Distribution
  • WiMAX/ 4G LTE
  • GPS Distribution
  • Satellite Earth Station
  • Shipboard RF Distribution

Mechanical Dimensions mm [inch]

Transmitter Module (with bi-amplified dimensions)

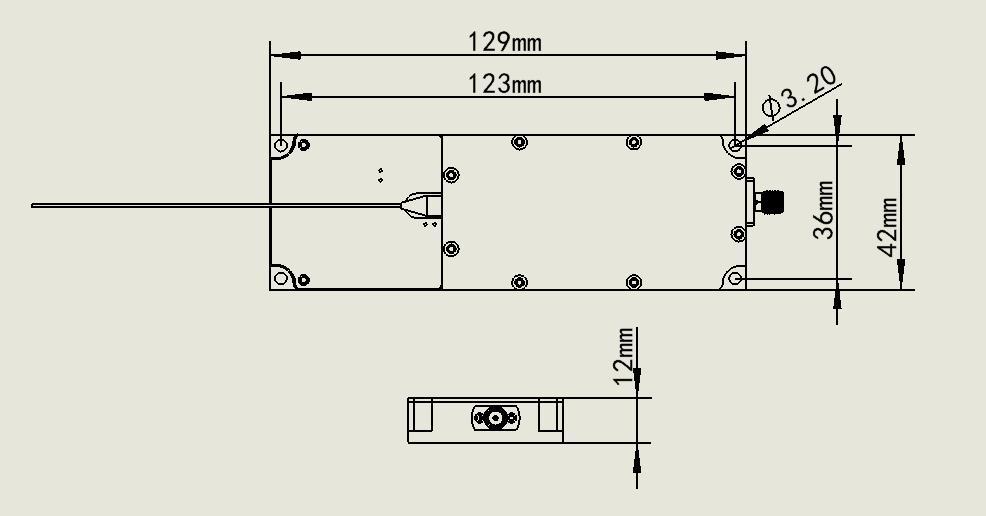

Receiver Module (with bi-amplified dimensions)

Product Specifications

Technical Specifications Minimum Typical Value Maximum
Product Number LL-HM01-OFC-HG
Supply Voltage 6 V 12 V 15 V
Supply Current   120 mA
Output Optical Power   3 mW
Optical Emission Wavelength   1310/1550 nm
Optical Receiving Wavelength   800-1700 nm
High Frequency Cut-off Frequency (HFC)1   4000 MHz
Low Frequency Cut-off Frequency (LFC)2   500 kHz
Frequency Response 500 kHz- 1.0 GHz   ±0.5 dB ±1 dB
10 MHz- 2.5 GHz   ±1.0 dB ±1.5 dB
10 MHz- 4 GHz   ±1.0 dB ±1.5 dB
50 MHz- 3.0 GHz   ±1.0 dB ±1.5 dB
Input/Output Impedance   50 Ohms
Input/Output VSWR3、4、5
（500 kHz- 4 GHz）		   1.7：1 dB 2：1 dB
Link Gain3、4、5 500 kHz- 1.0 GHz     +50 dB
10 MHz- 2.5 GHz     +50 dB
10 MHz- 4 GHz     +50 dB
50 MHz- 3.0 GHz     +50 dB
Bottom Noise4@ 1GHz   -134 dBm/Hz
Third Order Intermodulation5、6@ 1GHz   33 dBm
Full Temperature Gain Change7   ±2 dB
Isolation8 60 dB 80 dB
Operating Temperature -25~+65 ℃
Storage Temperature -40~+85 ℃
Supply Voltage +6 V +15 V
Maximum Input Optical Power     +10 dBm

1Typical high frequency cut-off frequency（HFC）is 4000 MHz. For higher HFC products, please contact SIMTRUM.

2Typical low frequency cut-off frequency（LFC）为500 kHz。For lower HFC products, please contact SIMTRUM.

3Measured and specified optical loss budget of 0 dB for 1 m of SMF28 fiber.

40 dB test at gain.

5Maximum link gain transmitter and receiver are both two-stage amplifiers. Length dimensions can be further reduced if dual stage amplification is not required.

6-40 dBm input power, 0 dBm total output power at 40 dB gain for amplifier tubes on transmitter side (two-tone test)

7-25~＋65℃. For other operating temperature ranges, please contact SIMTRUM.

8Suitable for the entire frequency band, measurements at 1 GHz.



Connector Type

RF Connection = SMA Female

Optical Connection = FC/APC



J1 Pin Definitio
PIN Name Definition Remarks
1 VCC Power Input Positive Voltage Range 6-15V
2 GND Power Input Negative
3 RS485_A 485 Serial Communication Differential Signal Positive Terminal
4 RS485_B 485 Serial Communication Differential Signal Negative Terminal
5 SWDIO Programming Port
6 SWCLK Programming Port


J2 Pin Definitions

PIN Name Definition Remarks
1 Optical Power Indicator Indicates the amount of light power High Power: Red Light
Normal Power: Green Light
Low Power：No Light
Threshold Adjustable
2
3 RF Power Indicator Indicates RF Power Level High RF Power：Red Light
Normal RF Power：Green Light
Low RF Power：No Light
Threshold Adjustable
4
5 Button 1 Control Keys Depending on the application,
the function of different keys can be selected
6 Button 2
7 Button 3
8 Button 4
9 OLED Screen Signal Cable OLED Signal Cable Optional, for status visualisation,
module function applications
10

Type Wavelength Output Power Repetition Rate Frequency Stability
Standardized Repetition Locking Optical Combs 1560±10 nm 100 mW 200 MHz RF reference＜5E-13 @1s
Fully Locked Optical Frequency Combs 1560±10 nm 30-100 mW 50-250 MHz RF reference＜1E-13 @1s
Asynchronous Optical Sampling Light Source 1560±10 nm 50 mW 200 MHz Within the loop＜3E-13 @1s
Femtosecond Pulse Fiber Laser (515nm-2μm) 515/780/1030/1040/
1050/1560/1970 nm		 60mW-10W 30 MHz-1 GHz /
Portable Fceo Detection Module 1560±10 nm Singal-to-noise Ratio:
25-35 dB		 / /
Broadband Compact RF Optical Modules 1310/1550 nm Link Gain: 15 dB / /
High Gain RF Optical Modules 1310/1550 nm Link Gain: 55 dB / /

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.
Items Detail Unit Remark
Application
Optical Emission Wavelength   nm
Receiving Wavelength   nm
Output Optical Power   mW
High frequency cut-off frequency   MHz
Low frequency cut-off frequency   kHz Customizable
Frequency Response Range   / e.g. 500 kHz- 6.0 GHz
Link Gain   dB

We are here for you!





Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-HM01-OFC-HG
Optical Emission Wavelength: 1310/1550 nm ,Optical Receiving Wavelength: 800-1700 nm,High frequency cut-off frequency: 4000MHz (customizable) ,Low frequency cut-off frequency: 500kHz (customizable) ,Frequency Response: 10 MHz-4 GHz (customizable) ,Link Gain: Up to 50 dB 		4-6 Weeks Request for quote

LL-HM01-OFC-HG - Parameter

LL-HM01-OFC-HG - Download
