Products / Lasers/Light /Fiber Lasers /CW Narrow Linewidth Laser(780nm-2μm） /1064/2000 nm Narrow Linewidth Fiber Laser /

1064/2000 nm Narrow Linewidth Fiber Laser

STUL1064 - 1 μm STUL2000-2 μm Order Now!

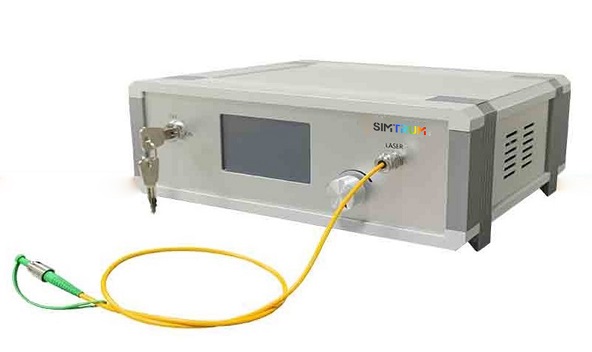

1064nm Narrow Linewidth Fiber Laser – STUL1064

STUL1064 is a 1 μm CW fiber laser with MHz level narrow line width. It features high reliability and high output power up to Watt-level. STUL1064 is widely used in MIR laser generation, spectroscopy analysis, non-linear optics and other research areas.

The laser can be used with TDFA HP to generate 10-W output power.

Features

- Customizable wavelength

- Very narrow spectral linewidth

- Single mode fiber delivery

- Diffraction limited beam

- Turn-key system

Application

- Laser radar

- Environmental monitoring

- Molecular detection

- Laser frequency conversion

- Mid-IR related research

Test Data

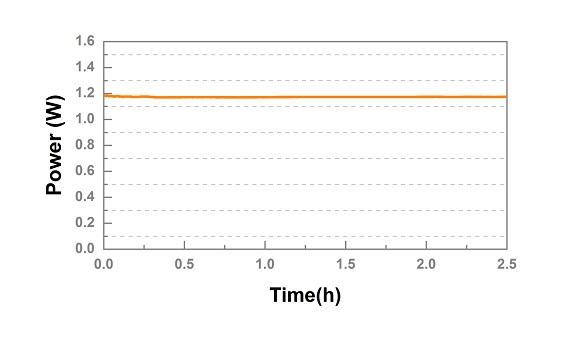

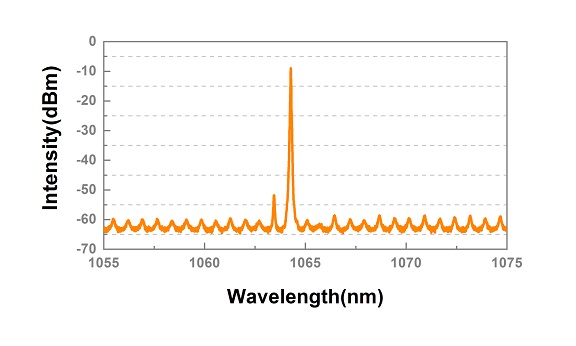

Output Spectrum	Power Stability

Product specifications and Brochures

Product Brochure Link:

Laser Parameters
Operating Wavelength	nm	1064±2 nm
Spectral Bandwidth	MHz	~2 MHz
Average Power	mW, W	100mW, 1W
Average Power Stability	% RMS	<1 % RMS (12h@25°C)
Beam Quality		TEM00, m2<1.1
Output Type		FC/APC Connector (100mW), Spatial collimation output (1W)
Electrical, Environmental and Mechanical Parameters
Power Consumption	Watt	<150 Watt
Trigger Signal	V	1V @ 50 Ohm
Supply Voltage	VAC	100-240
Operational Temperature Range	°C	15-35
Operational Humidity Range	%	20-80
Weight Laser Head	kg	7
Dimensions Laser Head	mm (LxW*H)	306 x 261 x 111.5
Cooling		Air-cooled

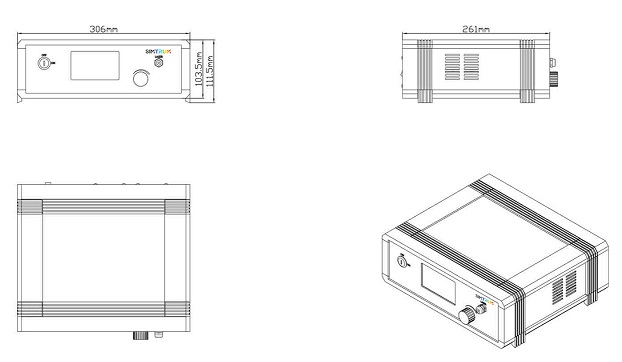

Machine Drawing

2000nm Narrow Linewidth Fiber Laser – STUL2000

STUL2000 is a 2 μm CW fiber laser with MHz level narrow line width. It features high reliability and high output power up to Watt-level. STUL2000 is widely used in MIR laser generation, spectroscopy analysis, non-linear optics and other research areas.

The laser can be used with TDFA HP to generate 10-W output power.

Features

- Customizable wavelength

- Very narrow spectral linewidth

- Single mode fiber delivery

- Diffraction limited beam

- Turn-key system

Application

- Laser radar

- Environmental monitoring

- Molecular detection

- Laser frequency conversion

- Mid-IR related research

Test Data

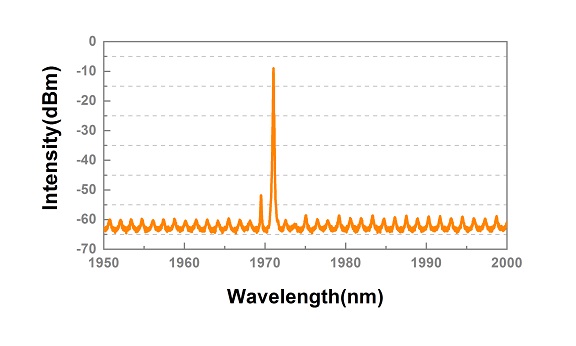

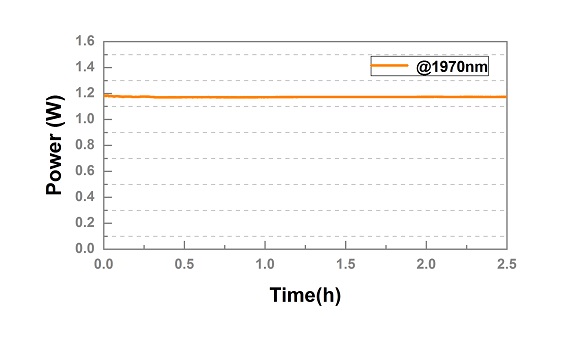

Output Spectrum	Power Stability

Product specifications and Brochures

Product Brochure Link:

Laser Parameters
Operating Wavelength	nm	1900-2100 nm
Spectral Bandwidth	MHz	~2 MHz
Average Power	mW, W	100mW, 1W
Average Power Stability	% RMS	<1 % RMS (12h@25°C)
Beam Quality		TEM00, m2<1.1
Output Type		FC/APC Connector (100mW), Fiber collimation output (1W)
Electrical, Environmental and Mechanical Parameters
Power Consumption	Watt	<150 Watt
Trigger Signal	V	1V @ 50 Ohm
Supply Voltage	VAC	100-240
Operational Temperature Range	°C	15-35
Operational Humidity Range	%	20-80
Weight Laser Head	kg	7
Dimensions Laser Head	mm (LxW*H)	346 x 316 x 113.5
Cooling		Air-cooled

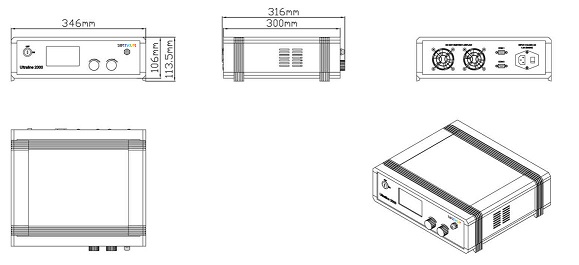

Machine Drawing

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
STUL1064-100mW CW Narrow Linewidth Laser 1064/2000nm, operation wavelength 1064±2 nm, Spectral Bandwidth ~2 MHz, Average Power 100mW, output type FC/APC Connector	4-6 Weeks	Request for quote
STUL1064-1W CW Narrow Linewidth Laser 1064/2000nm, operation wavelength 1064±2 nm, Spectral Bandwidth ~2 MHz, Average Power 1W, output type Spatial collimation	4-6 Weeks	Request for quote
STUL2000-100mW CW Narrow Linewidth Laser 2000nm, operation wavelength 1900-2100nm, Spectral Bandwidth ~2 MHz, average power 100mW, output type FC/APC Connector	4-6 Weeks	Request for quote
STUL2000-1W CW Narrow Linewidth Laser 2000nm, operation wavelength 1900-2100nm, Spectral Bandwidth ~2 MHz, average power 1W, output type Fiber collimation	4-6 Weeks	Request for quote

STUL2000-1W - Parameter

STUL2000-100mW - Parameter

STUL1064-1W - Parameter

STUL1064-100mW - Parameter

STUL2000-1W - Download

STUL2000-100mW - Download

STUL1064-1W - Download

STUL1064-100mW - Download
