Narrow Linewidth Laser Diodes (1530-1625nm)

Overview & Specifications Wavelength Choice Related Product Order Now!

Narrow Linewidth Laser Diodes Module: NLLM

This narrow linewidth laser module integrates cooled external cavity diode laser and thermally-tuned FP filters to achieve single-mode operation at selectable wavelength. Narrow linewidth Laser Module has excellent optical performance in terms of high output power stability, high side-mode-suppression ratio (SMSR), ultra-narrow laser linewidth, low relative intensity noise (RIN), and high stable wavelength accuracy. We have options of SM fibers and PM fibers. The products are Telcordia GR-468 qualified, and in compliance with RoHS requirement.

Applications

- Interferometric fiber optic sensing

- Brillouin Distributed Temperature and Strain Sensors (DTSS)

- LIDAR

- Optical Test and Instrumentation

Features

- High output power( 10~20mW)

- Center wavelength: C/L-band, ITU-T DWDM 100 GHz

- Very narrow linewidth and low RIN

- Wavelength tunability and Direct power modulation

- High stability, compact planar mechanical design

Product specifications and Brochures

Product Brochure Link:

Parameter	Symbol	Min.	Typ.	Max.	Unit
Optical Output Power	Po	10	-	-	mW
Center Wavelength	λ	ITU grid, C/L - Band DWDM 100 GHz			nm
Static Linewidth	LW	25	50	75	kHz
Power Stability Over Case Temperature Range(-10~60°C)	dP_OUT	-	-	1	%
Wavelength Stability Over Case Temperature Range(-10~60°C)	dλ	-	-	10	pm
Relative Intensity Noise	RIN	-	-	-155	dB/Hz
Side-mode Suppression Ratio	SMSR	40	55	-	dB
Optical Isolation	ISO	35	-	-	dB
Polarization Extinction Ratio	PER	20	-	-	dB
Voltage Supply	V_CC	4.75	5	5.25	V
Operating Temperature Range	-	10	25	60	°C
Storage Temperature	T_STG	-40	-	85	°C

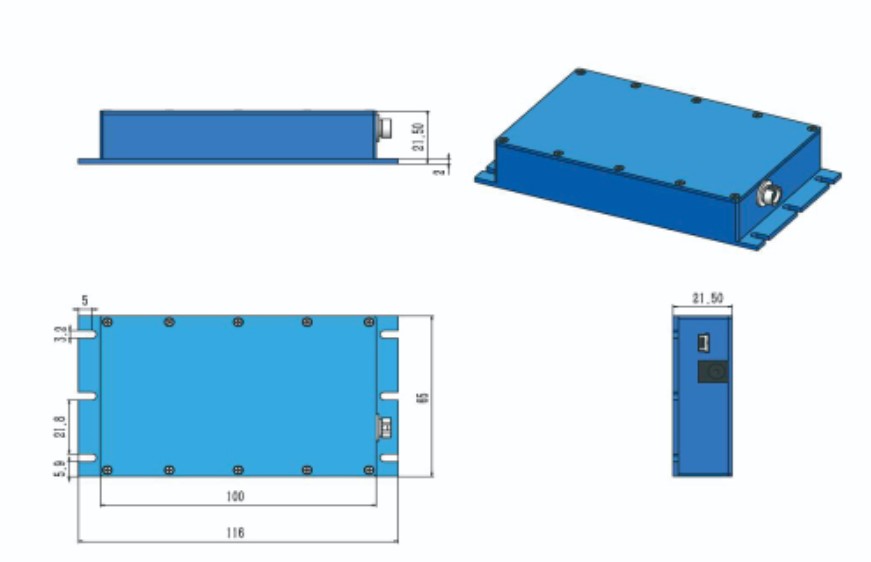

Dimension	W x L x H	65 x 116 x 21.5			mm

Mechanical Dimensions	Interface Connector
	No.	Type
	1	FC/APC connector or adaptor
	2	SMA RF Modulation
	3	Mini USB
	4	Power supply +5V/3A
	Fiber Pigtail Specifications
	Parameters	Description
	Fiber Type	SM fiber or PM fiber
	Jacket Type	900um loose tube
	Pigtail Length	0.5m or Customized

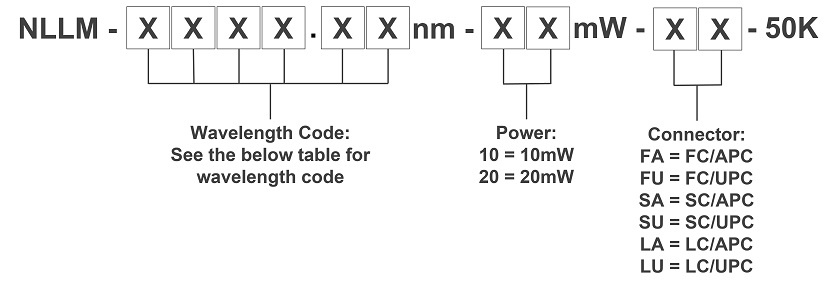

Ordering Information

Standard Wavelength Reference Table

You can follow the ITU Grid Reference table to choose the wavelength you want, let us know wavelength code to order your laser. in most the wavelength our minimun output power can reach >10mW for specific power requirement please email to info@simtrum.com
