Gold Integrating Spheres 25/65/100mm

Gold Integrating Sphere Related Product Order Now!

Product Brochure: Gold Integrating-sphere

	Gold Integrating Sphere
Model	G25	G65	G100L
Inner Diameter	25mm	65mm	100mm
Input Port Diameter	Customized	Customized	Customized
Max Power handling	up to 100W (CW)	up to 400W (CW)	up to 5kW (CW)
Wavelength range	650nm – 20µm	650nm – 20µm	650nm – 20µm

High power measurements are often performed using thermopile detectors. Thermopiles however, have the disadvantage of reacting very slowly typical rise times lead to measurement periods of 1 second at best. The combination of an integrating sphere and a photodiode-based power meter opens the possibility of measuring high power fluctuations on a µs time scale. This can be useful for setting up and debugging high-power CW lasers. These spheres may be combined with our power meters via fiber coupling or via a photodiode port. Just plug it into your USB port and start measuring!

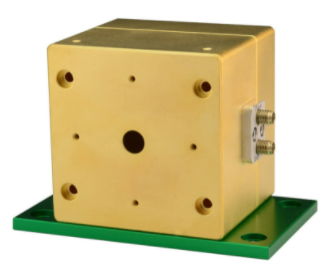

25mm Gold Integrating Sphere

25mm gold integrating spheres are designed for high-power applications in the near to mid-infrared (NIR and MIR). These quality spheres provide exceptional power handling capability with air-cooled and liquid-cooled versions to choose from. These convection-cooled gold spheres are designed for mid-power laser applications in the near to mid-infrared (NIR and MIR). They provide good power handling capability up to 10W (CW). The back plate of the sphere is lapped and coated for mounting to liquid or forced air-cooled cold plates. With a suitable cold plate, the sphere can withstand up to 100W (CW) power.

Specifications

-Power Handling : up to 10W (CW); up to 100W (CW) with suitable cold plate mounted

-Sphere inner diameter: 25mm

-Power density: 5000W/cm²

-Wavelength range: 650nm – 20µm

Options

-Standard 3 port design (fibre & photodiode)

-SMA fibre port

-FC fibre port

-Photodiode port (Ge, InGaAs, IR enhanced InGaAs)

65mm Gold Integrating Sphere

65mm gold integrating spheres are designed for high-power applications in the near to mid-infrared (NIR and MIR). These quality spheres provide exceptional power handling capability with air-cooled and liquid-cooled versions to choose from. These convection-cooled gold spheres are designed for mid-power laser applications in the near to mid-infrared (NIR and MIR). They provide good power handling capability up to 40W (CW). The back plate of the sphere is lapped and coated for mounting to liquid or forced air-cooled cold plates. With a suitable cold plate, the sphere can withstand up to 400W (CW) power.

Specifications

- High power handling: up to 40W (CW); up to 400W (CW) with suitable cold plate mounted

-Sphere inner diameter: 65mm

-Power density: 5000W/cm²

-Wavelength range: 650nm – 20µm

Options

-Standard 2 port design; 4 ports on request

-SMA fibre port (2 or 4)

-FC fibre port (2 or 4)

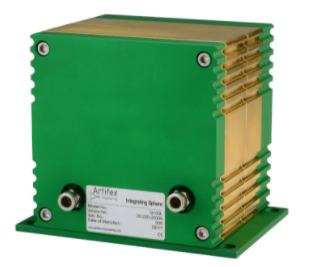

100mm Liquid Cooled Gold Integrating Sphere

100mm gold integrating spheres is designed for high-power laser applications in the near to mid-infrared (NIR and MIR) and it provides power handling capability up to 5kW (CW) and a high-power density of 5kW/cm². These quality spheres provide exceptional power handling capability with air cooled and liquid-cooled versions to choose from.

Specifications

-High power handling: up to 5kW (CW)

-Sphere inner diameter: 100mm

-Power density: 5000W/cm²

-Wavelength range: 650nm – 20µm

Options

-Standard 2 port design; 4 ports on request

-SMA fibre port (2 or 4)

-FC fibre port (2 or 4)

Product Brochure:

OPM150_Console. PDF | Sensor Head Summary.PDF | Integrating-sphere_Polymer.PDF

	Polymer				Gold
Model	P10	P20	SP20	SP50/100	G25	G65	G100L
Inner Diameter	10mm	20mm	20mm	50mm/100mm	25mm	65mm	100mm
Input Port Diameter	3,5mm	7mm
Max Power handling	<50mW	200mW	500mW-20W	5W-100W	up to 100W (CW)	up to 400W (CW)	up to 5kW (CW)
Wavelength range	200-2500nm	200-2500nm	200-2500nm	200-2500nm	650nm – 20µm	650nm – 20µm	650nm – 20µm

Choose the Power Sensor based on wavelength Click here

SIMTRUM offers two types of sensor head Free beam and Fiber coupled, Wtih various diode materials allow measurement from 250nm to 2500nm. Silicon sensor wavelength range covers 250nm -110nm , Gemanium sensor wavelength range covers 800nm-1500nm, InGaAs sensor wavelength range covers 400-2500nm. The calibration file of each head is stored into its connector. Thus, changing wavelength range is as simple as swapping heads.

Optical Density Filter Choice

We offer caliberated attenuation filters which extend the range of free beam heads by up to three orders of magnitude. Power range cover from 1nW to 300mW

For High Power sensing combime sensor with integrating sphere. Click here

We offer integrating sphere which can extend your high power measurement from 2uW to 100W.With a response time tof 100us and sampling rates up to 600S/s, there is much more to see than with a thermopile sensor. And no thermal drift to worry about either!

Match Power Meter Console Click Here

Input	OPM 150	OPM 200	OPM 500
Detector Heads	Free Beam / Fibre Heads	Fibre Heads
USB Port	Yes	No	Yes
Output	Digital & Analogue	Analogue	Digital & Analogue
Power Range	nW - kW	µW - mW	pW - mW
Accuracy	± 4	± 5
Reproducibility	± 1	± 0.5
Linearity	± 0.2

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
Gold Integrating Spheres 25mm Gold Integrating Spheres Inner diameter 25mm , Wavelength 650nm - 20um , Power up to 100W (CW)	In Stock	Request for quote
Gold Integrating Spheres 65mm Gold Integrating Spheres Inner diameter 65mm , Wavelength 650nm - 20um , Power up to 400W (CW)	In Stock	Request for quote
Gold Integrating Spheres 100mm Gold Integrating Spheres Inner diameter 100mm , Wavelength 650nm - 20um , Power up to 5kW (CW)	In Stock	Request for quote
OPM 150 Power Meter Console 12mA Max Current 12 mA Measurement bandwidth: 10kHz , Interfaces: USB, Compatible with full range power meter sensor	In Stock	$360 - 450
OPM 150 Power Meter Console 4mA Max Current 4 mA Measurement bandwidth: 100kHz , Interfaces: USB, Compatible with full range power meter sensor	In Stock	$370 - 480

	Availability	Reference Price (USD)
FC-Adapter For P10 and P20 FC-Adapter For P10 and P20 Integrating Sphere	Contact Us	Request for quote
FC-Adapter for SP50 and G65 The FC-Adapter for SP50 and G65 Integrating Sphere	In Stock	Request for quote
FC-Adapter for SP100 The FC-Adapter for SP100, G100 and G100L Integrating Sphere	In Stock	Request for quote
SMA-Adapter for P10 and P20 The SMA-Adapter for P10 and P20 Integrating Sphere	In Stock	Request for quote
SMA-Adapter for SP50 and G65 The SMA-Adapter for SP50 and G65 Integrating Sphere	In Stock	Request for quote
SMA-Adapter for SP100 The SMA-Adapter for SP100, G100 and G100L Integrating Sphere	In Stock	Request for quote
Universal Port Adapter for SP50 The Universal Port Adapter for SP50 Integrating Sphere	In Stock	Request for quote
