C ++Band ASE Broadband Light Source(1524-1572nm)
SIMTRUM's C++ band ASE broadband light source extends the wavelength range based on the C band ASE broadband light source, covering the 1524-1572nm wavelength range (frequency 190.65~196.675THz), with a spectral flatness better than 2.5dB. It is output through single-mode fiber or polarization-maintaining fiber, and is suitable for applications such as fiber optic sensing.

Features

  • Wide spectral range
  • Spectral flatness
  • Power adjustable
  • High stability

Applications

  • Optical fiber sensing
  • Medical imaging
  • Production test



Product Specifications and Brochures

Product Brochure Link:

Optical Parameters Unit Typical Value Remarks

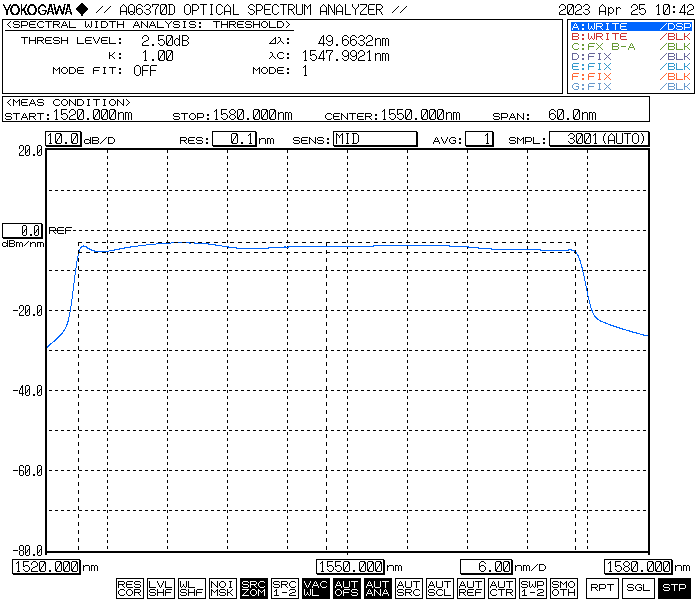

Spectral Range nm 1524~1572  2.5dB Range
Output Optical Power mW 10 20 50 100 200
Spectral power density dBm/nm ≥-7 ≥-4 ≥0 ≥3 ≥6
Power Djustable (Optional) 10%~100% Spectral Flatness Maintenance
Spectral Flatness dB  2.5(Typical)
Output Isolation dB >35
Short-term Stability (15 minutes) dB ≤ ±0.02 Equivalent ≤±0.5%
Long-term Stability (8 hours) dB ≤ ±0.05 Equivalent ≤±1.2%
Polarization extinction ratio PER dB ≤0.2 ≥23
Fiber connectors - SMF-28 PM 1550 FC/APC

General Parameters Desktop Module
Control Function Touch screen/RS232 Serial Communication RS232 Serial Communication
Remote Control Port DB9 Female DB9 Female
Power Supply 100~240V AC, <30W 5V DC, <15W
Dimensions 255(W)×285(D)×115(H)mm 125(W)x150(D)x20(H)mm
Operating Temperature  -5~+35°C
Operating Humidity 0~70%

Ordering Information/Product Code
Series Spectral Range Saturation output power (mW) * Power Djustable (Optional) Fiber Type Packaging
STASE C++ 10/20/50/100/200 *T SM= SMF-28
PM=PM1550
M=Module
B=Desktop




Type Spectral Range (nm) Output Optical Power(mW)
 980nm ASE Broadband Light Source 973 - 982 10
 Dual-band ASE Broadband Light Source 980 - 1030 50
 1030/1064nm ASE Broadband Light Source 1018 - 1080 10/20/30/50/100/500/1000
 Near-infrared ASE broadband light source 1000 - 1100 20/50/100
 C-Band Broadband ASE Light Source 1528 - 1569 10/20/50/100/200/400/500
 C++ Band Boardband ASE Light Source 1524 - 1572 10/20/50/100/200
 L-Band Broadband ASE Light Source 1567 - 1603 10/20/50/100/200
 C+L Band Boardband ASE Light Source 1524 - 1611 10/20/50/100/200/350
 L+/L++ Band ASE Broadband Light Source 1568 - 1626.5 50/100/200
 Mid-infrared ASE Broadband Light Source 1880 - 1940 10/20/50/100/500/2000




We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STASE-C++-10-SM-B
C++ Band Broadband ASE Light Source,spectral range 1524~1572nm,output power 10mW
4-6 Weeks Request for quote
STASE-C++-20-SM-B
C++ Band Broadband ASE Light Source,spectral range 1524~1572nm,output power 20mW
4-6 Weeks Request for quote
STASE-C++-50-SM-B
C++ Band Broadband ASE Light Source,spectral range 1524~1572nm,output power 50mW
4-6 Weeks Request for quote
STASE-C++-100-SM-B
C++ Band Broadband ASE Light Source,spectral range 1524~1572nm,output power 100mW
4-6 Weeks Request for quote
STASE-C++-200-SM-B
C++ Band Broadband ASE Light Source,spectral range 1524~1572nm,output power 200mW
4-6 Weeks Request for quote

STASE-C++-200-SM-B - Parameter

STASE-C++-100-SM-B - Parameter

STASE-C++-50-SM-B - Parameter

STASE-C++-20-SM-B - Parameter

STASE-C++-10-SM-B - Parameter

STASE-C++-200-SM-B - Download

STASE-C++-100-SM-B - Download

STASE-C++-50-SM-B - Download

STASE-C++-20-SM-B - Download

STASE-C++-10-SM-B - Download
