Near-infrared ASE Broadband Light Source(1000-1100nm)

SIMTRUM's 1000~1090nm ASE broadband light source provided by A is based on rare earth-doped fiber and semiconductor pump laser, with a spectral coverage range of 1000~1090nm@20dB, high output power and good flatness. It can be used for fiber optic device testing, FBG grating production, etc.

Characteristics

Wide spectral range
Low polarization
High stability

Applications

Fiber sensing
Medical imaging
Fiber optic device testing

Product specifications and Brochures

Product Brochure Link:

Optical Parameters	Unit	Typical Value	Remarks
Central wavelength	nm	1040±5

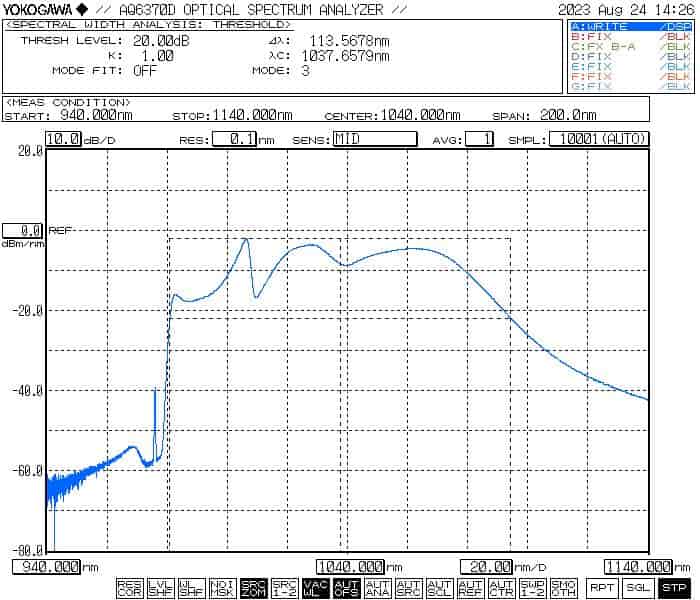

Wavelength Range	nm	1000~1090nm@20dB（1010~1080@10dB）
Optical output power	mW	20	Power is not adjustable
Output Ioslation	dB	>35
Short-term stability(15min)	dB	≤ ±0.02	Equivalent≤±0.5%
Long-term stability(8h)	dB	≤ ±0.05	Equivalent≤±1.2%
Polarization extinction ratio PER	dB	≤ 0.2
Fiber connectors	-	Hi 1060	FC/APC

General Parameters	Desktop	Module
Control Function	Touch Screen/RS232 Serial Communication	RS232 Serial Communication
Remote Control Port	DB9 Female	DB9 Female
Power Supply	100~240V AC, <30W	5V DC, <15W
Dimensions	255(W)×285(D)×115(H)mm	125(W)x150(D)x20(H)mm
Operating Temperature	-5~+35°C
Operating Humidity	0~70%

Ordering Information/Product Code
Series	Wavelength Range	output power (mW)	Fiber Type	Packaging
STASE	1000-1090nm	20	SM=Hi 1060	M=Module B=Desktop

SIMTRUM's 1010~1100nm band ASE broadband light source is based on the spontaneous radiation of ytterbium-doped fiber, with a maximum output power of more than 100mW. It has good spectral flatness and low polarization degree, and the 20dB spectrum covers the wavelength range of 1010~1100nm. It is suitable for optical fiber device testing, FBG grating production, etc.

Characteristics

Wide spectral range
Low polarization
High stability

Applications

Fiber sensing
Medical imaging
Fiber optic device testing

Product specifications and Brochures

Product Brochure Link:

Optical Parameters	Unit	Typical Value		Remarks

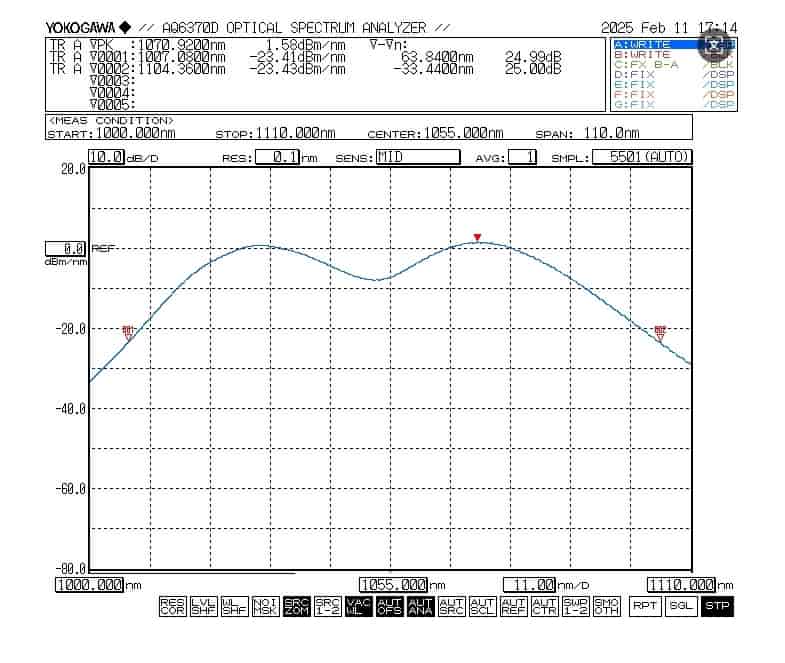

Wavelength range	nm	1010~1100		@20dB
Optical output power	mW	20/100	20/50
Power adjustment range	-	10~100%		Adjustable power(standard)
Spectral flatness	dB	20
Output Ioslation	dB	>35
Short-term stability(15min)	dB	≤ ±0.02		Equivalent≤±0.5%
Long-term stability(8h)	dB	≤ ±0.05		Equivalent≤±1.2%
Polarization extinction ratio PER	dB	≤ 0.2	>20
Fiber connectors	-	Hi 1060	PM980	FC/APC

General Parameters	Desktop	Module
Control Function	Touch Screen/RS232 Serial Communication	RS232 Serial Communication
Remote Control Port	DB9 Female	DB9 Female
Power Supply	100~240V AC, <30W	5V DC, <15W
Dimensions	255(W)×285(D)×115(H)mm	20mW: 125(W)×150(D)×20(H)mm
Dimensions	255(W)×285(D)×115(H)mm	100mW: 139(W)×235(D)×70(H)mm
Operating Temperature	-5~+35°C
Operating Humidity	0~70%

Ordering Information/Product Code
Series	Wavelength Range	output power (mW)	Fiber Type	Packaging
STASE	1010-1100nm	20/50/100	SM=Hi 1060	M=Module B=Desktop

Type	Spectral Range (nm)	Output Optical Power(mW)
980nm ASE Broadband Light Source	973 - 982	10
Dual-band ASE Broadband Light Source	980 - 1030	50
1030/1064nm ASE Broadband Light Source	1018 - 1080	10/20/30/50/100/500/1000
Near-infrared ASE broadband light source	1000 - 1100	20/50/100
C-Band Broadband ASE Light Source	1528 - 1569	10/20/50/100/200/400/500
C++ Band Boardband ASE Light Source	1524 - 1572	10/20/50/100/200
L-Band Broadband ASE Light Source	1567 - 1603	10/20/50/100/200
C+L Band Boardband ASE Light Source	1524 - 1611	10/20/50/100/200/350
L+/L++ Band ASE Broadband Light Source	1568 - 1626.5	50/100/200
Mid-infrared ASE Broadband Light Source	1880 - 1940	10/20/50/100/500/2000

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
STASE-1090-20-SM-B Mode：1000~1090nm band ASE broadband light source Central wavelength：1040±5nm Wavelength range：1000-1090nm@20dB（1010~1080@10dB） Optical output power：20mW Fiber：SM=Hi 1060	4-6 Weeks	Request for quote
STASE-1100-20-SM-B Mode：1010~1100nm band ASE broadband light source Wavelength：1010~1100nm Optical output power：20mW Polarization extinction ratio：≤0.2 Fiber：SM=Hi 1060	4-6 Weeks	Request for quote
STASE-1100-100-SM-B Mode：1010~1100nm band ASE broadband light source Wavelength：1010~1100nm Optical output power：100mW Polarization extinction ratio：≤0.2 Fiber：SM=Hi 1060	4-6 Weeks	Request for quote
STASE-1100-20-PM-B Mode：1010~1100nm band ASE broadband light source Wavelength：1010~1100nm Optical output power：20mW Polarization extinction ratio：＞20 Fiber：PM 980	4-6 Weeks	Request for quote
STASE-1100-50-PM-B Mode：1010~1100nm band ASE broadband light source Wavelength：1010~1100nm Optical output power：50mW Polarization extinction ratio：＞20 Fiber：PM 980	4-6 Weeks	Request for quote
