L+/L++band ASE Broadband Light Source(1568-1626.5nm)| SIMTRUM Photonics Store

Products / Lasers/Light /Incoherent Light Sources /ASE Light Sources (830-2000nm) /L+/L++band ASE Broadband Light Source(1568-1626.5nm) /
L+/L++band ASE Broadband Light Source(1568-1626.5nm)
L+band L++ band Related Products Order Now！
SIMTRUM‘s L+ band ASE broadband light source completely covers the wavelength range of 1568~1611nm in the L+ band, with a spectral range of more than 40nm and a spectral flatness better than 2.5dB. The maximum output power of single-mode fiber is greater than 200mW, which is suitable for applications such as fiber-optic communication and fiber-optic sensing.

Characteristics

  • Wide spectral range
  • Spectral flatness
  • Power adjustable
  • High stability



Applications

  • Fiber sensing
  • Medical imaging
  • Production test





Product specifications and Brochures

Product Brochure Link:


Optical Parameters Unit Typical Value Remarks

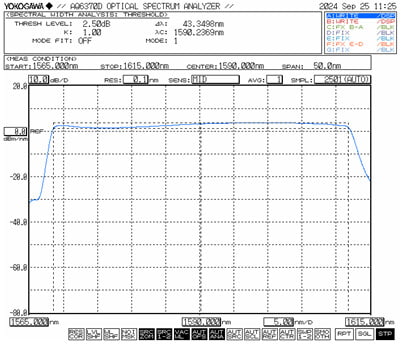

Spectral range nm 1568~1611 2.5dB Spectral range
Spectral flatness dB ≤2.5
Optical output power mW 50 100 200
Spectral power density dBm/nm ≥1 ≥4 ≥7
Power adjustment range (optional) - 10%~100% Maintains spectral flatness
Output Ioslation dB >35
Short-term stability(15min) dB ≤ ±0.02 Equivalent≤±0.5%
Long-term stability(8h) dB ≤ ±0.05 Equivalent≤±1.2%
Polarization extinction ratio PER dB ≤ 0.2
Fiber connectors - SMF-28 , FC/APC

General Parameters Desktop Module
Control Function Touch Screen/RS232 Serial Communication RS232 Serial Communication
Remote Control Port DB9 Female DB9 Female
Power Supply 100~240V AC, <30W 5V DC, <30W
Dimensions 255(W)×285(D)×115(H)mm 125(W)x150(D)x20(H)mm
Operating Temperature -5~+35°C
Operating Humidity 0~70%

Ordering Information/Product Code
Series Spectral Range output power (mW) * Power Djustable (Optional) Fiber Type Packaging
STASE L+ band 50/100/200 *T SM= SMF-28 M=Module
B=Desktop


SIMTRUM's L++ band ASE broadband light source completely covers the wavelength range of 1573.5~1626.5nm in the L++ band, with a spectral range of more than 50nm and a spectral flatness better than 2dB. The single-mode fiber output power is greater than 200mW, which is suitable for applications such as fiber-optic communications and fiber-optic sensing.

Characteristics

  • Wide spectral range
  • Spectral flatness
  • Power adjustable
  • High stability



Applications

  • Fiber sensing
  • Medical imaging
  • Production test



Product specifications and Brochures

Product Brochure Link:

Optical Parameters Unit Typical Value Remarks
Spectral range nm 1573.5~1626.5 2dB Spectral range
Spectral flatness dB ≤2
Optical output power mW 200
Power adjustment range (optional) - 10%~100% Maintains spectral flatness
Output Ioslation dB >35
Short-term stability(15min) dB ≤ ±0.02 Equivalent≤±0.5%
Long-term stability(8h) dB ≤ ±0.05 Equivalent≤±1.2%
Polarization extinction ratio PER dB ≤ 0.2
Fiber connectors - SMF-28 , FC/APC

General Parameters Desktop Module
Control Function Touch Screen/RS232 Serial Communication RS232 Serial Communication
Remote Control Port DB9 Female DB9 Female
Power Supply 100~240V AC, <30W 5V DC, <30W
Dimensions 260(W)×320(D)×120(H)mm 139(W)x235(D)x70(H)mm
Operating Temperature -5~+35°C
Operating Humidity 0~70%

Ordering Information/Product Code
Series Spectral Range output power (mW) * Power Djustable (Optional) Fiber Type Packaging
STASE L++ band 200 *T SM= SMF-28 M=Module
B=Desktop


Type Spectral Range (nm) Output Optical Power(mW)
 980nm ASE Broadband Light Source 973 - 982 10
 Dual-band ASE Broadband Light Source 980 - 1030 50
 1030/1064nm ASE Broadband Light Source 1018 - 1080 10/20/30/50/100/500/1000
 Near-infrared ASE broadband light source 1000 - 1100 20/50/100
 C-Band Broadband ASE Light Source 1528 - 1569 10/20/50/100/200/400/500
 C++ Band Boardband ASE Light Source 1524 - 1572 10/20/50/100/200
 L-Band Broadband ASE Light Source 1567 - 1603 10/20/50/100/200
 C+L Band Boardband ASE Light Source 1524 - 1611 10/20/50/100/200/350
 L+/L++ Band ASE Broadband Light Source 1568 - 1626.5 50/100/200
 Mid-infrared ASE Broadband Light Source 1880 - 1940 10/20/50/100/500/2000




We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STASE-L+-50-SM-B
Mode：L+ band ASE broadband light sourse Spectral range：1568~1611nm Optical output power：50mW Spectral power density：≥1dBm Fiber：SMF-28 		4-6 Weeks Request for quote
STASE-L+-100-SM-B
Mode：L+ band ASE broadband light sourse Spectral range：1568~1611nm Optical output power：100mW Spectral power density：≥4dBm Fiber：SMF-28 		4-6 Weeks Request for quote
STASE-L+-200-SM-B
Mode：L+ band ASE broadband light sourse Spectral range：1568~1611nm Optical output power：200mW Spectral power density：≥7dBm Fiber：SMF-28 		4-6 Weeks Request for quote
STASE-L++-200-SM-B
Mode：L+ +band ASE broadband light sourse Spectral range：1573.5~1626.5nm Optical output power：200mW Fiber：SMF-28 		4-6 Weeks Request for quote

STASE-L++-200-SM-B - Parameter

STASE-L+-200-SM-B - Parameter

STASE-L+-100-SM-B - Parameter

STASE-L+-50-SM-B - Parameter

STASE-L++-200-SM-B - Download

STASE-L+-200-SM-B - Download

STASE-L+-100-SM-B - Download

STASE-L+-50-SM-B - Download
