Products / Lasers/Light /Incoherent Light Sources /ASE Light Sources (830-2000nm) /980nm ASE Broadband Light Source(973-982nm) /

980nm ASE Broadband Light Source(973-982nm)

Overview & Specifications Related Products Order Now!

SIMTRUM's 980nm band ASE broadband light source is based on the spontaneous radiation of rare earth optical fiber, with good optical power and low polarization degree, and the spectrum covers the 980nm band. It is suitable for testing the loss and polarization degree of optical fiber devices, as well as FBG grating production, etc.

Characteristics

Wide spectral range
High stability
Low polarization

Applications

Fiber laser
Optical grating test
Fiber optic device testing

Product specifications and Brochures

Product Brochure Link:

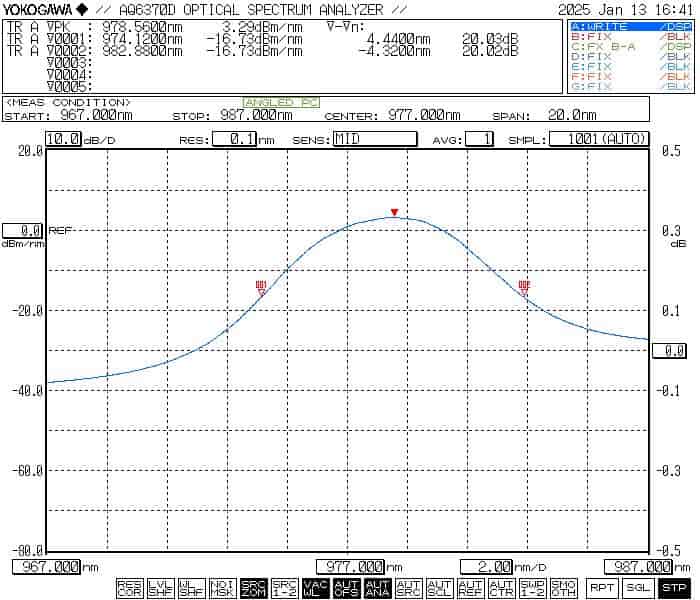

Optical Parameters	Unit	Typical Value	Remarks
Wavelength Range	nm	973~982	20dB range
Optical Power	mW	≥10
Optical Power Spectral Density	dBm/nm	≥-20
Output Isolation	dB	>35	Built-in isolator
Short-term stability(15min)	dB	≤ ±0.02	Equivalent≤±0.5%
Long-term stability(8h)	dB	≤ ±0.05	Equivalent≤±1.2%
Polarization extinction ratio PER	dB	≤ 0.2
Fiber connectors	-	Hi 1060	FC/APC

General Parameters	Benchtop
Control Function	Touch Screen/RS232 serial communication
Remote Control Port	DB9 Female
Power Supply	100~240V AC,＜30W
Dimensions	255(W)×285(D)×115(H)mm
Operation Temperature	-5~+35°C
Operation Humidity	0~70%

Ordering Information/ Product Code
Series	Wavelength(nm)	Output Power(mW)	Fiber	Packaging
STASE	980	10	SM=Hi-1060	B - Desktop

Type	Spectral Range (nm)	Output Optical Power(mW)
980nm ASE Broadband Light Source	973 - 982	10
Dual-band ASE Broadband Light Source	980 - 1030	50
1030/1064nm ASE Broadband Light Source	1018 - 1080	10/20/30/50/100/500/1000
Near-infrared ASE broadband light source	1000 - 1100	20/50/100
C-Band Broadband ASE Light Source	1528 - 1569	10/20/50/100/200/400/500
C++ Band Boardband ASE Light Source	1524 - 1572	10/20/50/100/200
L-Band Broadband ASE Light Source	1567 - 1603	10/20/50/100/200
C+L Band Boardband ASE Light Source	1524 - 1611	10/20/50/100/200/350
L+/L++ Band ASE Broadband Light Source	1568 - 1626.5	50/100/200
Mid-infrared ASE Broadband Light Source	1880 - 1940	10/20/50/100/500/2000
