Triple-channel Multi-mode diode Laser (488/525/638 nm)

Overview Specifications Related Products Order Now!

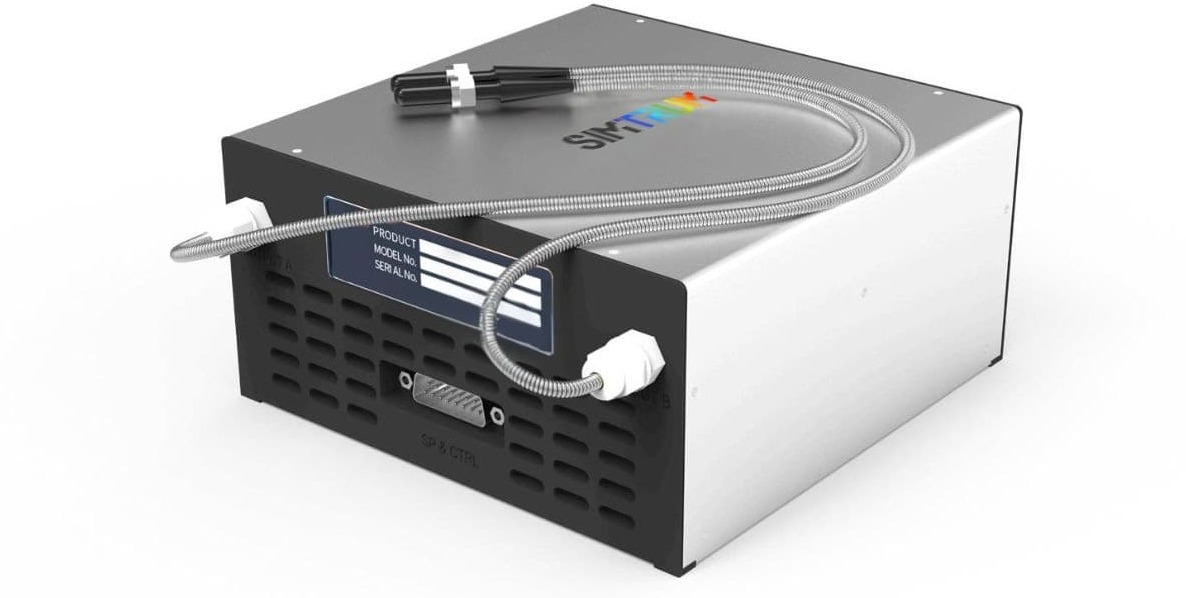

SIMTRUM offers triple-channel multi-mode lasers, which are cost-effective optoelectronic integrated light sources with independent control software for easy operation, and power calibration and alignment modules to deliver highly stable laser output with customizable wavelength and power. It is mainly used in the fields of flow cytometry, gene sequencing, medical imaging, and low-level laser therapy.
Features Triple-wavelength light sources can be output individually or synchronously Compact design with integrated optoelectronics Built-in power calibration and alignment module User-friendly independent operation software	Applications Flow Cytometry Gene Sequencing Blood Cell Analysis Medical Imaging Low-level Laser Therap

Products Specifications

Product Number	LL-ME01-MCL-488/525/638-30/90-1	LL-ME01-MCL-488/525/638-30/90-2
Operating Wavelength（Customizable）	488±3/525±3/638±3 nm
Spectral Width	＜0.5 nm
Output Power（Customizable）	Single Wavelength ≥30 mW, Triple-Wavelength ≥90 mW
Power Stability	RMS＜1.5% (24h，25℃)
Output Mode	Single multi-mode fiber output	Dual multi-mode fiber output
Output Fiber Core Diamet（Customizable）	50 μm
Output Fiber Connector（Customizable）	SMA905
Output Fiber Length	3±0.1 m
Cooling	Air-cooled
Operating Temperature	15-40℃
Storage Temperature	-40~55℃
Supply Voltage	24V
Power Consumption	＜20W
Dimension（L×W×H）	160×160×80
Weight	＜2kg

Model	Wavelength Options	Power Range
Four-channel Single-mode /Multi-mode laser （405-640 nm）	Single-mode：405/488/561/640 nm Multi-mode：405/488/525/638 nm	Single-mode＞20mW Multi-mode＞500mW
Triple-channel Multi-mode Laser (488/525/638 nm)	488/525/638 nm	≥90mW
Triplex (RGB) fiber-coupled white light lasers （445/520/635 nm）	445/520/635 nm	10mW-1W
Single Wavelength Liquid Light guide (LLG) LED Light Source(365-730 nm)	365 nm/ 385 nm/ 405 nm/ 440 nm/ 460 nm/ 470 nm/ 480 nm/ 525 nm/ 527 nm/ 555 nm/ 579 nm/ 590 nm/ 630 nm/ 650 nm/ 738 nm/ White	0.2W-2.3W
Multi-Wavelength Liquid Light guide (LLG) LED Light Source (360-730 nm)	360-660 nm（4 channels）/ 360-730nm（6 channels）	≥3.5W/≥4.5W
High Power Liquid Light guide (LLG) LED Light Source (365-730 nm)	365 nm/ 385 nm/405 nm/ 470 nm/ 505 nm/ 525 nm/ 530 nm/ 560nm/ 617 nm/ 625 nm/ 730nm/ 3000K/ 5500K/ 6500K	7W-80W

Technical Guide

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items	Detail	Unit	Remark
Application
Wavelength		nm	Customizable
Channel		/	Customizable
Output Power		W	Customizable
Output Options		/	Single-channel Output/Combined Light Output
Power Stability		%
Output Mode		/	Free Space/ Fiber Output

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		LL-ME01-MCL-488/525/638-30/90-1 Operating Wavelength: 488±3/525±3/638±3 nm, Spectral Width: ＜0.5 nm, Output Power: Single Wavelength ≥30 mW, Triple-Wavelength ≥90 mW, Power Stability: RMS＜1.5% (24h, 25℃), Output Mode: Single multi-mode fiber output		4-6 Weeks	$5606.05
		LL-ME01-MCL-488/525/638-30/90-2 Operating Wavelength: 488±3/525±3/638±3 nm, Spectral Width: ＜0.5 nm, Output Power: Single Wavelength ≥30 mW, Triple-Wavelength ≥90 mW, Power Stability: RMS＜1.5% (24h, 25℃), Output Mode: Dual multi-mode fiber output		4-6 Weeks	$6406.92
