Thermal infrared Hyperspectral Camera
Overview Specifications Application Case Related Products Order Now!
SIMTRUM's HY-1910 long-wave infrared hyperspectral camera (LWIR) adopts high-precision and high-efficiency free-form surface-convex grating spectroscopy technology, which is suitable for mineral research and environmental analysis. It can accurately capture the chemical information of the target object, and can also be used for the detection of industrial waste gas emissions, and has functions such as gas qualitative analysis and gas concentration quantitative analysisIt . Also,it can simultaneously set a large range of high-definition photography and Automatic gimbal in one, suitable for a variety of industrial gas detection, with automatic alarm, automatic tracking and other functions, but also can carry a UAV, low altitude scanning inspection and so on.

Features
  • Cover LWIR 7.7 ~ 12.5μm
  • Using reflection-type grating, which has high diffraction efficiency in the IR range
  • Less affected by stray light, with more stable performance
  • Using free-form surface-convex grating splitting technology, has higher accuracy and efficiency
  • Can carry out gas qualitative, gas concentration quantitative measurement



Application
  • Mineral research
  • Environmental analysis
  • Industrial waste gas emission detection

Parameter LA-HY01-1910-01
Mode of splitting Folded transformation - Reflection grating spectroscopy
Spectral range 7.7-12.5μm
Spectral resolution better than 40nm
Spectral sampling interval 30nm
F number F/2.0
Detector Refrigerated IR detector
Detector interface Gigabit Network
Pixel size of the detector 15µmx15 µm
Number of spatial channels 640
Number of spectral channels 128
Field of View (FOV) ≥12°
Lens interface C-Mount
Size 250mm*200mm*90mm
Weight ＜12kg
Working temperature 0-40℃
Storage temperature 0-50℃
Detectable gas Ammonia, sulfur hexafluoride, methane, hydrogen sulfide and sulfur oxides

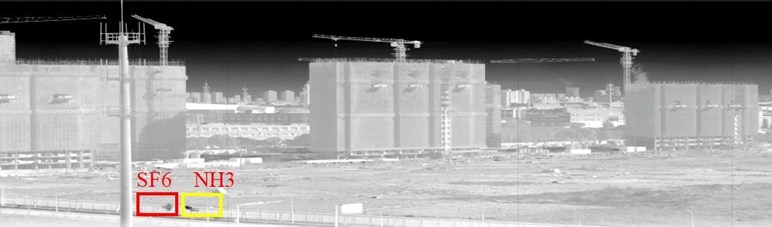

Field test for leakage of sulfur hexafluoride (SF6)


Model Link
Line Scan Hyperspectral Camera https://www.simtrum.com/WebShop/ProductList5.aspx?pid=692
Snapshot Multispectral Camera https://www.simtrum.com/WebShop/ProductList5.aspx?pid=1964
Multispectral Imaging Systems https://www.simtrum.com/WebShop/ProductList5.aspx?pid=1966
Multispectral Camera for Microscope https://www.simtrum.com/WebShop/ProductList5.aspx?pid=1967
Multispectral Drone Cameras https://www.simtrum.com/WebShop/ProductList5.aspx?pid=1965



Model Spectral Range Spectral resolution Resolution Frame rate
Line-scan hyperspectral camera 220-380nm better than 2nm 2048*2048 40fps
1056*1027
400-1000nm better than 7nm 1312*1082 130fps
950-1700nm better than 9nm 320*256 330fps
640*512
2900-4300nm better than 20nm 320*256 642 fps @ 200 bands
Multi-detector line-scan hyperspectral camera 400-1700nm 400-1000nm:better than 2.8nm 400-1000nm:5.86 µm x 5.86 µm 400-1000nm:128fps
900-1700nm: better than6nm 900-1700nm:15µm x15 µm 900-1700nm: 175fps
400-2500nm 400-1000nm:better than2.8nm 400-1000nm:5.86 µm x 5.86 µm 400-1000nm:128fps
100-2500nm: better than10nm 100-2500nm:15µm x15 µm 1000-2500nm:100fps
Thermal infrared hyperspectral camera 7700-12500nm better than 40nm 15µm x15 µm /
Microscopic Hyperspectral Imager 400-1000nm better than 2.8nm 1920*1200 128fps
900-1700nm better than 6nm 640*512 140fps
UAV-Borne Hyperspectral Imaging System 400-1000nm better than 2.8nm 1920*1200 128fps
900-1700nm better than 6nm 1280*1024 125fps
900-2500nm better than 10nm 640*512 ≥100fps
400-2500nm 400-1000nm:better than 2.8nm 400-1000nm:5.86 µm x 5.86 µm 400-1000nm:128fps
1000-2500nm:better than 10nm 100-2500nm:15µm x15 µm 1000-2500nm:100fps
Portable hyperspectral camera 400-1000nm better than 2.8nm 1920*1200 50/128fps
900-1700nm better than 6nm 640*512 175fps




Technical Guide

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items Detail Remark
Application? Agriculture/Mining/Food safety/
Industrial sorting/Environmental monitoring
What is the required spectral range? UV/VIS/NIR/MIR/LWIR
What spectral resolution is required? eg:2nm
What spatial resolution is required?
What is the size of the field of view? eg:18°
What is the motion state of the object being measured? Motion/static?
What is the required frame rate? Moving objects require a high frame rate;
otherwise, there will be ghosting when shooting
What is the required data interface? USB /GigE port
Is a lighting source needed? The core of hyperspectral imaging is to obtain the reflection information of the target object at different wavelengths. Under low-light conditions, an external light source is required for illumination. Meanwhile, external light source illumination can provide more uniform and stable light, avoiding the dark differences and spectral distortion of the image caused by uneven illumination. The lighting source can be selected as: halogen lamp /LED light source
Is a reflectance board needed? The function of a reflectance board is to provide a calibration reference for hyperspectral data, ensuring the accuracy and traceability of spectral reflectance data.Since there are usually certain differences in reflectance measured by different devices and at different times, after calibration with a reflectance board, the spectral data of the same target collected by different cameras/times can be directly compared. That is: The function of the reflectance board is to enable the quantification of hyperspectral data.



We are here for you!





Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).
