High Speed Balanced Photodetector(1000~1575nm)
Overview & Specifications Related Products Order Now！

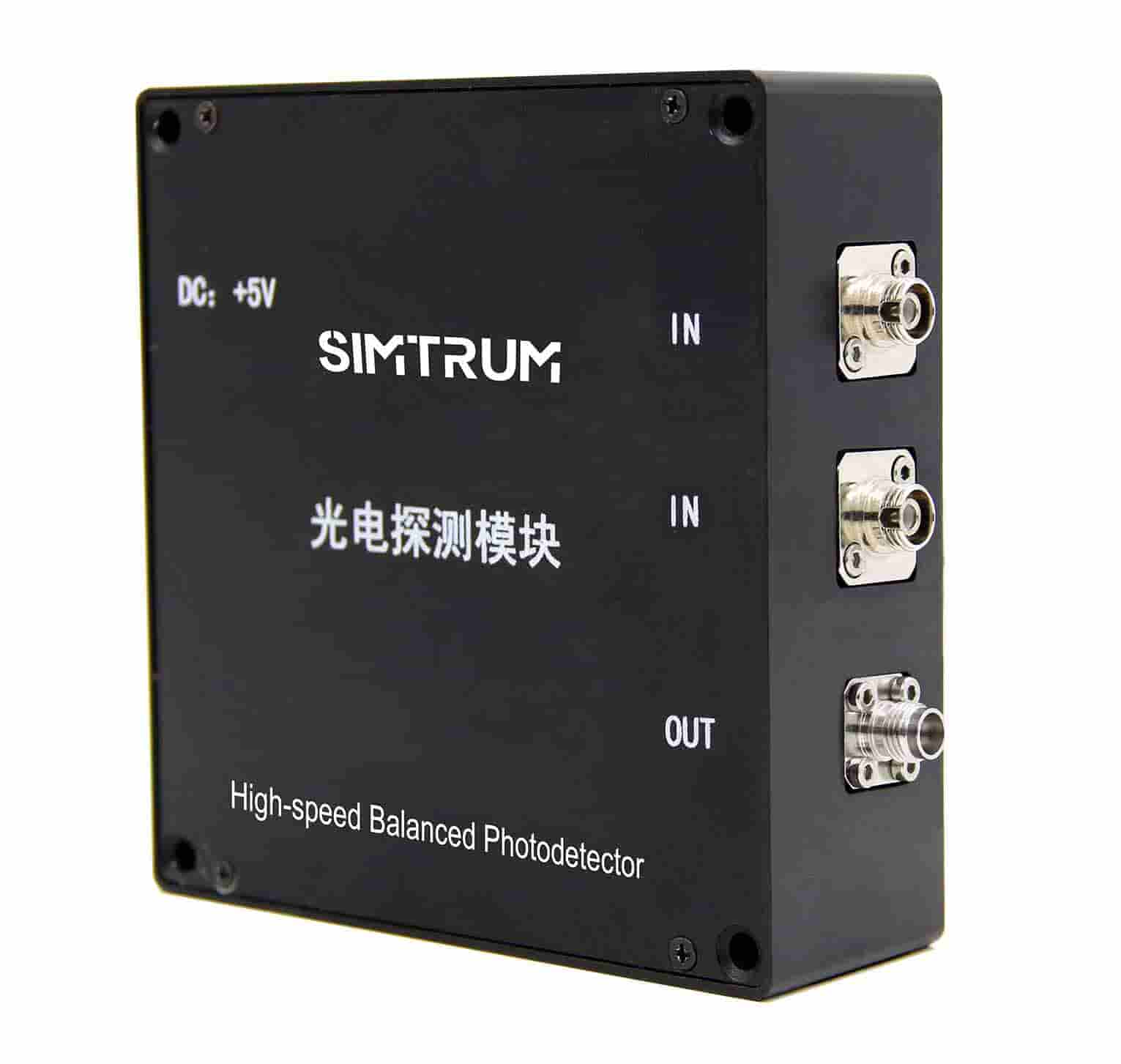

SIMTRUM's high speed balanced optical detection module integrates two matching photodiodes with high speed response , which effectively reduces laser noise and common mode noise, improves the system's signal-to-noise ratio, and has low noise, high gain, and easy to use.It is mainly used in spectroscopy, heterodyne detection, optical time-lapse measurement, optical coherence tomography and other fields.

Features

  • Spectral range :1000~1620nm, 1525-1575nm
  • 3dB bandwidth: 10G, 20G, 40GHz
  • High common mode rejection ratio

Applications

  • Coherent detection
  • Microwave photonics
  • High-speed optical sensing


Product specifications

General parameters

Parameters LA-CQ01-BPD-10G LA-CQ01-BPD-25G LA-CQ01-BPD-40G Unit
  Operating Wavelength(λ) 1000~1620 1525~1575 nm
  -3dB Bandwidth(BW) ＞10 ＞25 ＞38 GHz
  Saturation power(Ps) 10 dBm
  Common mode rejection(CMRR) ＞20（typ. 25） ＞15（typ. 18） dB
  Resposivity@1550nm(R) ＞0.9 ＞0.8 ＞0.45 A/W
  Dark current(Id) ＜20 ＜200（typ. 5） nA
  Polarization depended loss(PDL) ＜0.6 ＜0.8（typ. 0.4） dB
  Optical return loss(ORL) ＞25（typ. 30） ＞27 dB
  DC power supply(U) DC 12V, 1A V
  Output coupling AC or DC \
  Output impedance(Z) 50 Ω
  RF Connector SMA(f) K(f) V(f) \


Frequency response curve

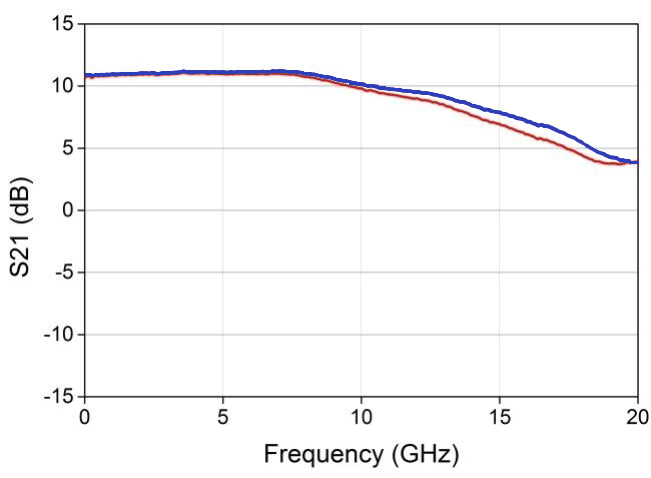

    (a)LA-CQ01-BPD-10G

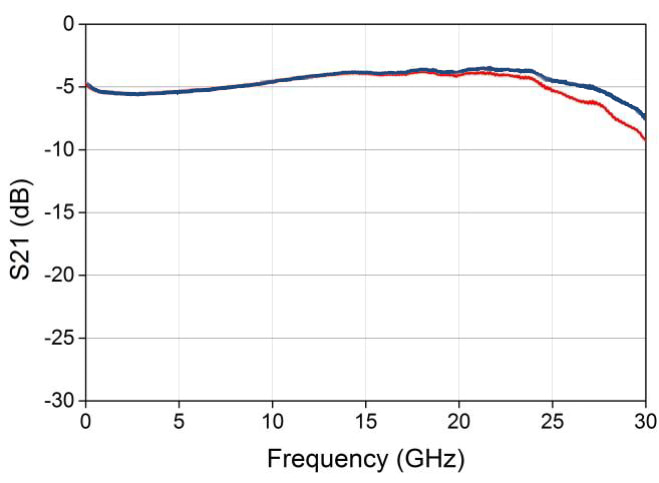

    (b)LA-CQ01-BPD-25G

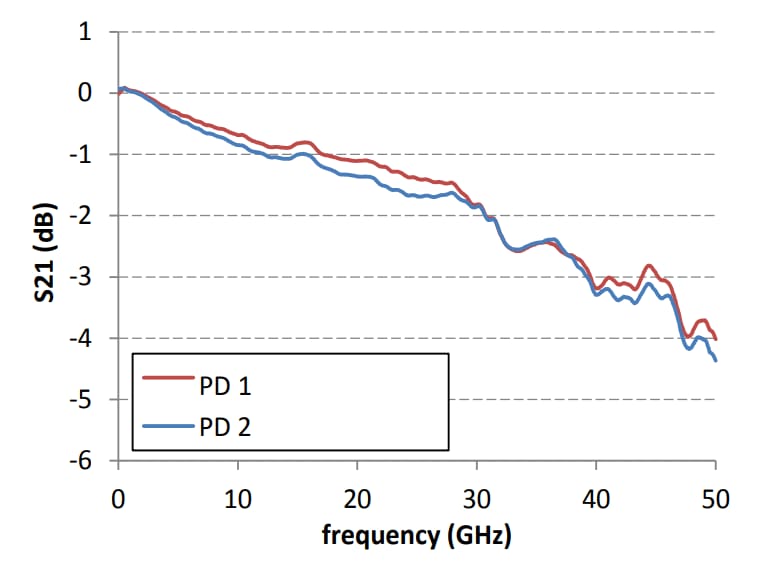

     (c)LA-CQ01-BPD-40G

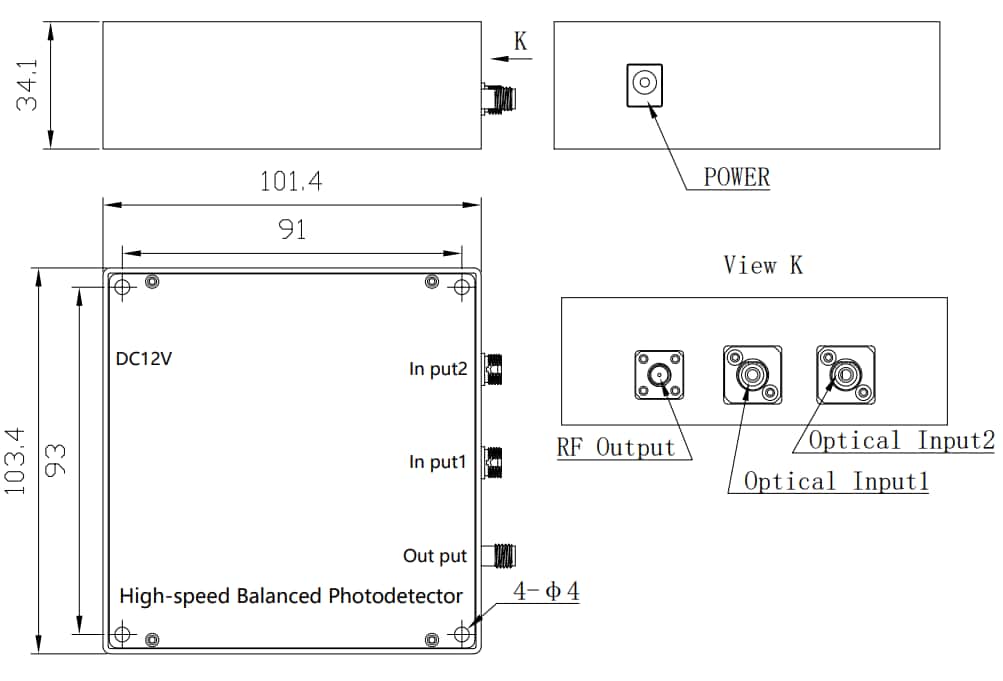

Limit Condition   Mechanical Diagram (mm)
Model Min Type Max Unit
  Max. input optical power(Pin) / / 10 mW
  Operating Temperature(Top) -10 / 60 ℃
  Storage Temperature(Tst) -40 / 85 ℃
  Storage Humidity(RH) 5 / 90 %
