Energy tunable sub-nanosecond microchip lasers (266-1064 nm)

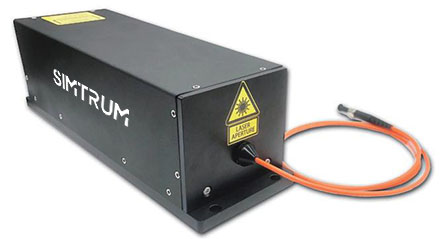

SIMTRUM provides energy tunable sub-nanosecond microchip lasers with built-in electronic control module, optical trigger output module and laser driver circuitry in a fully sealed design for high reliability and plug-and-play operation. This compact, plug-and-play product is widely used in laser engraving, laser marking, laser remote sensing, acousto-optic imaging and other fields.
Features Adjustable Repetition Rate (1-200 Hz) Energy Output Adjustable by Upper Computer Software Low Jitter of Optical Trigger Output Signal (<100 ps) High Reliability, Fully Sealed Design Plug and Play	Applications Photoluminescence Laser Engraving Raman Spectroscopy Microscopy Laser Remote Sensing Acousto-Optical Imaging

Product Specifications

Product Number	LL-RL01-1064-0.2-50-1-FC	LL-RL01-532-0.2-25-1-FC	LL-RL01-355-0.2-25-1-FC	LL-RL01-266-0.2-10-1-FC
Wavelength（nm）	1064	532	355	266
Fiber-coupled Pulse Energy（μJ）	50	25	25	10
Energy Stability	RMS≤3%
Energy Adjustment Step Accuracy	1%
Pulse Width（ns）	≤1
Repetition Rate（Hz）*	1-200 Hz Adjustable
Polarization Characteristics	≥100：1
Fiber Parameters	200μm, 0.22NA
Power Input*	24V DC
Modulation Input	TTL 0-5V, SMB Interface
Control Interface	RS232
System Average Power Consumption (W)	＜10
System Peak Power Consumption (W)	＜20
Operating Temperature（℃）	15~35
Storage Temperature（℃）	-10~60
Dimension (W×H×L)	82 mm×79 mm×250 mm

*Continuous pulse mode and burst mode support an operating frequency of 16-200 Hz.
*Power supply adapter can support 90-260V AC power input.
*All data in this table are typical values obtained from room temperature testing at 25℃.

Test Data

Typical Pulse	Optical Trigger Output
Spot Shape

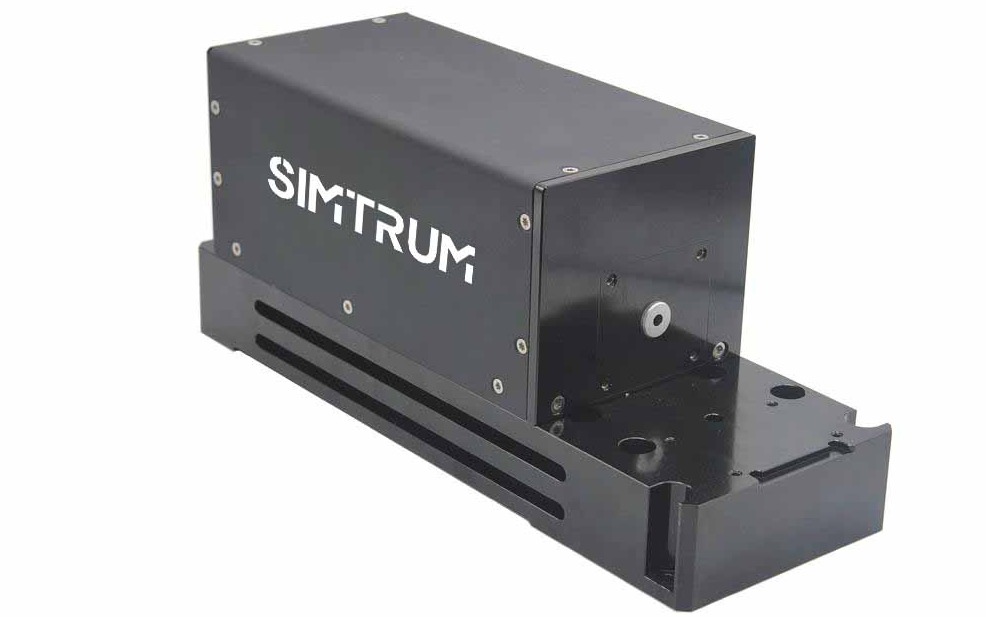

SIMTRUM provides energy-tunable sub-nanosecond microchip lasers with built-in electronic control module, optical trigger output module and laser driver circuitry in a fully sealed design for high reliability. The compact, plug-and-play spatial output products with divergence angles up to 2 mrad or less are widely used in laser engraving, laser marking, laser remote sensing, and acousto-optic imaging.

Features

Adjustable Repetition Rate (1-200 Hz)
Energy Output Adjustable by Upper Computer Software
Low Jitter of Optical Trigger Output Signal (<100 ps)
High Reliability, Fully Sealed Design
Plug and Play

Applications

Photoluminescence
Laser Engraving
Raman Spectroscopy
Microscopy
Laser Remote Sensing
Acousto-Optical Imaging

Product Specifications

Product Number		LL-RL01-1064-0.2-60-1-FS	LL-RL01-532-0.2-30-1-FS	LL-RL01-355-0.2-25-1-FS	LL-RL01-266-0.2-15-1-FS
Wavelength（nm）		1064	532	355	266
Free Space Pulse Energy（μJ）		60	30	25	15
Energy Stability		RMS≤3%
Energy Adjustment Step Accuracy		1%
Pulse Width（ns）		≤1
Repetition Rate（Hz）*		1-200 Hz Adjustable
Beam Mode		TEM00
Full Angle Divergence Typ. (mrad)	Horizontal @1/e²	≤2
	Vertical @1/e²	≤2
Polarization Characteristics		≥100：1
Power Input*		24V DC
Modulation Input		TTL 0-5V, SMB Interface
Control Interface		RS232
System Average Power Consumption (W)		＜10
System Peak Power Consumption (W)		＜20
Operating Temperature（℃）		15~35
Storage Temperature（℃）		0~60
Dimension (W×H×L)		82 mm×102.8 mm×240 mm

*Continuous pulse mode and burst mode support an operating frequency of 16-200 Hz.
*All data in this table are typical values obtained from room temperature testing at 25℃.

Test Data

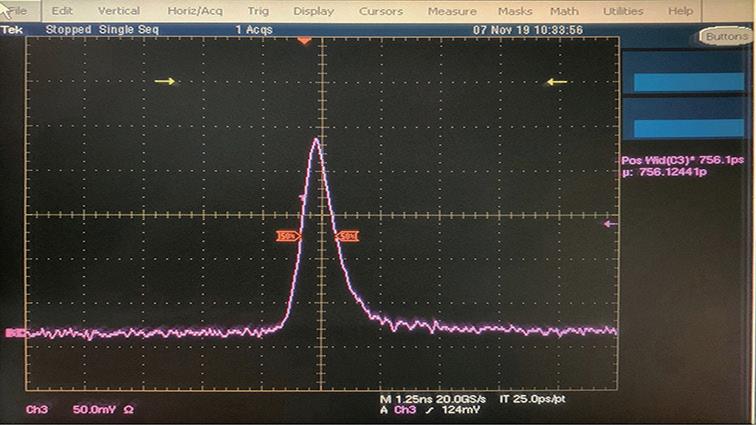

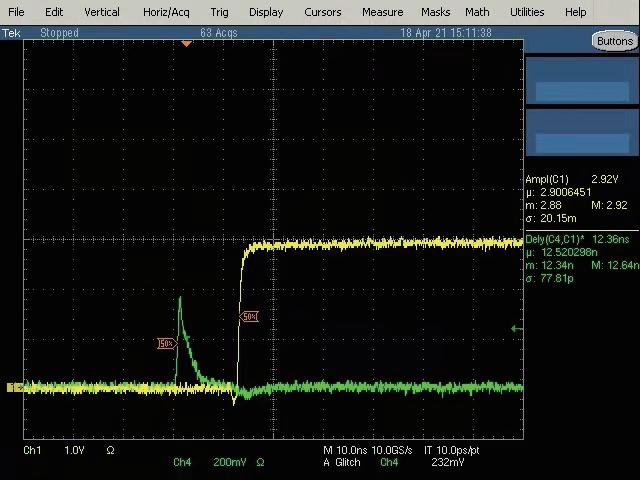

Typical Pulse	Optical Trigger Output

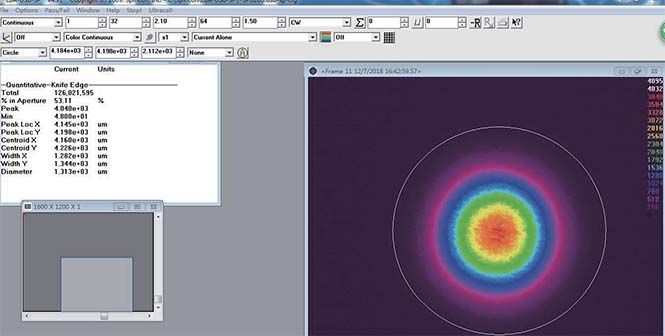

Spot Shape

Model	Wavelength Options	Pulse Width	Rep. Rate	Pulse Energy
Energy tunable sub-nanosecond microchip lasers (266-1064 nm)	266-1064 nm	≤1 ns	1-200 Hz	10-60 μJ
High Repetition Rate sub-nanosecondmicrochip lasers (266-1064 nm)	266-1064 nm	1.2-2.5 ns	1-20 kHz	2-400 μJ
Erbium glass Eye-safe nanosecond Laser (1535 nm)	1535 nm	5-12 ns	5/10 Hz, 1-5 kHz	100 μJ-3 mJ
Microchip laser accessories (213-1064 nm)	213-1064 nm	/	/	/
DPSS nanosecond Laser (266 nm-3.4 μm)	266/351/355/527/532/ 1064/3400 nm	5-60 ns	1-200 kHz	25 μJ-2 mJ
Single longitudinal mode picosecond microchip lasers (532/1064 nm)	532/1064 nm	300-500 ps	20/100 kHz	0.5-3 μJ
Low repetition rate/Long pulsed picosecond microchip lasers (213-1064 nm)	213-1064 nm	300-900 ps	10/100 Hz, 1-10 kHz	2-400 μJ

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items	Detail	Unit	Remark
Application
Working Wavelength		nm
Average Output Power		mW
Pulse Width		ns
Pulse Energy		μJ
Repetition Rate		Hz
Energy Stability		%
Output Method		/	Fiber-coupled/ Free Space

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
LL-RL01-1064-0.2-50-1-FC Working Wavelength: 1064nm, Pulse Energy: 50μJ, Pulse Width: ≤1ns, Repetition Rate: 1-200Hz, Fiber Parameter: 200μm, 0.22NA ,Fiber-coupled Output	Contact us	Request for quote
LL-RL01-532-0.2-25-1-FC Working Wavelength: 532nm, Pulse Energy: 25μJ ,Pulse Width: ≤1ns ,Repetition Rate: 1-200Hz, Fiber Parameter: 200μm, 0.22NA ,Fiber-coupled Output	Contact us	Request for quote
LL-RL01-355-0.2-25-1-FC Working Wavelength: 355nm, Pulse Energy: 25μJ ,Pulse Width: ≤1ns ,Repetition Rate: 1-200Hz ,Fiber Parameter: 200μm, 0.22NA ,Fiber-coupled Output	Contact us	Request for quote
LL-RL01-266-0.2-10-1-FC Working Wavelength: 266nm, Pulse Energy: 10μJ ,Pulse Width: ≤1ns ,Repetition Rate: 1-200Hz, Fiber Parameter: 200μm, 0.22NA ,Fiber-coupled Output	Contact us	Request for quote
LL-RL01-1064-0.2-60-1-FS Working Wavelength: 1064nm ,Pulse Energy: 60μJ ,Pulse Width: ≤1ns ,Repetition Rate: 1-200Hz ,Free Space Output	Contact us	Request for quote
LL-RL01-532-0.2-30-1-FS Working Wavelength: 532nm ,Pulse Energy: 30μJ ,Pulse Width: ≤1ns ,Repetition Rate: 1-200Hz ,Free Space Output	Contact us	Request for quote
LL-RL01-355-0.2-25-1-FS Working Wavelength: 355nm, Pulse Energy: 25μJ ,Pulse Width: ≤1ns ,Repetition Rate: 1-200Hz ,Free Space Output	Contact us	Request for quote
LL-RL01-266-0.2-15-1-FS Working Wavelength: 266nm,Pulse Energy: 15μJ, Pulse Width: ≤1ns ,Repetition Rate: 1-200Hz, Free Space Output	Contact us	Request for quote
