Microchip laser accessories (213-1064 nm)

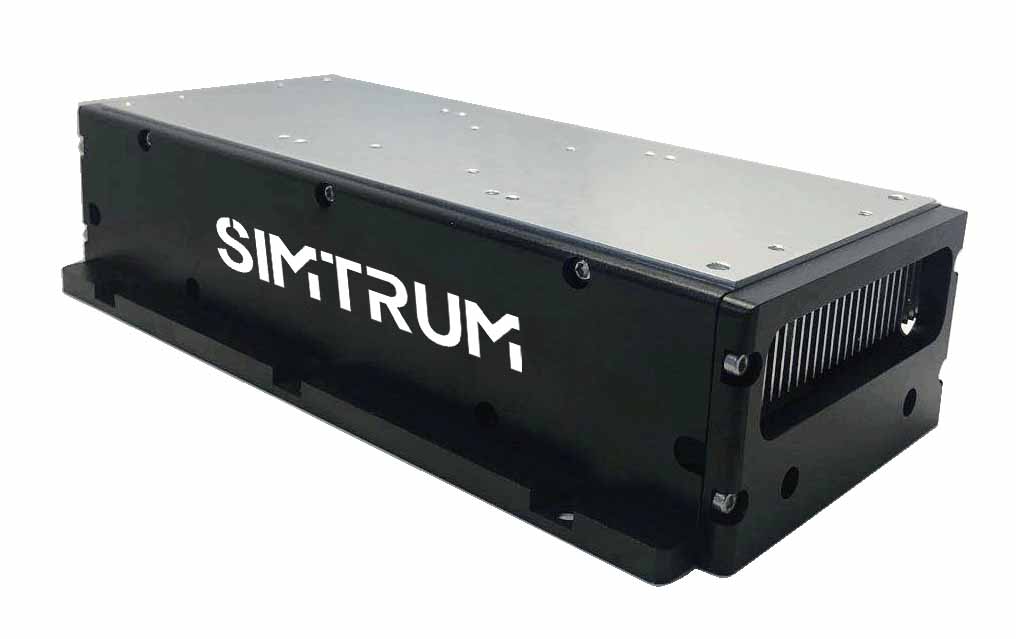

SIMTRUM provides laser heat sinks with standardized design and standard metric screw mounting for stable and reliable long-term operation, which are widely used in laser engraving, laser marking, laser remote sensing, acousto-optic imaging and other fields.
Features Optional Passive/Active Cooling Vibration Isolation of Fan and Heat Sink Body	Applications Laser Marking Laser Engraving Raman Spectroscopy Microscopy Laser Remote Sensing Acousto-Optical Imaging

Specifications

Product Number	Parameters	Cooling Method
LL-RL01-AC-H-5-P	Thermal Power＜5 W@Ambient Temperature of 25℃	Passive
LL-RL01-AC-H-10-P	Thermal Power＜10 W@Ambient Temperature of 25℃	Passive
LL-RL01-AC-H-30-A	Thermal Power＜30 W@Ambient Temperature of 25℃	Active

*Precautions for use:

1) Please screw the laser and heat sink tightly and use good heat-conducting material to fill the gap.
2) Enough air ducts should be left at the outlet of the system fan to ensure that the hot air can be exported smoothly.
3) In addition to considering its own power consumption, the thermal management of the laser is also related to the way of using the laser and the heat dissipation environment.
4) SIMTRUM can provide technical support for thermal analysis of lasers for special applications.

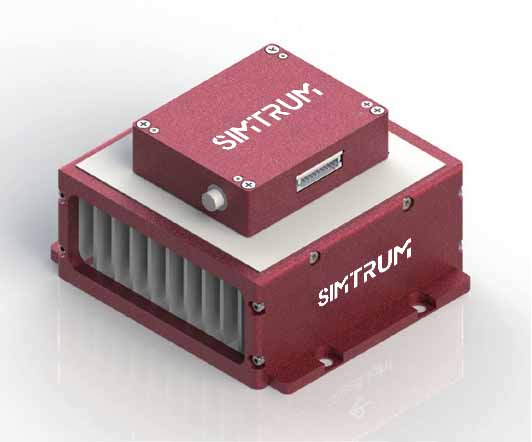

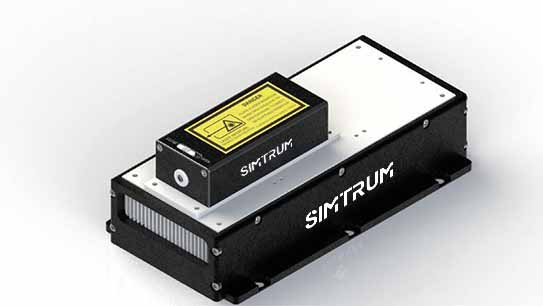

Installation Diagram

Dimension

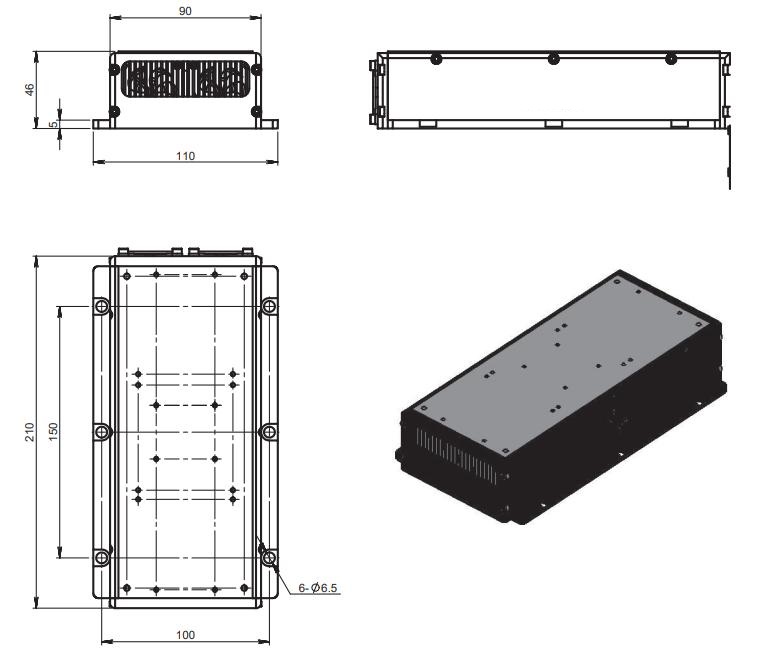

LL-RL01-AC-H-10-P/LL-RL01-AC-H-30-A Dimension Drawing

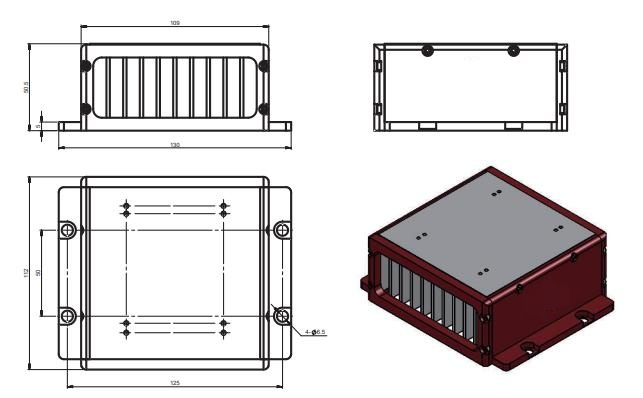

LL-RL01-AC-H-5-P Dimension Drawing

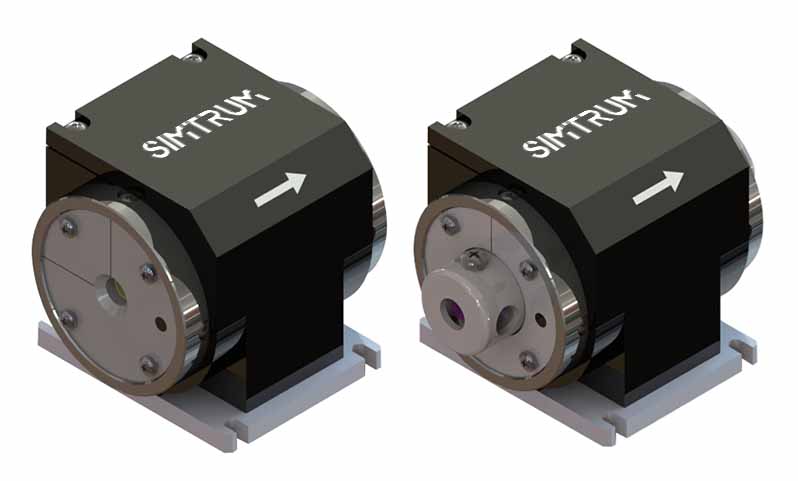

SIMTRUM provides free-space faraday rotators and isolators using high-quality TGG magneto-optical crystals, polarizing beam-splitting prisms and high-coercivity magnetic materials, ensuring that this series of products have the advantages of high isolation, good transmittance, high damage-resistance thresholds and wide temperature ranges, which are widely used in the fields of seeded lasers, mode-locked lasers, and optical measurement equipment.
Features High Isolation Low Insertion Loss Multiple Wavelength Options Multiple Apertures Dual Escape Windows at Both Ends Controlled Output Polarization	Applications Seed lasers Semiconductor Lasers Mode-Locked Lasers Optical Parametric Oscillators (OPO) Optical Measuring Devices

Specifications

Product Type	Rotator
Product Number	LL-RL01-R-1030-2.5	LL-RL01-R-1030-5	LL-RL01-R-1064-2.5	LL-RL01-R-1064-5
Center Wavelength (nm)	1030		1064
Aperture (mm)	2.5	5	2.5	5
Rotation angle (°)	45°±1°@25 ℃
Extinction Ratio (dB)	＞30 dB@25 ℃
Transmittance (%)	＞95%@25 ℃
Damage Threshold (J/cm²)	5 J/cm2@10 ns			10 J/cm2@10 ns
Package Form	3#
Product Type	Isolator
Product Number	LL-RL01-I-1030-2.5	LL-RL01-I-1030-5	LL-RL01-I-1064-2.5	LL-RL01-I-1064-5
Center Wavelength (nm)	1030		1064
Aperture (mm)	2.5	5	2.5	5
Isolation (dB)	＞30 dB@25 ℃
Transmittance (%)	＞90%@25 ℃
Damage Threshold (J/cm²)	5 J/cm2@10 ns
Polarizer	PBS Cube
Package Form	3#

Dimension

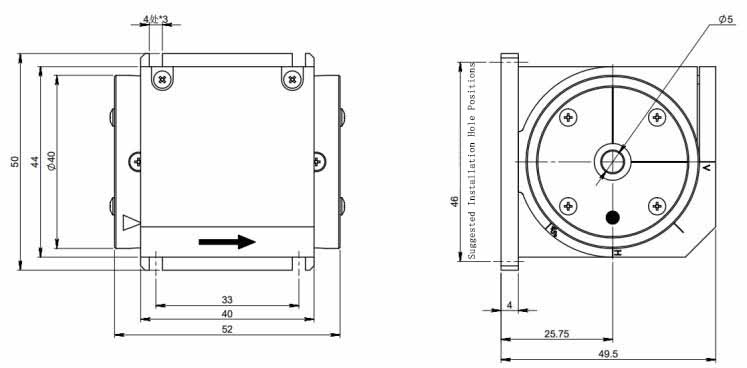

3# Package Form Rotator

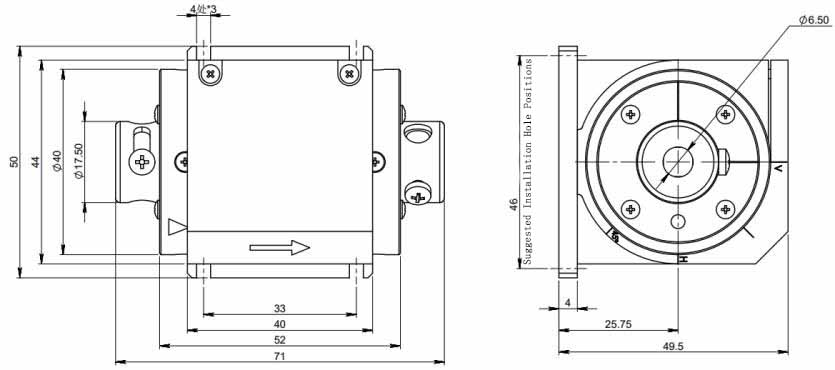

3# Package Form Isolator

Model	Wavelength Options	Pulse Width	Rep. Rate	Pulse Energy
Energy tunable sub-nanosecond microchip lasers (266-1064 nm)	266-1064 nm	≤1 ns	1-200 Hz	10-60 μJ
High Repetition Rate sub-nanosecondmicrochip lasers (266-1064 nm)	266-1064 nm	1.2-2.5 ns	1-20 kHz	2-400 μJ
Erbium glass Eye-safe nanosecond Laser (1535 nm)	1535 nm	5-12 ns	5/10 Hz, 1-5 kHz	100 μJ-3 mJ
Microchip laser accessories (213-1064 nm)	213-1064 nm	/	/	/
DPSS nanosecond Laser (266 nm-3.4 μm)	266/351/355/527/532/ 1064/3400 nm	5-60 ns	1-200 kHz	25 μJ-2 mJ
Single longitudinal mode picosecond microchip lasers (532/1064 nm)	532/1064 nm	300-500 ps	20/100 kHz	0.5-3 μJ
Low repetition rate/Long pulsed picosecond microchip lasers (213-1064 nm)	213-1064 nm	300-900 ps	10/100 Hz, 1-10 kHz	2-400 μJ

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items	Detail	Unit	Remark
Application
Working Wavelength		nm
Aperture		mm
Rotation angle		°	Rotator
Extinction Ratio		dB	Rotator
Isolation (dB)		dB	Isolator
Transmittance		%
Damage Threshold		J/cm2

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
LL-RL01-R-1030-2.5 Center Wavelength: 1030nm ,Aperture: 2.5mm ,Rotation Angle: 45°±1°@ 25℃ ,Extinction Ratio: ＞30dB@ 25℃ ,Transmission Rate: ＞95%@ 25℃ ,Damage Threshold: 5J/cm2 ,Package Type: 3#	Contact us	Request for quote
LL-RL01-R-1030-5 Center Wavelength: 1030nm, Aperture: 5mm ,Rotation Angle: 45°±1°@ 25℃ ,Extinction Ratio: ＞30dB@ 25℃ ,Transmission Rate: ＞95%@ 25℃ ,Damage Threshold: 5J/cm2 ,Package Type: 3#	Contact us	Request for quote
LL-RL01-R-1064-2.5 Center Wavelength: 1064nm, Aperture: 2.5mm ,Rotation Angle: 45°±1°@ 25℃, Extinction Ratio: ＞30dB@ 25℃ ,Transmission Rate: ＞95%@ 25℃, Damage Threshold: 5J/cm2, Package Type: 3#	Contact us	Request for quote
LL-RL01-R-1064-5 Center Wavelength: 1064nm, Aperture: 5mm ,Rotation Angle: 45°±1°@ 25℃ ,Extinction Ratio: ＞30dB@ 25℃ ,Transmission Rate: ＞95%@ 25℃, Damage Threshold: 10J/cm2, Package Type: 3#	Contact us	Request for quote
LL-RL01-I-1030-2.5 Center Wavelength: 1030nm ,Aperture: 2.5mm, Isolation: ＞30dB@ 25℃, Transmission Rate: ＞90%@ 25℃, Polarizer: PBS Cube, Damage Threshold: 5J/cm2 ,Package Type: 3#	Contact us	Request for quote
LL-RL01-I-1030-5 Center Wavelength: 1030nm, Aperture: 5mm, Isolation: ＞30dB@ 25℃, Transmission Rate: ＞90%@ 25℃ ,Polarizer: PBS Cube ,Damage Threshold: 5J/cm2 ,Package Type: 3#	Contact us	Request for quote
LL-RL01-I-1064-2.5 Center Wavelength: 1064nm, Aperture: 2.5mm, Isolation: ＞30dB@ 25℃, Transmission Rate: ＞90%@ 25℃ ,Polarizer: PBS Cube ,Damage Threshold: 5J/cm2 ,Package Type: 3#	Contact us	Request for quote
LL-RL01-I-1064-5 Center Wavelength: 1064nm, Aperture: 5mm, Isolation: ＞30dB@ 25℃, Transmission Rate: ＞90%@ 25℃ ,Polarizer: PBS Cube ,Damage Threshold: 5J/cm2, Package Type: 3#	Contact us	Request for quote
