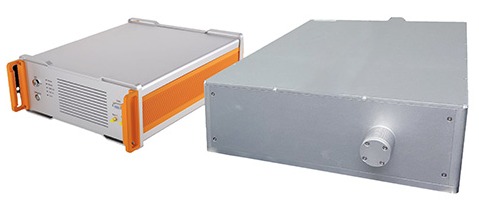

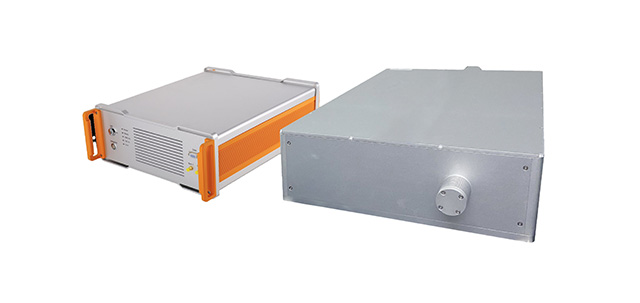

532 nm High Power Picosecond Laser

High Power Standard（20mW） Related Products Order Now!

SIMTRUM provides the 532 nm picosecond lasers equipped with industrial-grade ultra-fast pump lasers and innovative frequency doubling technology, featuring high output power, long operating lifetimes, good power stability and excellent beam quality. As a reliable and fully integrated turnkey system, the laser is used in a wide range of applications such as multiphoton microscopy, semiconductor inspection, two-photon lithography and materials science research.
Features Excellent Beam Quality Power Stability ＜1% Long Operating Lifetimes High Peak Power Abundant Customisation Options	Applications Semiconductor wafer detection Terahertz Wave Generation Ultrafast and Nonlinear Optics Two-photon/ Multi-photon Microscopy Two-photon Polymetization Quantum Optics

Product Specifications

Product Number	LL-NP01-532-10-50-customized
Working Wavelength	532±1 nm
Pulse Width	＜10 ps
Repetition Rate	50 MHz (20-80 MHz optional)
Average Output Power	＞1 W (up to 8W optional)
Average Power Stability（%）	≤1% RMS (12 hours@25℃）
Beam Quality	M2＜1.2
Polarization Extinction Ratio (PER)	＞20 dB
Output Type	Spatially collimated output
Supply Voltage	100-240 VAC
Operational Temperature	15-35℃
Operational Humidity	20~80% (non-condensing)
Dimensions	777.5×380×137.2 mm, 445×383.5×97 mm
Cooling	Air cooling

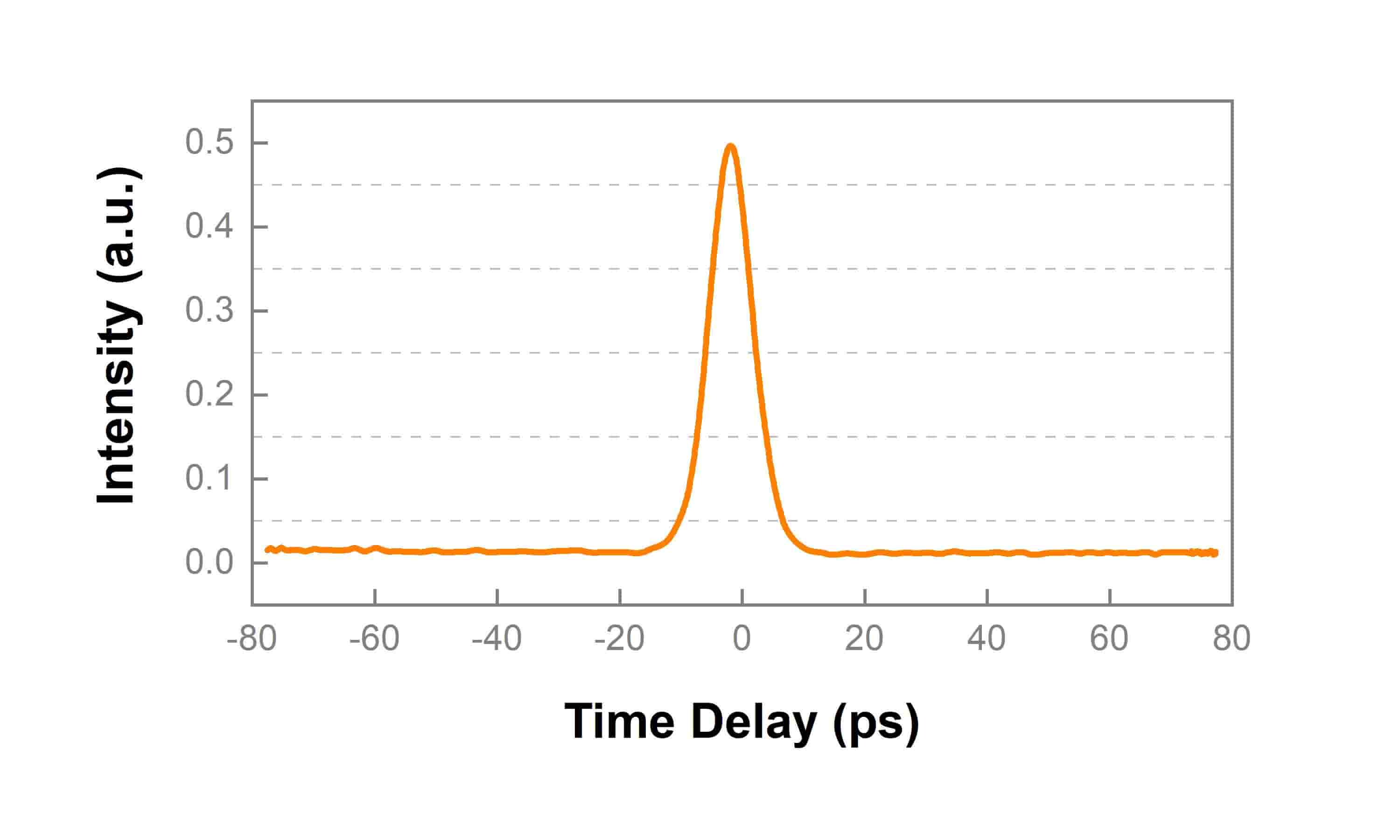

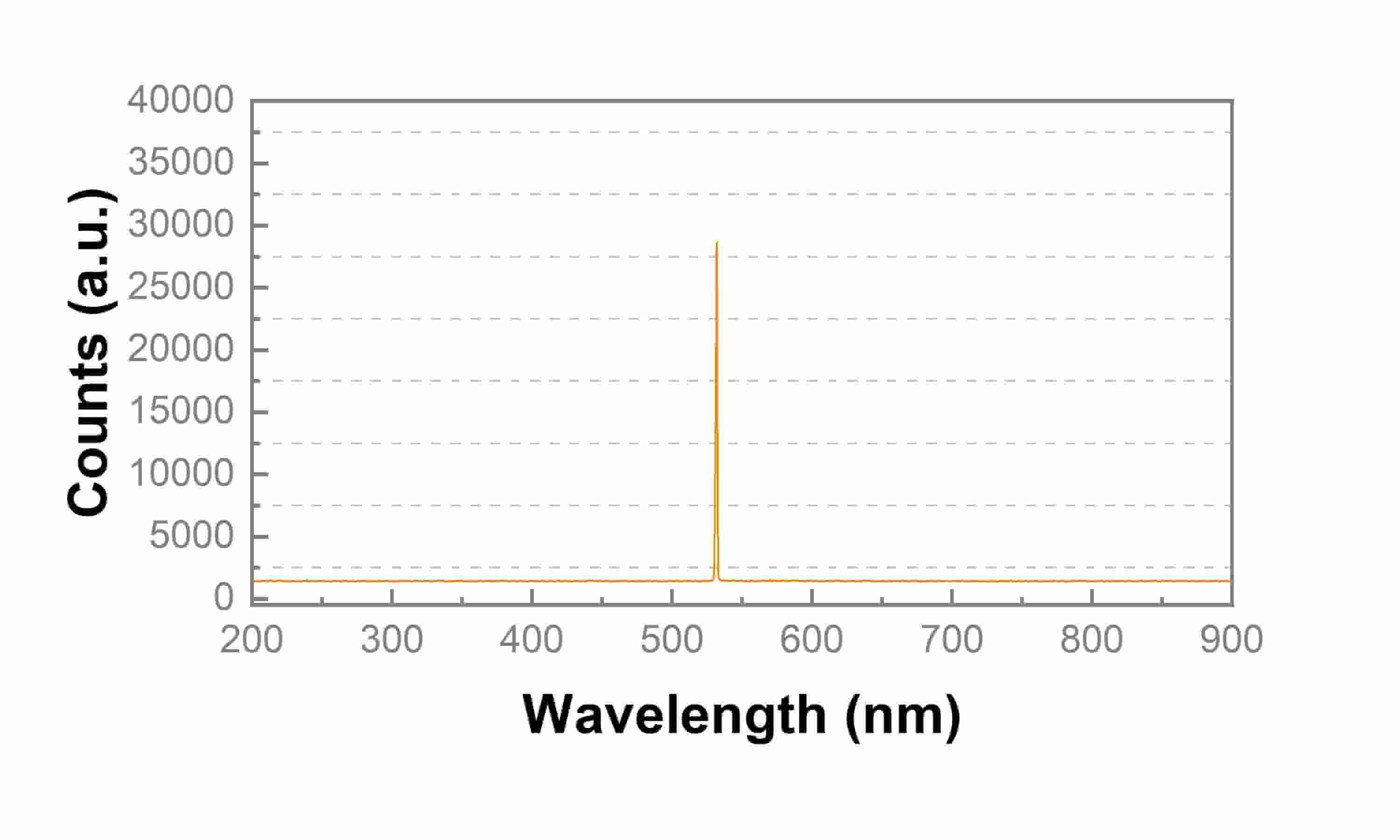

Testing Data

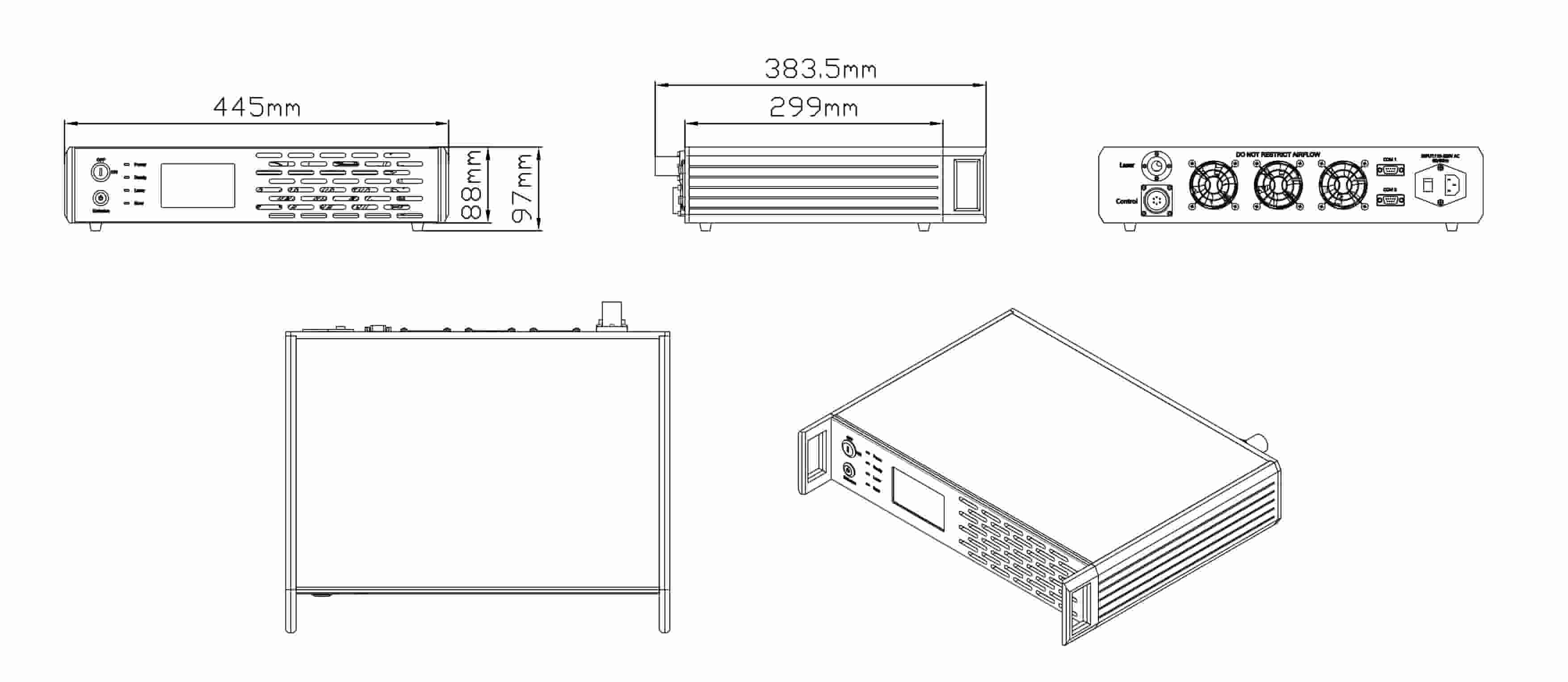

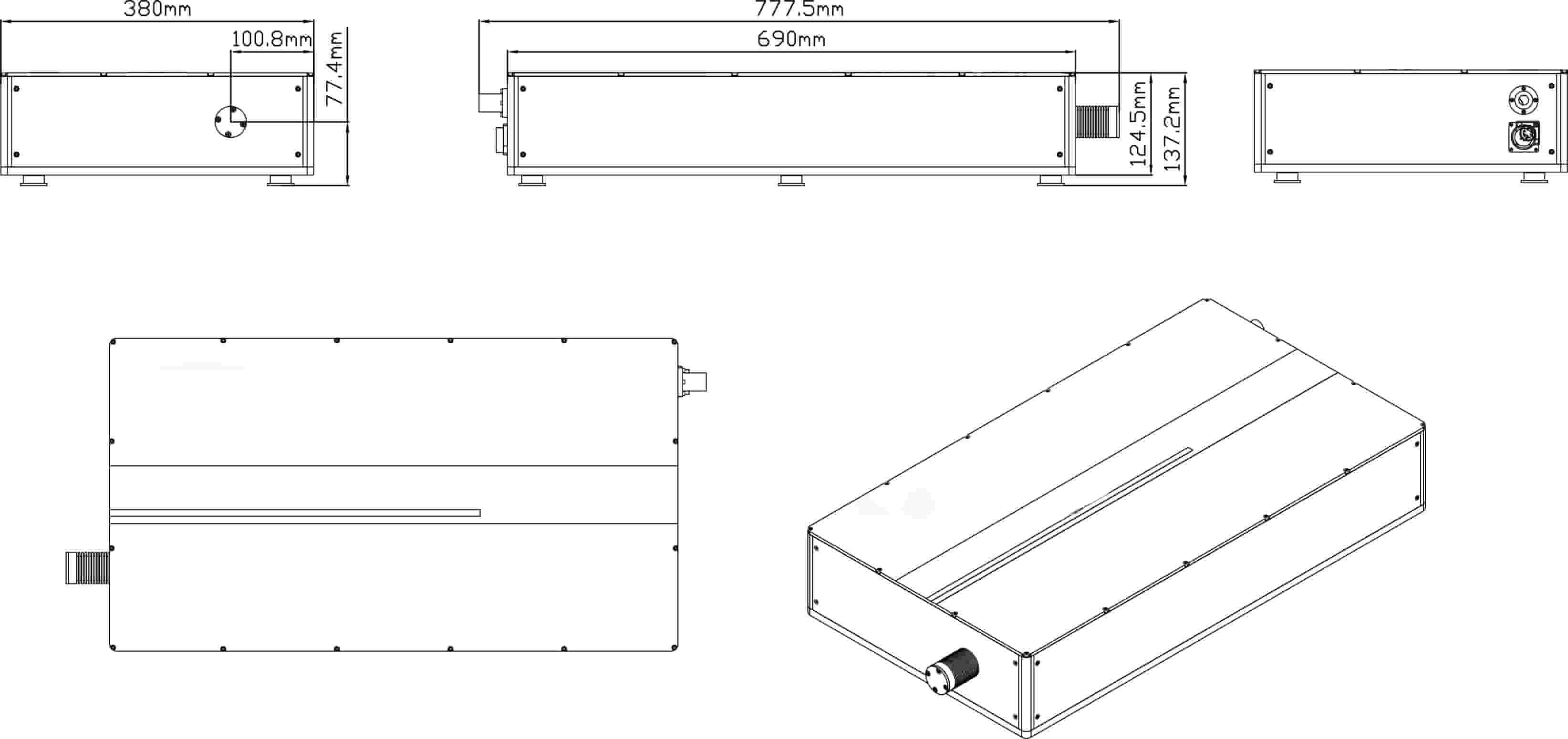

Dimensions

SIMTRUM provides the 532 nm picosecond lasers with high output power, long operating lifetimes, good power stability and excellent beam quality. As a highly integrated product, the laser can be remotely controlled via software and is ideally suited for building optical and spectroscopic systems for a wide range of applications such as harmonic imaging, two-photon polymerization and nonlinear optics.
Features Excellent Beam Quality Power Stability ＜0.5% Compact Structure Abundant Customisation Options	Applications Second Harmonic Generation (SHG) Imaging Third Harmonic Generation (THG) Imaging Fluorescence lifetime imaging Two-photon Polymerization Nonlinear Optics

Product Specifications

Product Number	LL-NP01-532-15-50-20
Working Wavelength	532±10 nm
Pulse Width	＜15 ps
Repetition Rate	50 MHz (20-50 MHz optional)
Average Output Power	＞20 mW (up to 8W optional)
Average Power Stability（%）	≤0.5% RMS (12 hours@25℃）
Beam Quality	TEM00, M2＜1.3
Polarization Extinction Ratio (PER)	＞20 dB
Output Type	Spatially collimated output
Supply Voltage	12 VDC
Operational Temperature	15-35℃
Operational Humidity	20~80% (non-condensing)
Dimensions	235×140×86 mm
Cooling	Air cooling

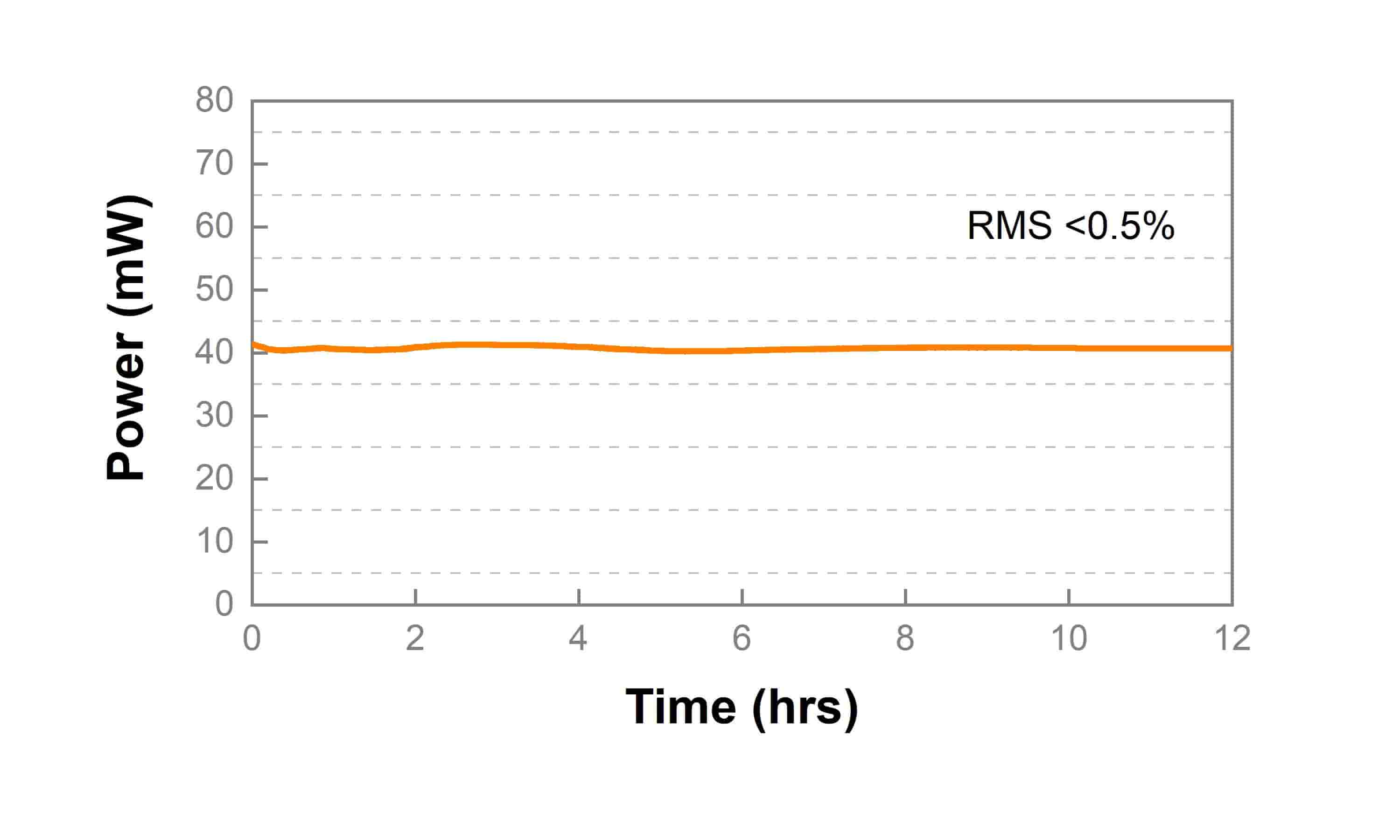

Testing Data

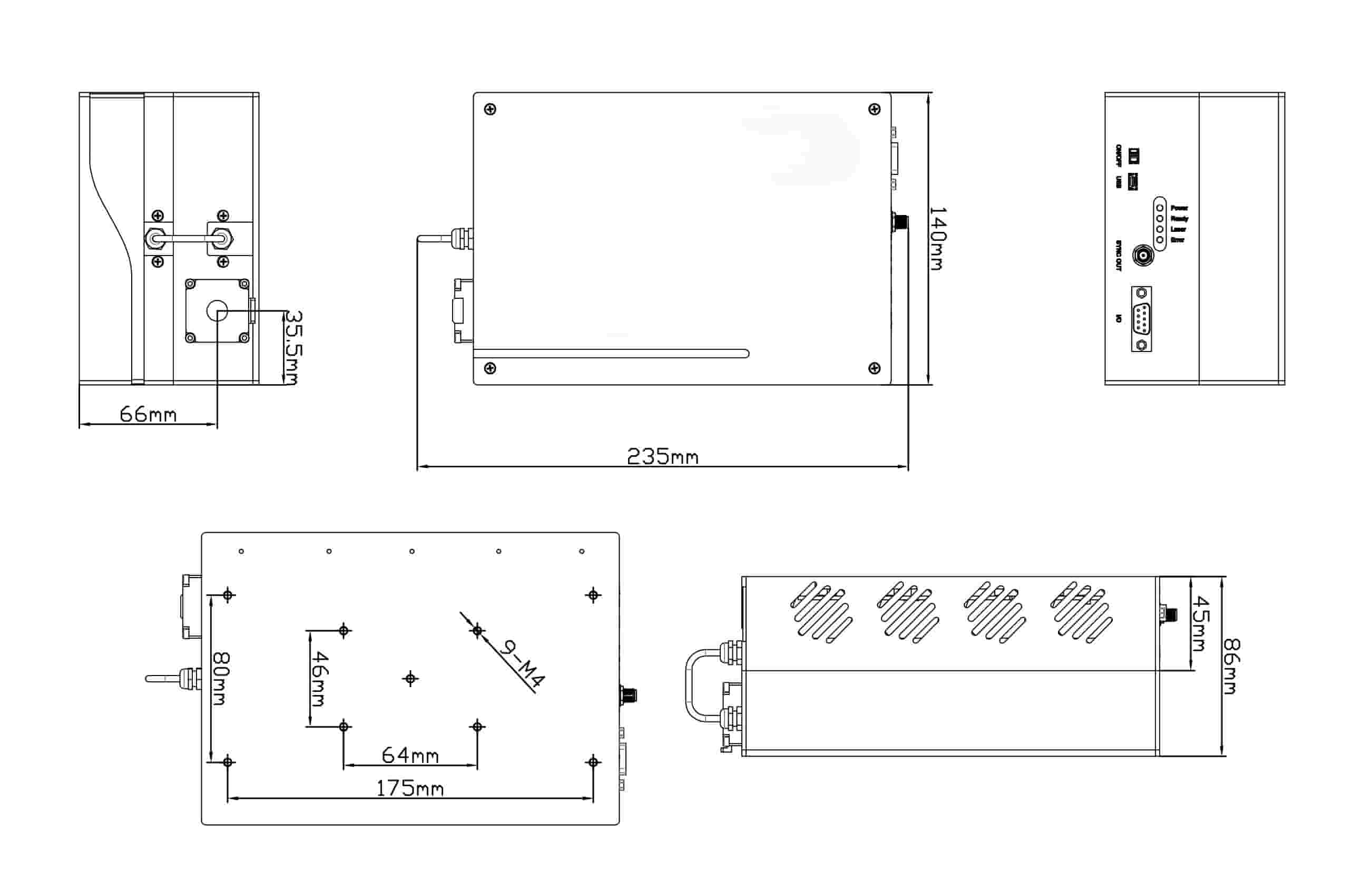

Dimensions

Type	Wavelength Options	Average Power Range	Pulse Width	Repetition Rate	Pulse Energy
266 nm High-performance Picosecond Laser	266 nm	＞100 mW	10-100 ps	20-80 MHz	/
515/532 nm Picosecond Laser	515/532 nm	1-200 mW	10/20/50/100 ps	15-100 MHz	＞0.5 nJ
532 nm High Power Picosecond Laser	532 nm	＞20 mW/ ＞1 W	＜15 ps/ ＜10 ps	20-80 MHz	/
532/1064 nm Dual Output Picosecond Laser	515-532/1030-1064 nm	700 mW/ 1W	＜15 ps	20-50 MHz	/
1030/1064 nm Picosecond Laser	1030/1064 nm	≥90mW	10/20/50/100 ps	15-100 MHz	＞1 nJ
1064 nm High Power Picosecond Laser	1064 nm	＞20 mW/ ＞1 W	＜15 ps	20-50 MHz	/
Dual Mode (CW & Pulse) 1550 nm Picosecond Laser	1550 nm	CW: -48 to -13 dBm Pulse: 1.5 mW	100 ps	1-1250 MHz	/
1560 nm Picosecond Laser	1530-1560 nm	1-120 mW	1/10/50/100 ps	20-100 MHz	＞1 nJ
1970 nm Picosecond Laser	1970 nm	＞4W	＜15 ps	80 MHz	50nJ

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items	Detail	Unit	Remark
Application
Working Wavelength		nm
Linewidth		nm
Output Power		mW
Power Stability		%
Pulse Width		ps
Repetition Rate		MHz
Beam Quality (M²)		/
Polarization Extinction Ratio (PER)		dB

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		LL-NP01-532-10-50-customized Working Wavelength: 532±1 nm, Average Output Power: ＞1W (up to 8W optional) ,Pulse Width: ＜10ps ,Repetition Rate: 50MHz (20-80 MHz optional) ,Power Stability: ≤1% RMS (12 hours@25℃), Beam Quality: M2＜1.2 ,Cooling: Air-cooled		4-6 Weeks	Request for quote
		LL-NP01-532-15-50-20 Working Wavelength: 532±10 nm ,Average Output Power: ＞20mW (up to 8W optional) ,Pulse Width: ＜15ps, Repetition Rate: 50MHz (20-80 MHz optional) ,Power Stability: ≤0.5% RMS (12 hours@25℃), Beam Quality: TEM00, M2＜1.3 ,Cooling: Air-cooled		4-6 Weeks	Request for quote
