Mid-infrared ASE Broadband Light Source（1880-1940nm）

SIMTRUM's mid-infrared ASE broadband light source uses short-wavelength laser pumping thulium-doped optical fiber. The single-mode optical fiber output power can reach up to 2W, and the spectrum covers 1780~2000nm, which is suitable for applications such as laser biology and spectral measurement.

Characteristics

Mid-infrared band
Ultra-wide spectrum
Power adjustable
High stability

Applications

Fiber sensing
Medical imaging
Fiber device testing

Product specifications and Brochures

Product Brochure Link:

Optical Parameters	Unit	Typical Value			Remarks

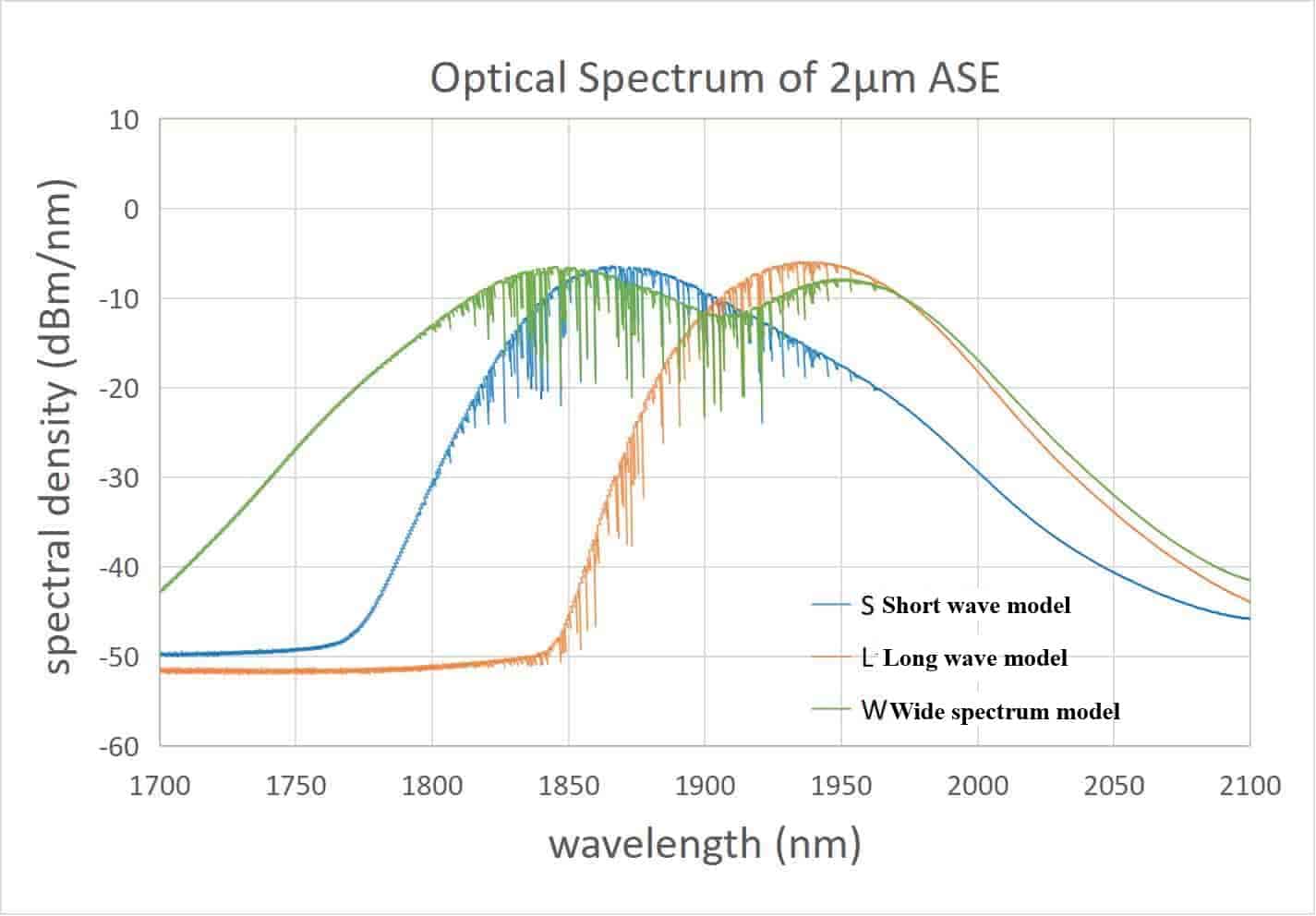

Band Model	-	Short wave model(S)	Long wave model(L)	Wide spectrum model(W)
Average wavelength	nm	1880	1940	1902
Spectral width	nm	113	90	170	@10dB
Optical output power	mW	10	10	10
Customizable optical output power	mW	10/20/50/100/500/2000
Output Isolation	dB	>35

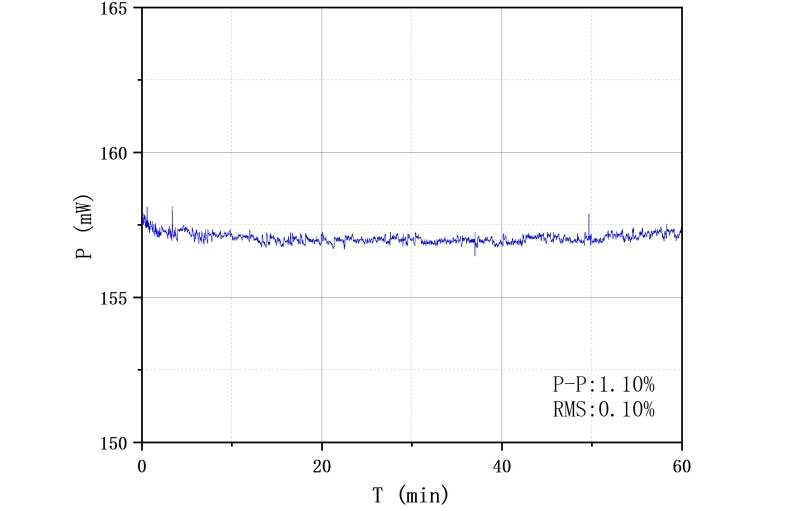

Short-term stability(15min)	dB	≤ ±0.02			Equivalent≤±0.5%
Long-term stability(8h)	dB	≤ ±0.05			Equivalent≤±1.2%
Degree of Polarization	dB	≤ 0.2

General Parameters	Desktop	Module
Control Function	Touch screen/RS232 Serial Communication	RS232 Serial Communication
Remote control Port	DB9 Female	DB9 Female
Power Supply	100~240V AC, <30W	12V3A DC, ≤36W
Dimensions	260(W)×320(D)×120(H)mm	139(W)x235(D)x70(H)mm
Operation Temperature	-5~+35°C
Operation Humidity	0~70%

Ordering Information/Product Code
Series	Spectral Range	Output Power(mW)	Fiber	Packaging
STASE	2000	10/20/50/100/500/2000	SM 1950	M - Module B - Desktop

Type	Spectral Range (nm)	Output Optical Power(mW)
980nm ASE Broadband Light Source	973 - 982	10
Dual-band ASE Broadband Light Source	980 - 1030	50
1030/1064nm ASE Broadband Light Source	1018 - 1080	10/20/30/50/100/500/1000
Near-infrared ASE broadband light source	1000 - 1100	20/50/100
C-Band Broadband ASE Light Source	1528 - 1569	10/20/50/100/200/400/500
C++ Band Boardband ASE Light Source	1524 - 1572	10/20/50/100/200
L-Band Broadband ASE Light Source	1567 - 1603	10/20/50/100/200
C+L Band Boardband ASE Light Source	1524 - 1611	10/20/50/100/200/350
L+/L++ Band ASE Broadband Light Source	1568 - 1626.5	50/100/200
Mid-infrared ASE Broadband Light Source	1880 - 1940	10/20/50/100/500/2000

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
STASE-2000-S-10-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1880nm Spectral range：113nm@10dB Optical output power：10mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-S-20-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1880nm Spectral range：113nm@10dB Optical output power：20mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-S-50-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1880nm Spectral range：113nm@10dB Optical output power：50mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-S-100-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1880nm Spectral range：113nm@10dB Optical output power：100mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-S-500-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1880nm Spectral range：113nm@10dB Optical output power：500mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-S-2000-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1880nm Spectral range：113nm@10dB Optical output power：2000mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-L-10-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1940nm Spectral range：90nm@10dB Optical output power：10mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-L-20-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1940nm Spectral range：90nm@10dB Optical output power：20mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-L-50-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1940nm Spectral range：90nm@10dB Optical output power：50mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-L-100-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1940nm Spectral range：90nm@10dB Optical output power：100mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-L-500-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1940nm Spectral range：90nm@10dB Optical output power：500mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-L-2000-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1940nm Spectral range：90nm@10dB Optical output power：2000mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-W-10-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1902nm Spectral range：170nm@10dB Optical output power：10mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-W-20-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1902nm Spectral range：170nm@10dB Optical output power：20mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-W-50-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1902nm Spectral range：170nm@10dB Optical output power：50mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-W-100-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1902nm Spectral range：170nm@10dB Optical output power：100mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-W-500-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1902nm Spectral range：170nm@10dB Optical output power：500mW Fiber：SM 1950	4-6 Weeks	Request for quote
STASE-2000-W-2000-SM-B Mode：mid-infrared ASE broadband light source Average wavelength：1902nm Spectral range：170nm@10dB Optical output power：2000mW Fiber：SM 1950	4-6 Weeks	Request for quote
