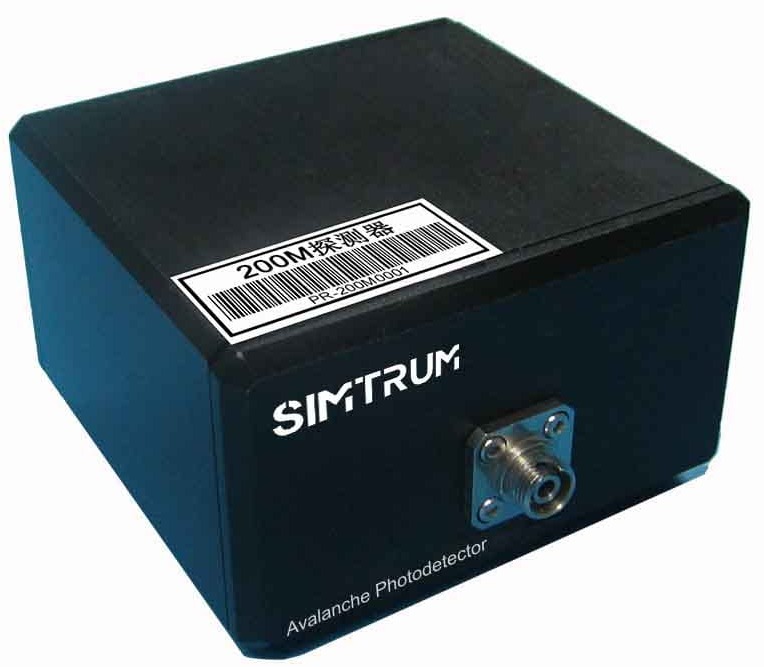

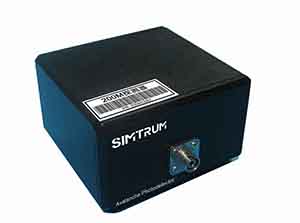

Avalanche Photodetector(400-1700nm)
Overview & Specifications Related Products Order Now！
SIMTRUM's avalanche photoelectric detection module integrates high-speed response avalanche photodiode , low-noise amplifier and high-voltage power supply module, optical fiber or free space coupling, SMA connector output, with high gain, high sensitivity, flat gain and other characteristics, mainly used in weak optical signal reception and optical fiber sensing system and other fields.

Features

  • Spectral range ：Si: 400-1000nm, InGaAs：950-1700nm
  • 3dB bandwidth: ~ 1GHz
  • High gain and sensitivity
  • Optical fiber and free space coupling optional

Applications

  • Low light level signal detection
  • Heterodyne detection
  • Free-space optical communication




Product specifications

General parameters



Model
 Wavelength range
 3dB bandwidth
 Detector diameter
 Gain (V/W)
 NEP pw/Hz1/2
 Saturation power
 Max.Output
 APR-200M-A 950-1700nm DC-200MHz 50µm 180×10^3 2 -17dBm 3.7V
 APR-200M-B 400-1000nm 1mm 900×10^3 0.4 -23dBm 3.7V
 APR-500M-A 950-1700nm DC-500MHz 50µm 15×10^3 6 -7dBm 2.8V
 APR-500M-B 400-1000nm 500µm 80×10^3 1.1 -13dBm 2.8V
 APR-1G-A 950-1700nm 50K-1GHz 50µm 10×10^3 5 -1dBm 2Vpp
 APR-1G-B 400-1000nm 200µm 50×10^3 1.3 -7dBm 2Vpp


Frequency response curve

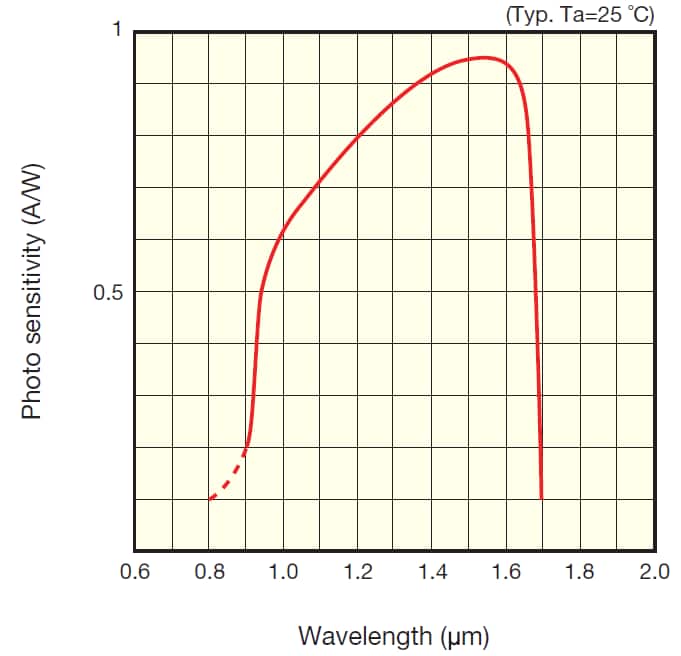

        Wavelength Range：950-1700

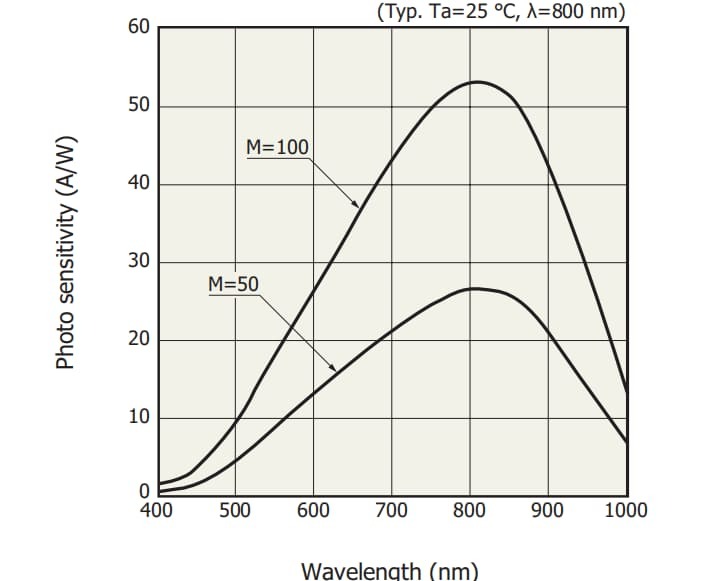

       Wavelength Range：400-1100nm



Limit Condition

Model Min Type Max Unit
  Supply voltage(Vop) DC±12 DC±15 DC±16.5 V
  Max. current(Imax) 180 200 / mA
  Max. input optical power(Pin) / / 10 mW
  Operating Temperature(Top) -10 / 60 ℃
  Storage Temperature(Tst) -40 / 85 ℃
  Storage Humidity(RH) 5 / 90 %



Mechanical Diagram (mm)

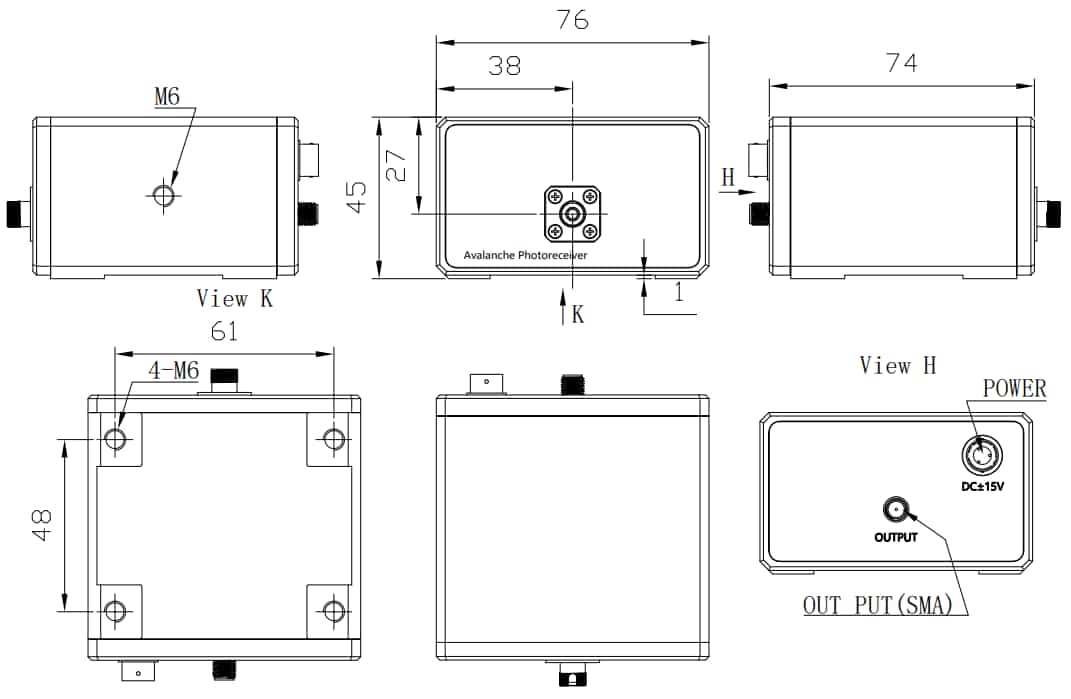

APR-200M-A and APR-500M-A

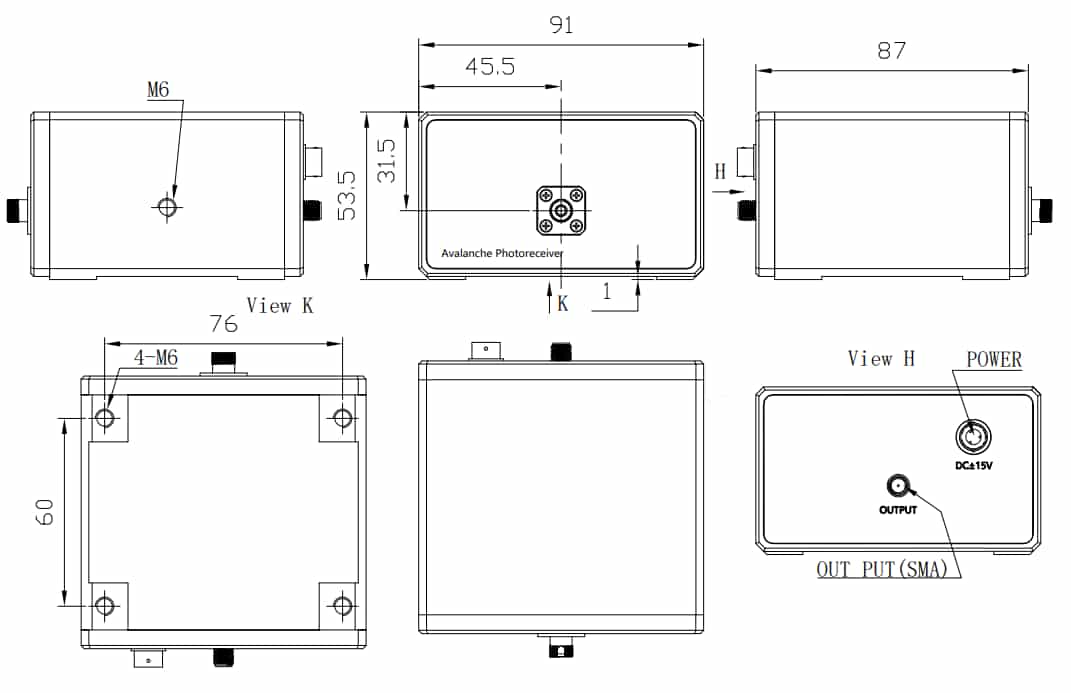

APR-xx-B and APR-1G-A



Port Description
Optical connector FC or free space
RF connector SMA（f）
Output impedance 50Ω
Output coupling DC or AC
Mounting holes M6
Device Dimensions A:76mm×73mm×45mm; B:91mm*87mm*54mm

Photomultiplier Tubes (PMTs)

Model Spectral Response Range Peak Wavelength QE Typ. Effective Area(mm) Cathode Luminous Sensitivity Typ. Anode Sensitivity Typ.
 Photomultiplier Tube Head-On (Tube Only) 290 - 650nm 380 - 500nm 12% -,28% Φ10 - Φ58 40 - 100μA/lm 30 - 2000A/lm
 Photomultiplier Tube Side On(Tube Only) 160 - 900nm / / 8×24 40 - 250μA/lm 400 - 2500A/lm
 Photomultiplier Tube (Module) 160 - 900nm 400nm, 420nm / Φ22 - Φ25 | 8×24 60 - 250μA/lm /
 Microchannel Plate - Photomultiplier (MCP-PMT) 115 - 650nm 250nm, 380nm 30%@410nm, 15%@250nm / 70μA/lm 900A/lm
 Scintillator Probe / / / Φ25×25 - Φ75×75 / /
 β Detector / / / Φ10, Φ25 / /



Visible Single Photon Detector(SPD)

Model
 Wavelength Range
 Timing Resolution
 QE
 Dark Count Rate
  Silicon APD Detection Module 200 -1060nm /  65%@700nm，2%@200nm <200cps to <500cps
  Visible SPD (Peak QE~500nm) 350 - 1000nm <40ps 35%@500nm, 25%@600nm <7Hz  to <250Hz
  Visible SPD (Peak QE~800nm) 350 - 1000nm <200ps
 60%@640nm, 80%@800nm <300Hz to <1000Hz
  Visible Photon Counter OEM
 350 - 900nm 40 -60ps 35%@500nm，4%@900nm <30Hz to <300Hz



Infrared Single Photon Detector(SPD)

Model Wavelength Range Jitter  QE Dark Count Rate
   NIR Single Photon Detector (Dual Channels) 900-1700nm <100ps  / ≤2e-6/gate @10% SPDE
  Super Conducting Nanowire System 780 - 1625nm 20- 40ps >80% over min 100nm <1Hz  to <100Hz
  NIR Single Photon Detector (900-1700) 900 - 1700nm / / ≤2e-6/gate @10% SPDE
  NIR Single Photon Detector Free Running/Gated 900 - 1700nm <150ps up to 35% 0.8 to 6 Khz
  NIR Single Photon Detector Low Dark Count 900 - 1700nm <150ps 25% 50 t0 200 Hz



Photodiode PD (200nm-12um)

Photomultiplier 200-1000nn Photodiode 800-2500nm Cooled Photodiode 1-30um
  DH_3 Multi-Alkali Photomultiplier  (200- 850nm) Ge Photodiode (800-1800nm) MCT12 Dewar-Cooled Photodiode   (2-12µm)
  DH_30   Multi-Alkali Photomultiplier  (200- 850nm) IGA Photodiode (800-1700nm) INSB Dewar-Cooled Photodiode (1-5.5μm)
  DH_30_TE Cooled Multi-Alkali  Photomultiplier (200-900nm) IGA-EX_TE Photodiode (900-1900/2550nm) PBSE_TE Cooled Photodiode (1-5µm)
  DH_50 Cooled Multi-Alkali Photomultiplier (200-930nm) / PBS_TE Cooled Photodiode (1-3µm)
  DH_50 Cooled Multi-Alkali Photomultiplier (200-930nm) / PY Pyroelectric Detector (1-30µm)
  DH_Si Silicon Photodiode (200-1100nm) / /



Microscope CCD Camera (VIS-NIR）

Camera Category Resolution Pixel Size FPS Wavelength Note
   Microscope  TE-Cooling USB3.0 CCD Camera 1.5MP to 12MP 6.45um to 3.1um ~30FPS 380nm - 650nm IR Cut filter
   Microscope  USB3.0 CCD Camera 1.5MP to 12MP 6.45um to 3.1um ~30FPS 380nm - 650nm IR Cut filter



Filters

Indicators
 Single-band > Multi-band bandpass  Long Pass & Short Pass  Notch  Dichroic mirrors
   Transmittance 93 - 99% 95 - 99% 95 - 99% 94 - 98%
   Cut-off Depth / Reflectivity OD6 - 8+ OD6 - 8+ OD6+ Reflectance > 98%
   Spectral range 200 - 3000 nm 200 - 3000 nm 300 - 3000 nm 200 - 3000 nm
   Spectral steepness < 1% < 0.25% < 1% < 2%
   Environmental and physical durability ISO 9022-2-11-03; ISO 9022-2-11-06; MIL-C-48497A 4.5.4.1; ISO 9022-2-12-06; ISO 9211-4-04-08
   Tolerance range 400 degrees  / -200 degrees



  Product

Photodiode Power Sensors 250-2500nm





Single Photon Avalanche Diode Detector Array






We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LA-CQ01-APR-200M-A
LA-CQ01-APR-200M-A，Wavelength range：950-1700 nm，3dB bandwidth：DC-200MHz，Detector diameter：50um，Gain：180×10^3V/W，NEP：2 pw∕Hz^1∕2，Saturation power：-17dBm 		4-6week $800.86
LA-CQ01-APR-200M-B
LA-CQ01-APR-200M-B，Wavelength range：400-1000 nm，3dB bandwidth：DC-200MHz，Detector diameter：1mm，Gain：900×10^3V/W，NEP：0.4 pw∕Hz^1∕2，Saturation power：-23 dBm 		4-6week $800.86
LA-CQ01-APR-500M-A
LA-CQ01-APR-500M-A，Wavelength range：950-1700 nm，3dB bandwidth：DC-500MHz，Detector diameter：50 um，Gain：15×10^3 V/W，NEP：6 pw∕Hz^1∕2，Saturation power：-7dBm 		4-6week $961.04
LA-CQ01-APR-500M-B
LA-CQ01-APR-500M-B，Wavelength range：400-1000 nm，3dB bandwidth：DC-500MHz，Detector diameter：500 um，Gain：80×10^3V/W，NEP：1.1 pw∕Hz^1∕2，Saturation power：-13dBm 		4-6week $961.04
LA-CQ01-APR-1G-A
LA-CQ01-APR-1G-A，Wavelength range：950-1700 nm，3dB bandwidth：50k-1GHz，Detector diameter：50um，Gain：10×10^3V/W，NEP：5 pw∕Hz^1∕2，Saturation power：-1dBm 		4-6week $1121.21
LA-CQ01-APR-1G-B
LA-CQ01-APR-1G-B，Wavelength range：400-1000 nm，3dB bandwidth：50k-1GHz，Detector diameter：200um，Gain：50×10^3V/W，NEP：1.3 pw∕Hz^1∕2，Saturation power：-7 dBm 		4-6week $1121.21

LA-CQ01-APR-1G-B - Parameter

LA-CQ01-APR-1G-A - Parameter

LA-CQ01-APR-500M-B - Parameter

LA-CQ01-APR-500M-A - Parameter

LA-CQ01-APR-200M-B - Parameter

LA-CQ01-APR-200M-A - Parameter

LA-CQ01-APR-1G-B - Download

LA-CQ01-APR-1G-A - Download

LA-CQ01-APR-500M-B - Download

LA-CQ01-APR-500M-A - Download

LA-CQ01-APR-200M-B - Download

LA-CQ01-APR-200M-A - Download
