974nm / 976nm CW Single Mode Fiber Pump Laser

SIMTRUM's 974/976nm single wavelength laser uses a butterfly-shaped semiconductor laser chip with a fiber FBG wavelength lock. Professionally designed drive and temperature control circuits ensure the safe operation of the laser, and stable output power and spectrum. It is suitable as a pump laser source for fiber lasers or fiber amplifiers, and can be provided in desktop or modular packages.

Features

Hight output power
Wavelength locking

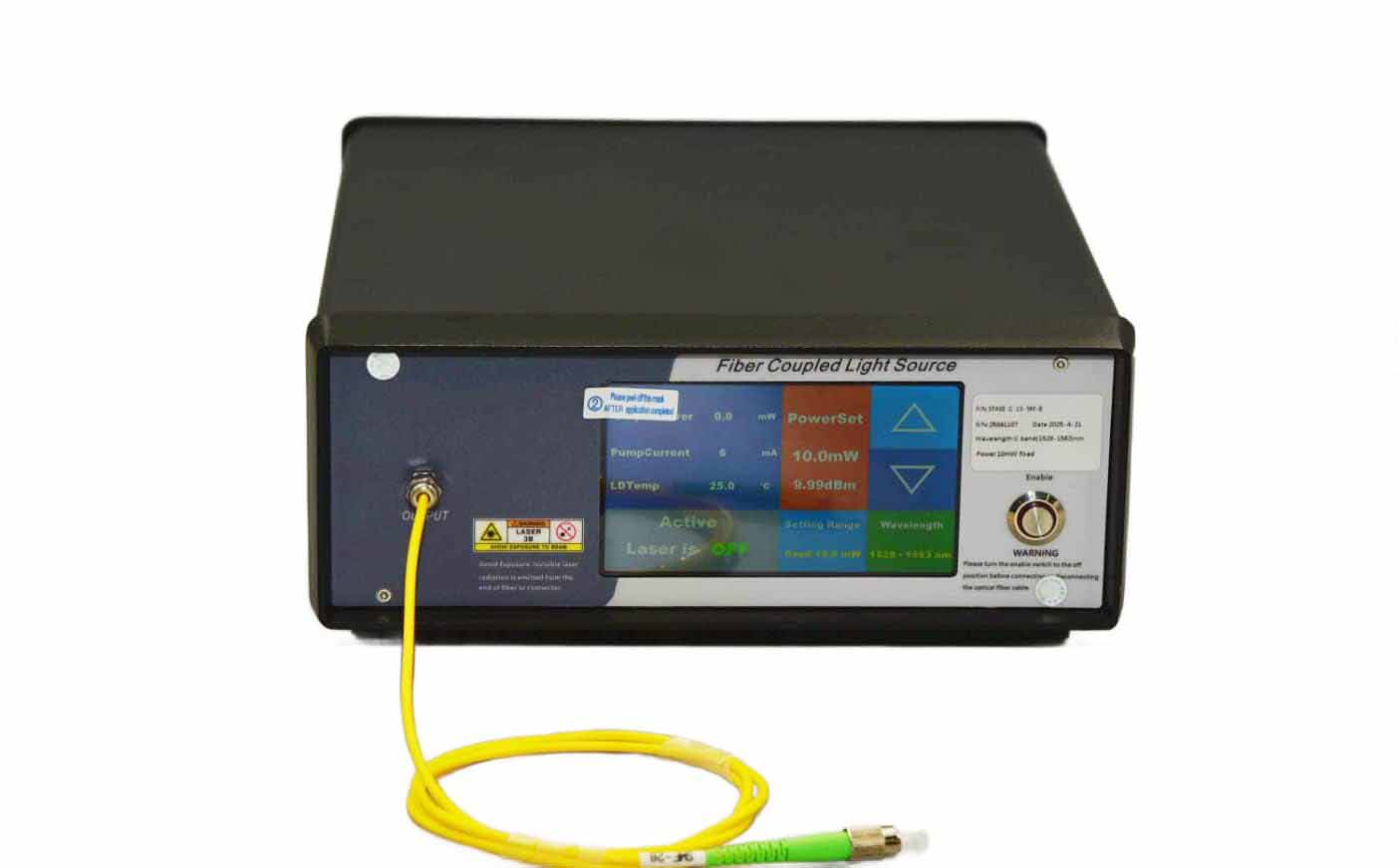

Module or desktop package

Applications

Fiber laser pump
Fiber amplifier pumping
Fiber optic device testing

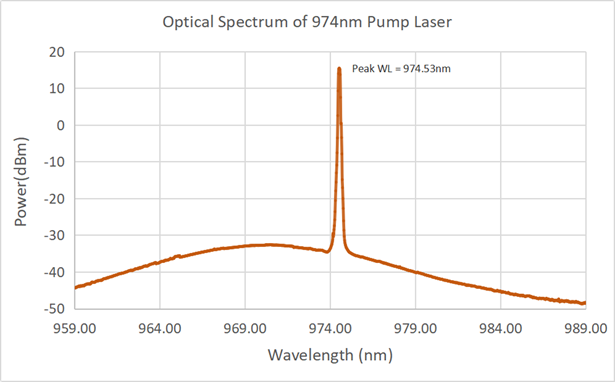

SIMTRUM_Optical_Spectrum_974nm_Pump_Laser

Product specifications and Brochures

Product Brochure Link:

Optical Parameters	Unit	Typical Value		Remarks
Wavelength	nm	974/976
Wavelength Accuracy	nm	±1		FBG wave lock, at 25℃
Wavelength-Temperature Coefficient	nm/℃	0.01
Spectral width	nm	0.2		@-13dB
Laser Mode	-	CW		Continuous light
Output Power	mW	200/400/600/800/1000
Accuracy Working	-	10%~100%
Instability(15min)	dB	≤ ±0.02		Equivalent to ≤±0.5%
Instability(8h)	dB	≤ ±0.05		Equivalent to ≤±1.2%
Polarization State	-	random	Linear polarization
Polarization Extinction Ratio PER	dB	-	>20
Optical Fiber	-	Hi-1060	PM980
Fiber connector	-	FC/APC	FC/APC(slow axis alignment)

General Parameters	Desktop	Module
Control Function	Touch screen/ RS232 serial communication	RS232 serial communication
Remote control Port	DB9 Female	DB9 Female
Power Supply	AC 100~240V , <20W	DC 5V, 15W
Dimensions or Code	B1：255(W)×285(D)×115(H)mm	M15：70(W)×90(D)×15(H)mm M20：125(W)×150(D)×20(H)mm
Working temperature and humidity range	-5~+35°C；0~70%

Ordering Information/ Product Code
Series	Wavelength(nm)	Output Power(mW)	Fiber	Packaging
STFL	974/976	200/400/600/800/1000	SM - HI 1060	M15/M20 – Module
			PM - PM 980	B1 - Desktop

Type	Wavelength	Spectral Linewidth	Output Power
405-940 CW Single Mode Fiber Laser	405-940 nm	-	5/25/30/40/50/80/90mW
793/808/878.6/915/940/976nm CW Multi Mode High Power Fiber Laser	793/808/878.6/915/940/976 nm	0.5/0.7/3/6nm	5/8/10/12/20/25/30W
974/976 CW Single Mode Fiber Pump Laser	974/ 976 nm	-	200 - 1000mW
1030/1064 CW Single Mode Fiber Laser	1064 nm	< 0.1nm	100mW - 10W
1120nm CW Single Mode Fiber Laser	1120nm	≤ 0.1nm	5/10W
1310 CW Single Mode Fiber Laser	1310 nm	≤ 3MHz	10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser	1425/1435/1455/1465/1480 nm	0.2nm	200 - 1000mW
1550 CW Single Mode Fiber Laser	1550 nm	≤0.1/≤0.5/≤1/≤ 3MHz	10mW - 20W
1570 CW Single Mode Fiber Laser	1570/1590 nm	< 0.1nm	10/20/50/100/200/400/500 mW 30/33/35/37/40 dBm
CW&Pulse 1927/1940nm High Power Fiber Laser	1927nm	≤2nm	10-200W
2000 High Power CW Fiber Laser	1900-2000 nm	< 1nm	30/70 W
1940nm High Power QCW Thulium Fiber Laser (CW&Pulse)	1940nm	＜2nm	Max. average 70W Max. peak 700W

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
STFL-976-400-SM-B 974 / 976nm Single Wavelength Fiber Laser, Wavelength 976 nm, Wavelength Accuracy ±1 nm, Output Power 400 mW	4-6 Weeks	$1121.00
STFL-976-600-SM-B 974 / 976nm Single Wavelength Fiber Laser, Wavelength 976 nm, Wavelength Accuracy ±1 nm, Output Power 600 mW	4-6 Weeks	$1314.00
STFL-976-1000-SM-B 974 / 976nm Single Wavelength Fiber Laser, Wavelength 976 nm, Wavelength Accuracy ±1 nm, Output Power 1000 mW	4-6 Weeks	Request for quote
STFL-974-200-SM-B 974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 200 mW	4-6 Weeks	$962.00
STFL-974-300-SM-B 974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 300 mW	4-6 Weeks	$911.00
STFL-974-400-SM-B 974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 400 mW	4-6 Weeks	$1080.00
STFL-974-500-SM-B 974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 500 mW	4-6 Weeks	$1085.00
STFL-974-600-SM-B 974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 600 mW	4-6 Weeks	$1327.00
STFL-974-680-SM-B 974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 680 mW	4-6 Weeks	$1735.00
STFL-974-800-SM-B 974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 800 mW	4-6 Weeks	Request for quote
STFL-974-1000-SM-B 974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 1000 mW	4-6 Weeks	Request for quote
