VUV Light Sources(115-400nm)

Overview Line Source Continuum Source Software Related Products Order Now！

Simtrum's VUV sources are designed to be reliable, compact and maintenance free with an operating life often in excess of 4000 hours.The VUV sources are sealed RF excited sources with a window in an EMI shielded enclosure that mounts to a 2.75 inch or larger CF type flange. The source assembly has an integral RF exciter which is powered by a small wall plug power supply.The Resonance VUV line sources comes in various body styles to add extra flexibility in coupling to your system,including:Standard Type and Re-entrant Type.

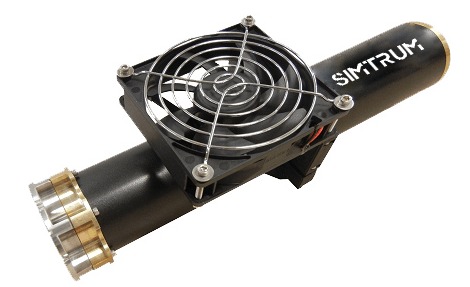

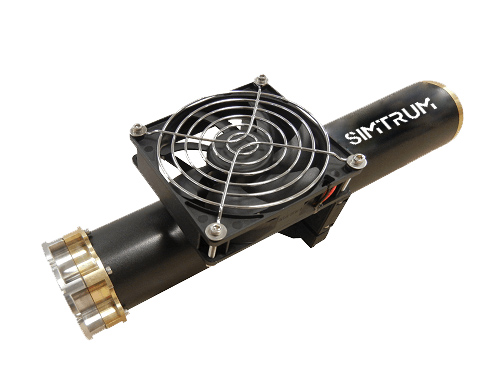

Standard Type-ST

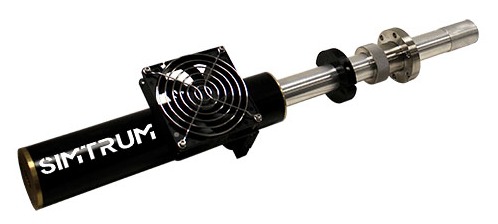

Re-entrant Type-RET

The standard lamp body with a 1”-20 thread for mounting. Also available with an adaptor to mount to any standard CF style flange 2 3/4” or larger.

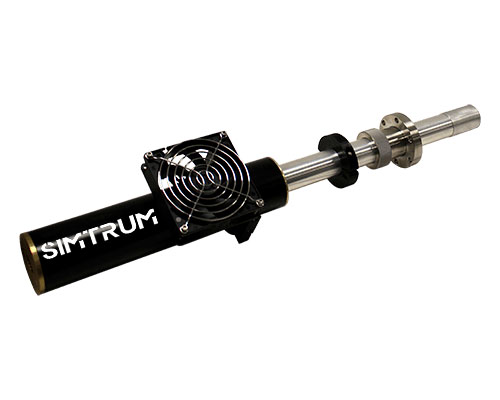

Re-entrant style lamp with a quick disconnect adaptor. Allows the user to move the source for optimal placement within the chamber. Length of tube can be varied.

Application

VUV materials studies
PDP phosphor evaluation
Photochemical cleaning of materials in vacuum
VUV wavelength calibration & optical alignment of syncrotron instrumentation
Photo-ionization for gas and particulate detection
Water vapor detection in vacuum systems
VUV flat fielding of CCD cameras
Orbital solar simulation

Accessories

Short adapter for wide angle output
Lens assembly
Modulator
UV diodes
PSD and Pulse counting
Detector assemblie

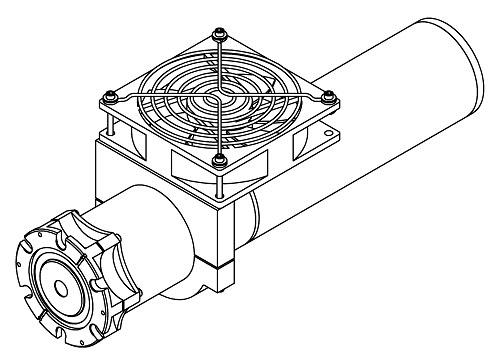

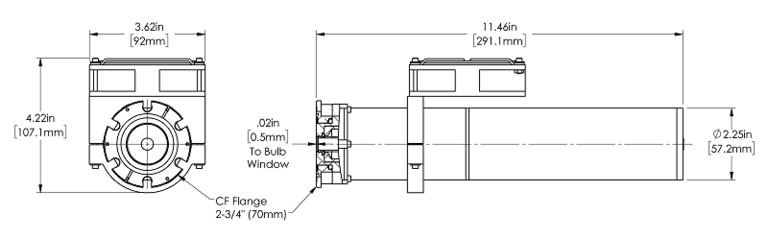

Mechanical Diagram

Specification

Parameter	Min	Avg	Max	Unit
Plasma Cavity	200W RF	30×9	\	Mm ID
Window Material	MgF2			\
Drift	0.5@110V max.	0.2	1	%per hour
Calibration	Absolute intensity determined by traceable NIST Standard
Testing	Test spectrum of entire VUV spectral region performed
Running Life	1500	>4000	\	Hours
Case Temperature	0	\	55	Degree Celcius
Input Voltage (50-60Hz)	100	~0.03mW/str	250	AC Volts
Optional Pulsed Operation	50	~0.2mW/str	400	Hz

Gas Specifications

Model	Principal Wavelegth	Power
LL-RE01-VUV-Kr-L-ST	116.5,123.6nm	~2mW/str
LL-RE01-VUV-Xe-L-ST	129.6,147nm	~3mW/str
LL-RE01-VUV-H-L-ST	121.4nm	~0.04mW/str
LL-RE01-VUV-Kr-L-RET	116.5,123.6nm	~2mW/str
LL-RE01-VUV-Xe-L-RET	129.6,147nm	~3mW/str
LL-RE01-VUV-H-L-RET	121.4nm	~0.04mW/str
LL-RE01-VUV-H*-L-ST	121.6nm	~0.2mW/str
LL-RE01-VUV-O-L-ST	130.2,130.4nm	~0.04mW/str
LL-RE01-VUV-N-L-ST	120nm	~0.04mW/str
LL-RE01-VUV-Cl-L-ST	118.9nm	~0.04mW/str
LL-RE01-VUV-D_He-L-ST	Deuterium-Helium Line Source (MgF2 window including modulation) with NIST traceable Irradiance calibration	/
Note:XXX-RET with Re-Entrant tube that extends 300 mm from the 2.75"Quick Disconnect H* :Lyman Alpha Source

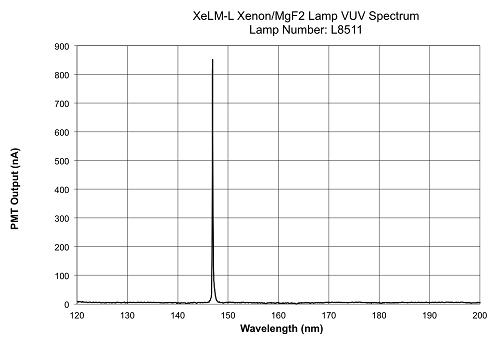

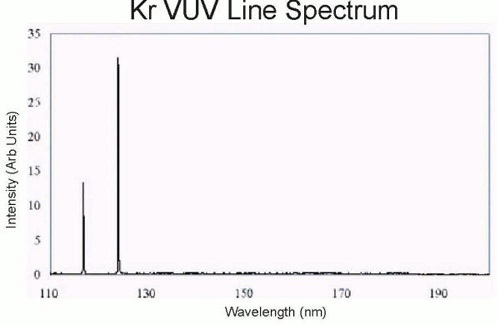

Spectral Curve

Specification

Parameter	Min	Avg	Max	Unit
Plasma Cavity	\	30×9	\	Mm ID
Window Material	MgF2			\
Drift	\	0.2	1	%per hour
Calibration	Absolute intensity determined by traceable NIST Standard
Testing	Test spectrum of entire VUV spectral region performed
Running Life	1500	>4000	\	Hours
Case Temperature	0	\	55	Degree Celcius
Input Voltage (50-60Hz)	100	\	250	AC Volts
Input Power	20			Watts
Optional Pulsed Operation	50	\	400	Hz

Gas Specifications

Model	Continuum Range	Power
LL-RE01-VUV-Ar-C-ST	110-140nm	~0.5 mW/str
LL-RE01-VUV-Ar-C-RET	110-140nm	~0.5 mW/str
LL-RE01-VUV-Kr-C-ST	116-170nm	~6 mW/str
LL-RE01-VUV-Kr-C-RET	116-170nm	~6 mW/str
LL-RE01-VUV-Xe-C-ST	147-190nm	~9 mW/str
LL-RE01-VUV-D2-C-ST	115-400nm	~4 mW/str
LL-RE01-VUV-H2-C-ST	113-400nm	~5 mW/str
LL-RE01-VUV-H2-C-RET	113-400nm	/
Note:XXX-RET with Re-Entrant tube that extends 300 mm from the 2.75"Quick Disconnect

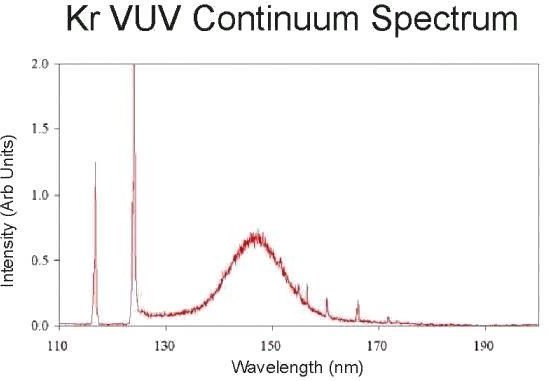

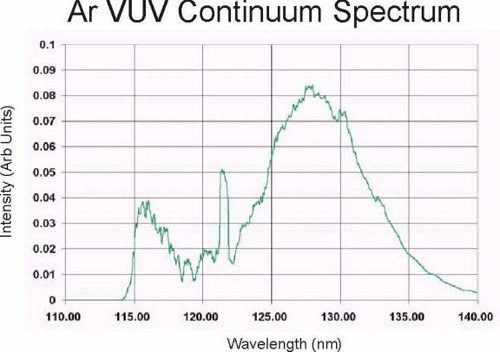

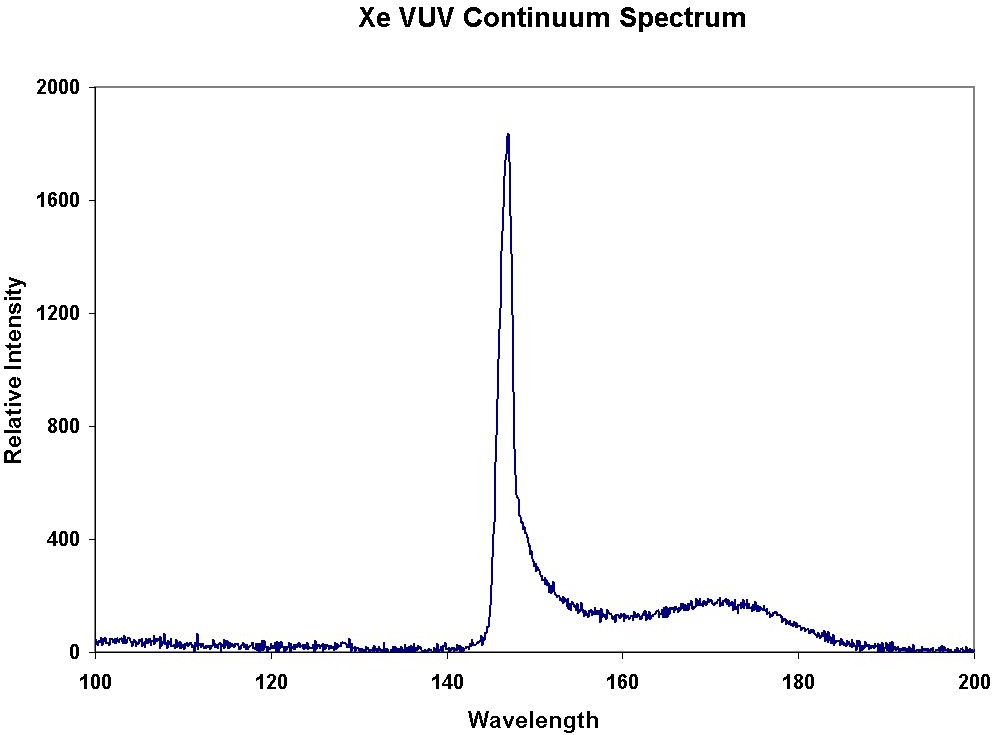

Spectral Curve

The Lamp Interface software is a LabVIEW-based, fully-featured graphical application which allows easy setting and logging of all the lamps’parameters.it provides a chart recorder on which all parameters can be displayed. The user can decide which telemetry data to display and even add. Data may be exported as Excel-friendly *.csv files.

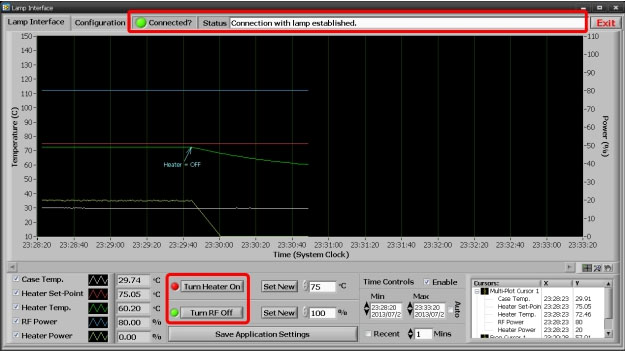

When the Lamp Interface software is run, it will automatically scan for a connected lamp breakout box. Refer to figure 1 below:

Once connected, the Connected LED will change from red to green and the status will indicate the software is now waiting for data. If the lamp is on and connected to the breakout box, telemetry data may then be received and the chart record will start plotting this data.

There are 4 basic parameters that can be set with the Lamp Interface software:
1. Turn heater on or off
2. Change heater set-point temperature
3. Turn RF power on or off
4. Change RF power set-point %

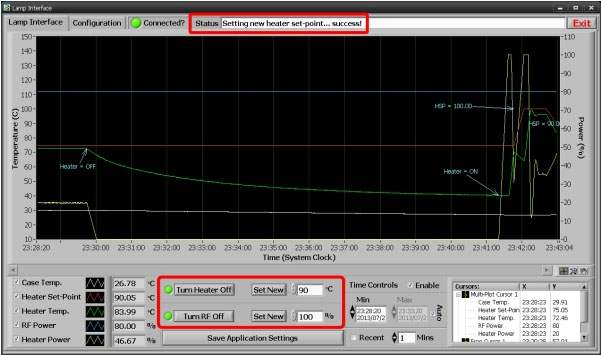

When a parameter is set using the highlighted buttons, the Status indicator will provide feedback on whether the requested change was successful. During the “setting” process, the buttons will turn grey and won’t become interactive again until the process completes.

Microscope Light & Lamp (185 - 5500nm)

Product Type	Wavelength Range	Power output	Color Temperature	Lifespan	Bulb Voltage / Power
Deuterium Light Source	185 - 600 nm	25W-30W (deuterium lamp)	N/A	1,500 hours	Lighting voltage 580 V@20 ℃
Halogen Light Source	360 - 2500 nm	1.7-8.5 mW	2330K - 3000K	2,000 - 10,000 hours	3.5 V - 12 V
Deuterium & Halogen Light Source	360 - 2500 nm	3.0-8.5 mW	2800K - 3000K	2,000 - 10,000 hours	5 - 20 W
Infrared Tungsten Light Source	450 - 5500 nm	7.5 W	1900k	≥ 5,000 hours	N/A
Calibration Light Source - Mercury Argon	253 - 1700 nm	N/A	N/A	≥ 6,000 hours	N/A
Calibration Light Source - Neon	540 - 754 nm	N/A	N/A	N/A	N/A
Calibration Light Source - Xenon Lamp	916 - 1984 nm	3 W	N/A	3,000 hours	N/A
Xenon Light Source	200 - 2000 nm	8.0 mW	N/A	≥ 1,000 hours	50 W

Single Wavelength LED Source(240-980nm）

Link

Un-collimated LED Sources (240-980nm) / 50mW to 900mW Level

Collimated LED Sources (240-980nm) / 15mW to 10,000mW Level

High Power Fiber-Coupled LED (240-980nm) / uW to 40mW Level

Filtered High Power Fiber-Coupled LED (265 - 940nm) / uW to 10mW Level

Lightguide-Coupled LED Source (240-980nm) / 10mW to 2500mW Level

LED Source Controllers

Multi-wavelength LEDs Source (240-980nm)

Link

Fiber-Coupled Multi-Wavelength LED（365nm to 980nm)

Collimated Multi-Wavelength LED（365nm to 980nm)

Wavelength-Switchable LED (340nm to 980nm)

LED Source Controllers

ASE Light Sources (830-2000nm)

Type	Spectral Range (nm)	Output Optical Power(mW)
C-Band Broadband ASE Light Source	1528 - 1563	10/20/50/100/200/400
L-Band Broadband ASE Light Source	1567 - 1603	10/20/50/100
C+L Band Boardband ASE Light Source	1528 - 1603	10/20/50/100/200
C++ Band Boardband ASE Light Source	1524 - 1572	10/20/50/100/200
1060nm Broadband ASE Light Source	1030 - 1080	10/20/30/50
2000nm Broadband ASE Light Source	1850 - 2000	10

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

LL-RE01-VUV-H2-C-RET - Parameter

LL-RE01-VUV-H2-C-ST - Parameter

LL-RE01-VUV-D2-C-ST - Parameter

LL-RE01-VUV-Xe-C-ST - Parameter

LL-RE01-VUV-Kr-C-RET - Parameter

LL-RE01-VUV-Kr-C-ST - Parameter

LL-RE01-VUV-Ar-C-RET - Parameter

LL-RE01-VUV-Ar-C-ST - Parameter

LL-RE01-VUV-D_He-L-ST - Parameter

LL-RE01-VUV-Cl-L-ST - Parameter

LL-RE01-VUV-N-L-ST - Parameter

LL-RE01-VUV-O-L-ST - Parameter

LL-RE01-VUV-H*-L-ST - Parameter

LL-RE01-VUV-H-L-RET - Parameter

LL-RE01-VUV-Xe-L-RET - Parameter

LL-RE01-VUV-Kr-L-RET - Parameter

LL-RE01-VUV-H-L-ST - Parameter

LL-RE01-VUV-Xe-L-ST - Parameter

LL-RE01-VUV-Kr-L-ST - Parameter

LL-RE01-VUV-H2-C-RET - Download

LL-RE01-VUV-H2-C-ST - Download

LL-RE01-VUV-D2-C-ST - Download

LL-RE01-VUV-Xe-C-ST - Download

LL-RE01-VUV-Kr-C-RET - Download

LL-RE01-VUV-Kr-C-ST - Download

LL-RE01-VUV-Ar-C-RET - Download

LL-RE01-VUV-Ar-C-ST - Download

LL-RE01-VUV-D_He-L-ST - Download

LL-RE01-VUV-Cl-L-ST - Download

LL-RE01-VUV-N-L-ST - Download

LL-RE01-VUV-O-L-ST - Download

LL-RE01-VUV-H*-L-ST - Download

LL-RE01-VUV-H-L-RET - Download

LL-RE01-VUV-Xe-L-RET - Download

LL-RE01-VUV-Kr-L-RET - Download

LL-RE01-VUV-H-L-ST - Download

LL-RE01-VUV-Xe-L-ST - Download

LL-RE01-VUV-Kr-L-ST - Download

Accessories

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)

	Availability	Reference Price (USD)
LL-RE01-VUV-Kr-L-ST Peaks：116.5,123.6nm，Power：~2mW/str，Window Material：MgF2，Running life：>4000H	4-6week	$17552.31
LL-RE01-VUV-Xe-L-ST Peaks：129.6,147nm，Power：~3mW/str，Window Material：MgF2，Running life：>4000H	4-6week	$17552.31
LL-RE01-VUV-H-L-ST Peaks：121.4nm，Power：~0.04mW/str，Window Material：MgF2，Running life：>4000H	4-6week	$21418.46
LL-RE01-VUV-Kr-L-RET Peaks：116.5,123.6nm，Power：~2mW/str，Window Material：MgF2，Running life：>4000H	4-6week	$18289.23
LL-RE01-VUV-Xe-L-RET Peaks：129.6,147nm，Power：~3mW/str，Window Material：MgF2，Running life：>4000H	4-6week	$18403.08
LL-RE01-VUV-H-L-RET Peaks：121.4nm，Power：~0.04mW/str，Window Material：MgF2，Running life：>4000H	4-6week	$24763.08
LL-RE01-VUV-H*-L-ST Peaks：121.6nm，Power：~0.2mW/str，Window Material：MgF2，Running life：>4000H	4-6week	$21418.46
LL-RE01-VUV-O-L-ST Peaks：130.2,130.4nm，Power：~0.04mW/str，Window Material：MgF2，Running life：>4000H	4-6week	Request for quote
LL-RE01-VUV-N-L-ST Peaks：120nm，Power：~0.04mW/str，Window Material：MgF2，Running life：>4000H	4-6week	Request for quote
LL-RE01-VUV-Cl-L-ST Peaks：118.9nm，Power：~0.04mW/str，lWindow Material：MgF2，Running life：>4000H	4-6week	Request for quote
LL-RE01-VUV-D_He-L-ST Deuterium-Helium line Source，Window Material：MgF2，Running life：>4000H	4-6week	$23555.38
LL-RE01-VUV-Ar-C-ST Continuum range:110-140nm，Power：~0.5mW/str，Window Material：MgF2，Running life：>4000H	4-6week	$24586.15
LL-RE01-VUV-Ar-C-RET Continuum range:110-140nm，Power：~0.5mW/str，Window Material：MgF2，Running life：>4000H	In Stock	$31233.08
LL-RE01-VUV-Kr-C-ST Continuum range:116-170nm，Power：~6mW/str，Window Material：MgF2，Running life：>4000H	4-6week	$25296.92
LL-RE01-VUV-Kr-C-RET Continuum range:116-170nm，Power：~6mW/str，Window Material：MgF2，Running life：>4000H	4-6week	$31233.08
LL-RE01-VUV-Xe-C-ST Continuum range:147-190nm，Power：~9mW/str，Window Material：MgF2，Running life：>4000H	4-6week	$25296.92
LL-RE01-VUV-D2-C-ST Continuum range:115-400nm，Power：~4mW/str，Window Material：MgF2，Running life：>4000H	4-6week	$22913.85
LL-RE01-VUV-H2-C-ST Continuum range:113-400nm，Power：~5mW/str，Window Material：MgF2，Running life：>4000H	4-6week	$22638.85
LL-RE01-VUV-H2-C-RET Continuum range:113-400nm,Power：~5mW/str,Window Material：MgF2,Running life：>4000H	4-6week	$31223.08
